Invacare® Edge Barrier Limiter (EBL) Ramp

SKU:

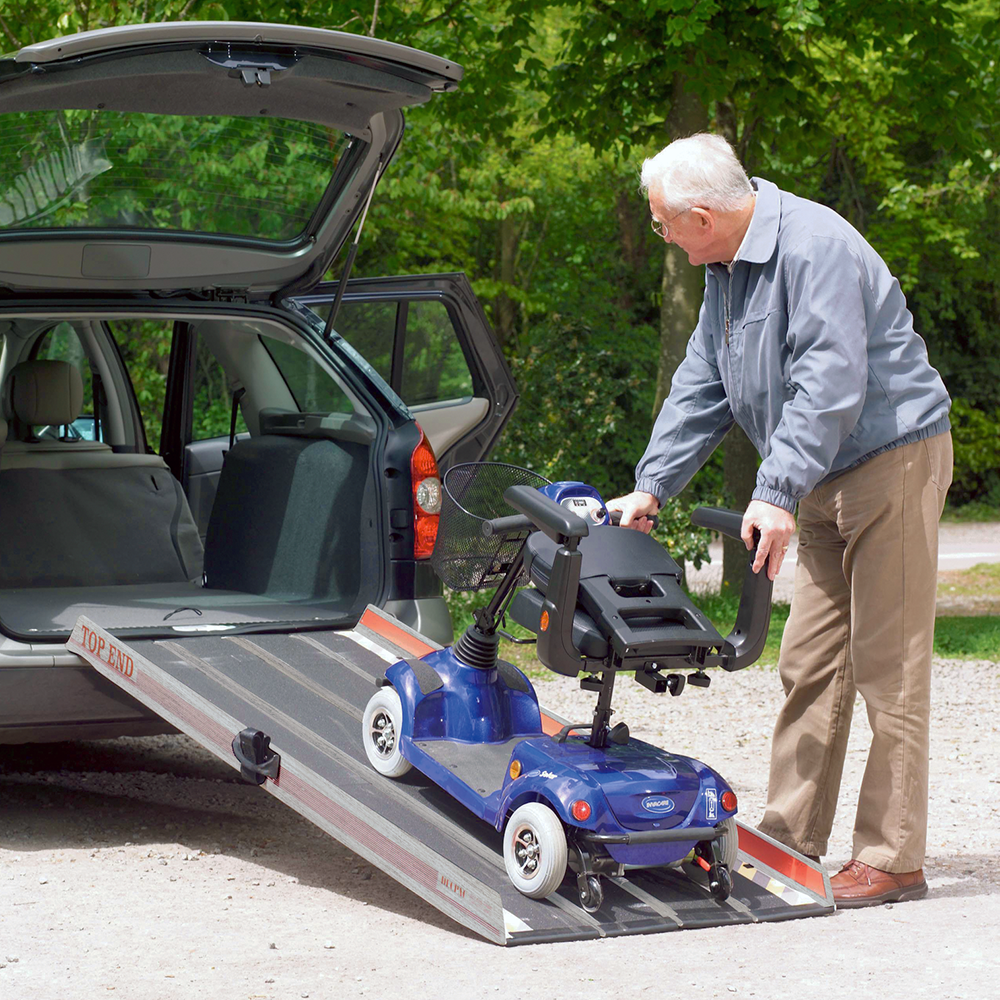

Added security of edge barriers, particularly suited to providing instant access to buses, trains and buildings where a permanent ramp is impractical.

Hire

Buy

Clear

    Request a Quote

    Request product information or a quote by filling out the form below and we will get back to you as soon as possible.

    Features

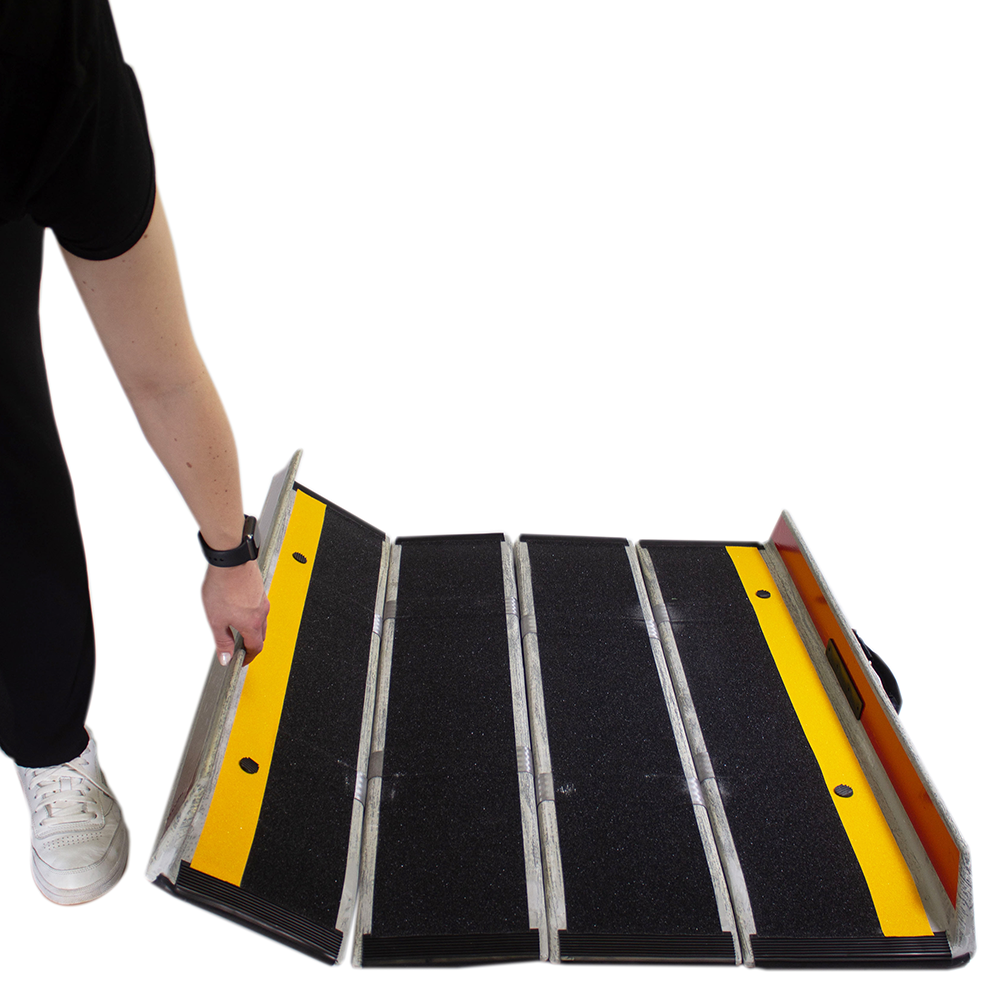

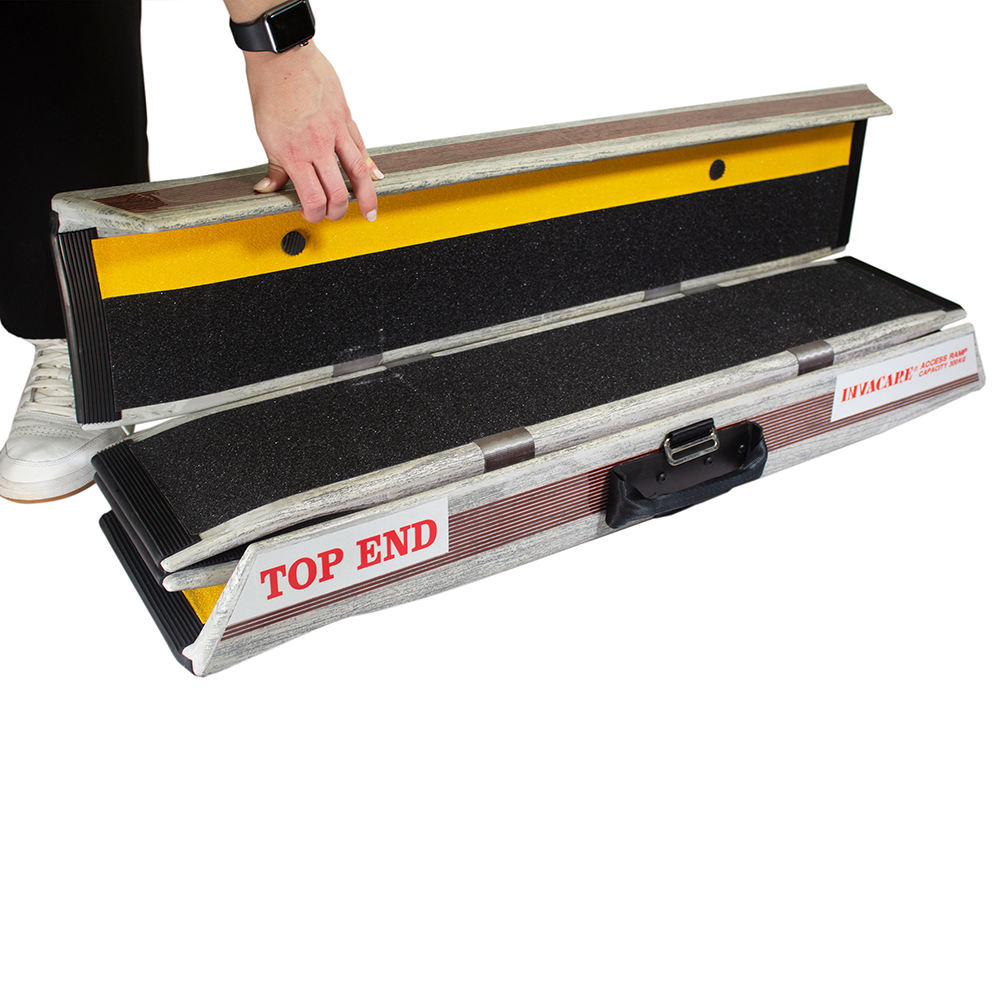

    • Multi-paneled, hinge system folds with a concertina action, allowing it to be folded to a single compact unit
    • Made from a unique combination of uni-directional glass and carbon fibre materials
    • Multi-paneled design held together with a patented hinge system connected by webbing
    • Clearly marked and grip tape covered
    • Fitted with pads at the top and base
    • No assembly required
    • Tested to AS|NZ Standards
    • SWL: 300kg
    Benefits
    • Portable: Allowing for easy storage or transport in any vehicle or home environment
    • Lightweight: Very strong, yet light enough to be portable

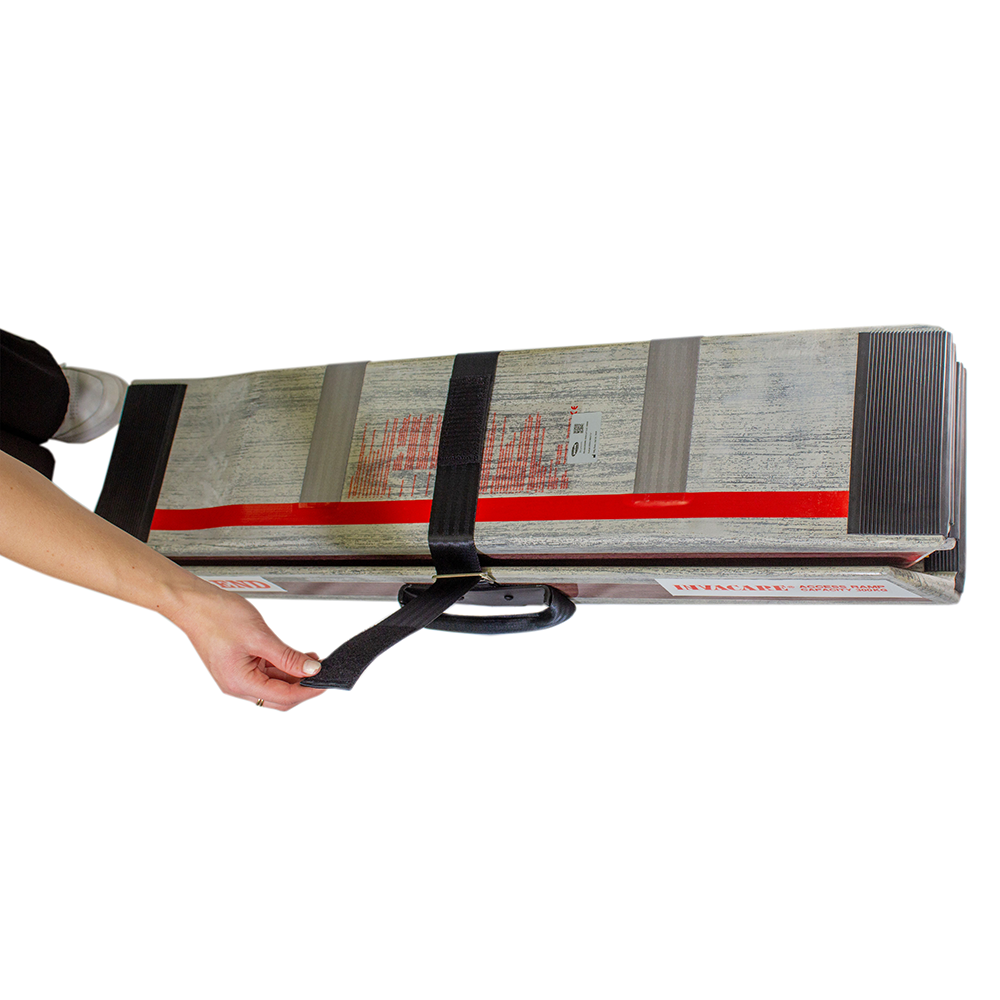

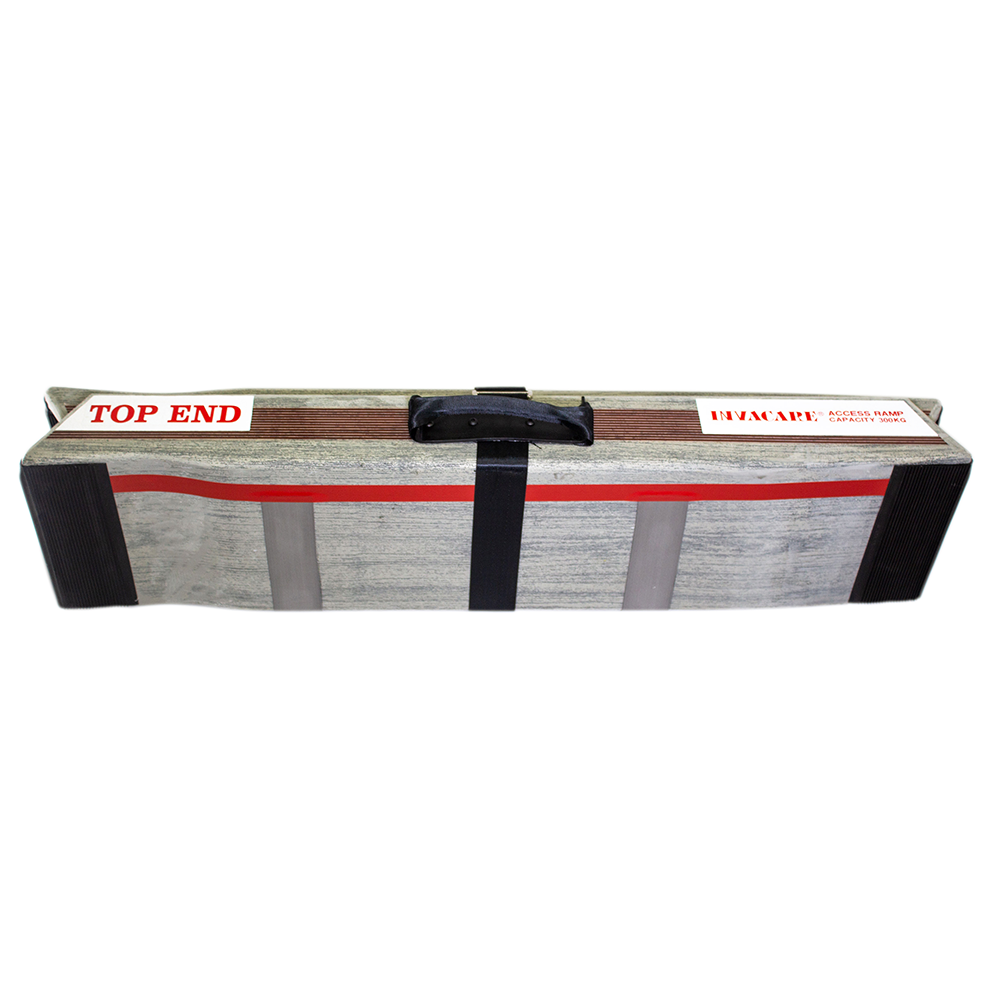

    • Compact: Fold with a concertina action, allowing for a much smaller width when folded
    • Safe: Non-slip surface for all weather conditions
    • Strong: for security and peace of mind
    • Simple to Use: No assembly required, allowing the ramp to be deployed in seconds, and immediately ready for use
    Specifications
    Length (cm) Maximum Height Capacity Ramp Width Ramp Weight
    EBL 090 225mm 750mm 6kg
    EBL 120 300mm 750mm 9.7kg
    EBL 135 337mm 820mm 11.1kg
    EBL 150 375mm 820mm 11.8kg
    EBL 165 412mm 820mm 11.8kg
    EBL 200 500mm 820mm 13.7kg
    EBL 250 625mm 820mm 23kg
    EBL 300 750mm 820mm 27.3kg
    EBL 350 875mm 820mm 31.5kg
    Resources
    Product Brochure
    Ramp Evaluation Guide





    SKU: N/A Categories: , ,
    Description
    Features
    • Multi-paneled, hinge system folds with a concertina action, allowing it to be folded to a single compact unit
    • Made from a unique combination of uni-directional glass and carbon fibre materials
    • Multi-paneled design held together with a patented hinge system connected by webbing
    • Clearly marked and grip tape covered
    • Fitted with pads at the top and base
    • No assembly required
    • Tested to AS|NZ Standards
    • SWL: 300kg
    Benefits
    • Portable: Allowing for easy storage or transport in any vehicle or home environment
    • Lightweight: Very strong, yet light enough to be portable
    • Compact: Fold with a concertina action, allowing for a much smaller width when folded
    • Safe: Non-slip surface for all weather conditions
    • Strong: for security and peace of mind
    • Simple to Use: No assembly required, allowing the ramp to be deployed in seconds, and immediately ready for use
    Specifications
    Length (cm) Maximum Height Capacity Ramp Width Ramp Weight
    EBL 090 225mm 750mm 6kg
    EBL 120 300mm 750mm 9.7kg
    EBL 135 337mm 820mm 11.1kg
    EBL 150 375mm 820mm 11.8kg
    EBL 165 412mm 820mm 11.8kg
    EBL 200 500mm 820mm 13.7kg
    EBL 250 625mm 820mm 23kg
    EBL 300 750mm 820mm 27.3kg
    EBL 350 875mm 820mm 31.5kg
    Resources
    Product Brochure
    Ramp Evaluation Guide





    Additional information
    Weight 20 kg
    Dimensions 196 × 87 × 15 cm
    Purchase Type

    Hire, Buy

    Size

    120m, 135cm, 150cm, 165cm, 200cm, 250 cm, 300cm, 350cm, 90cm
