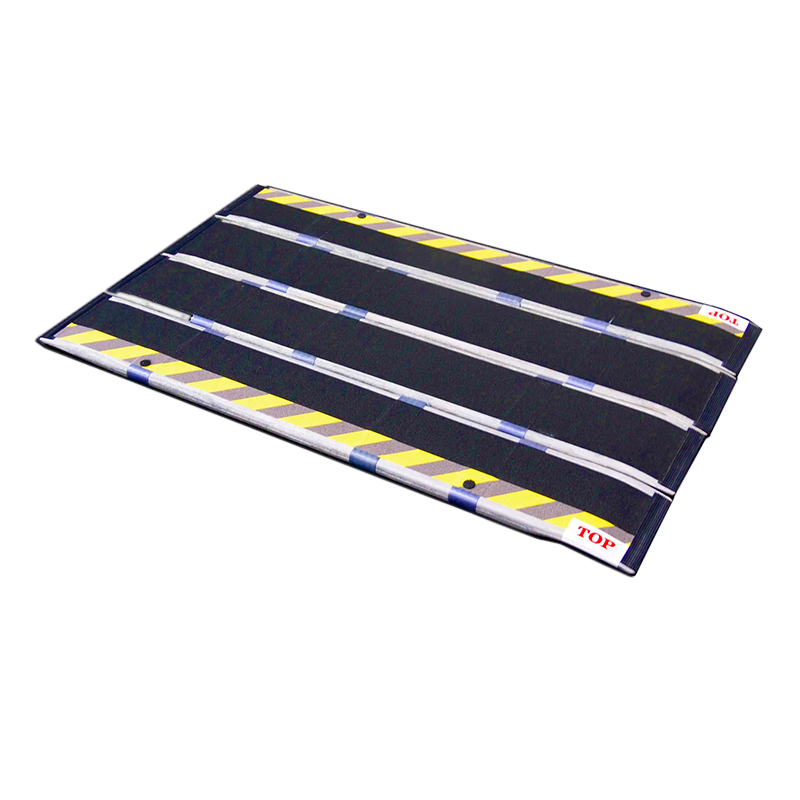

Invacare® Senior Ramp
SKU:Flexible range of ramps to cope with obstacles from 225mm to 870mm in height.
Features and Benefits
- Very strong yet lightweight

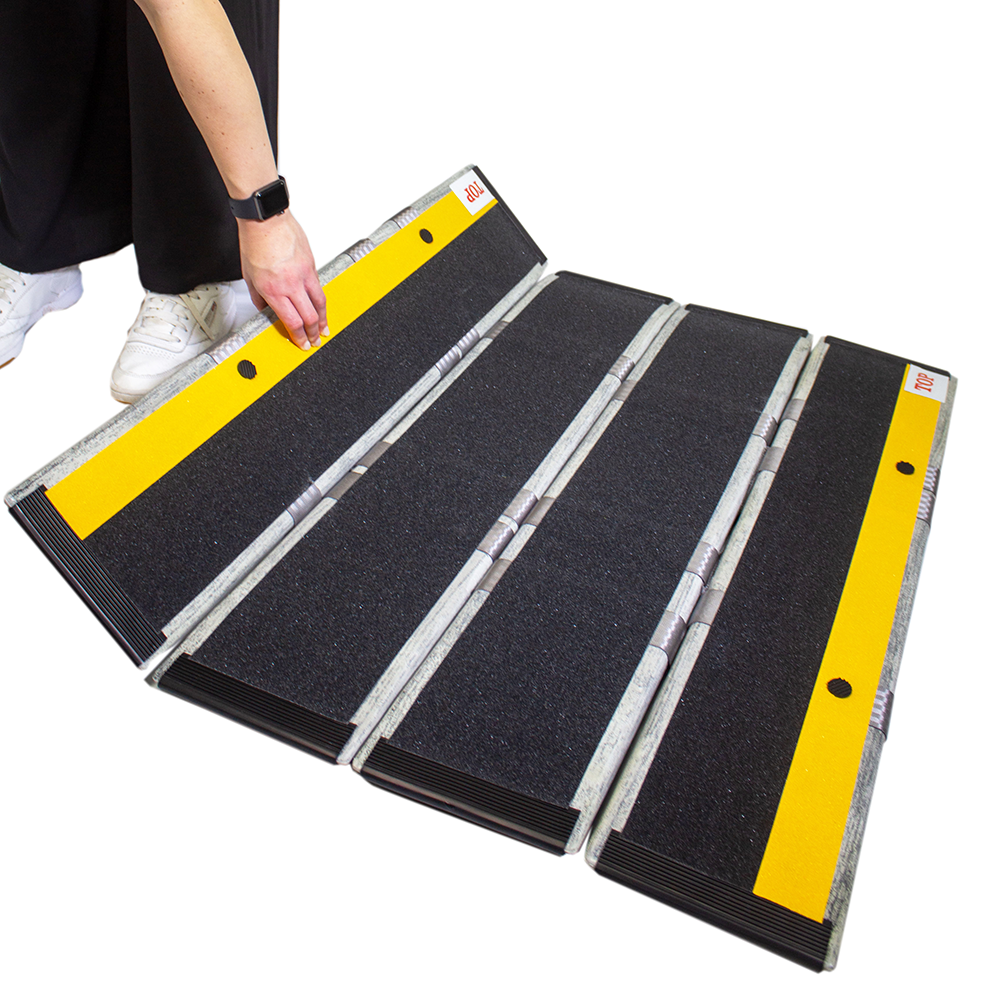

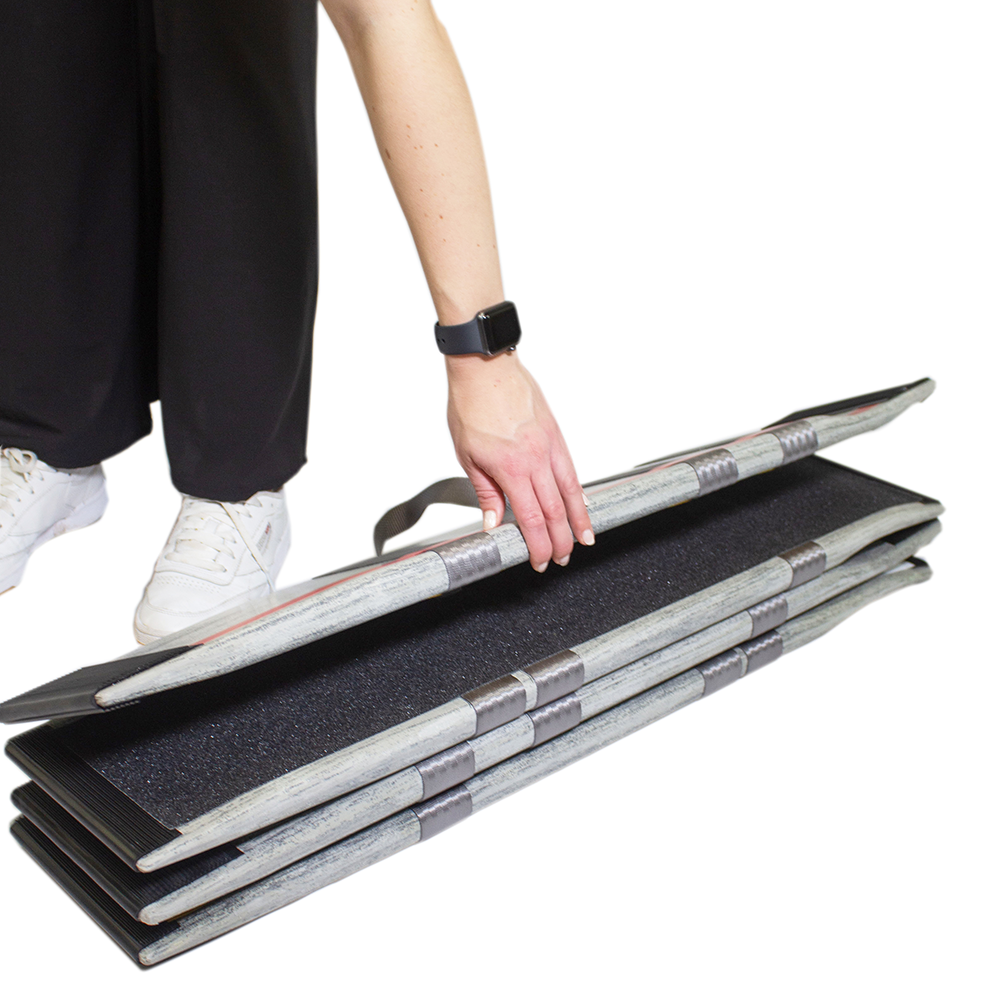

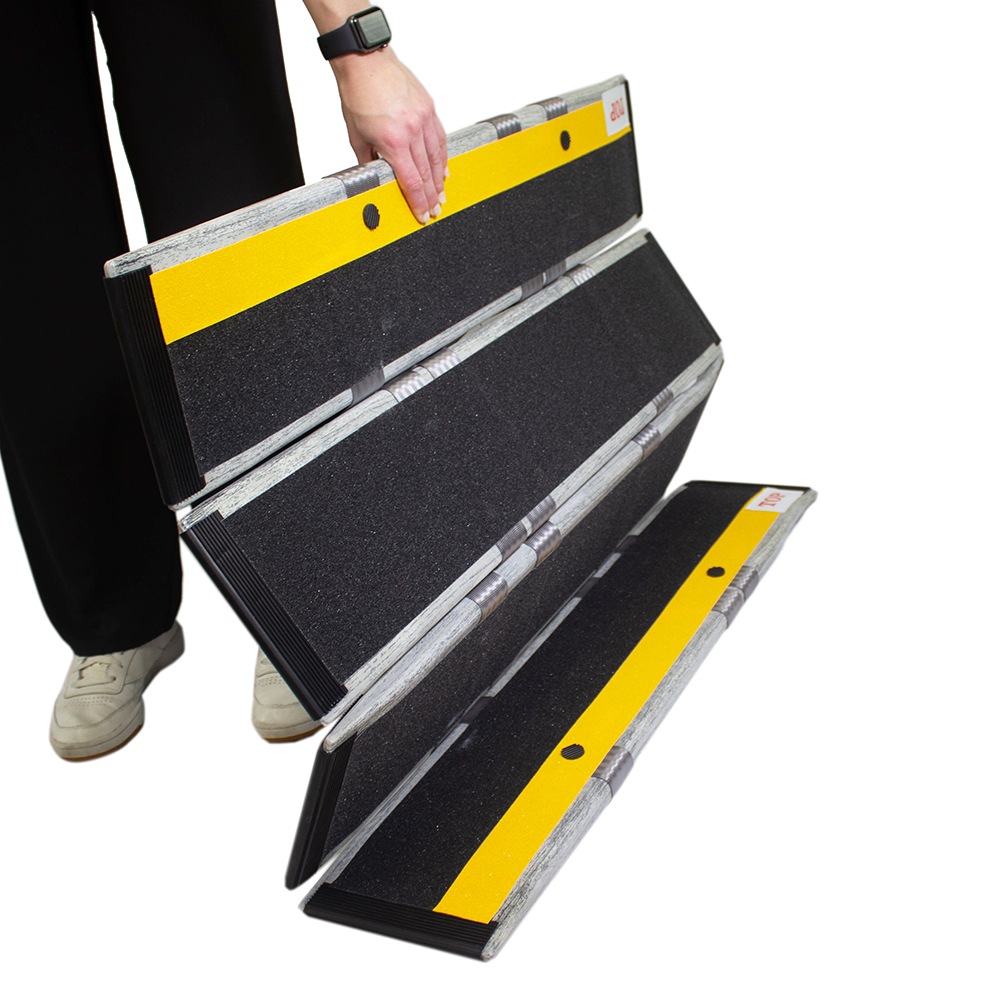

- Folds with a concertina action to a single compact unit for storage and transportation
- Made from a unique combination of uni-directional glass and carbon fibre materials
- Multi panelled design held together with a patented hinge system connected by webbing
- Clearly marked and grip tape covered
- Non slip surface for all weather conditions
- Fitted with pads at the top and base
- No assembly required
- Tested to AS|NZ Standards
- SWL: 300kg
Specifications
| Length (cm) | Maximum Height Capacity | Ramp Width | Ramp Weight |
| Senior 090 | 225mm | 750mm | 4.8kg |
| Senior 120 | 300mm | 750mm | 8.3kg |
| Senior 135 | 337mm | 750mm | 8.5kg |
| Senior 150 | 375mm | 750mm | 9.6kg |
| Senior 165 | 412mm | 750mm | 10.8kg |
| Senior 185 | 462mm | 750mm | 11.2kg |
| Senior 200 | 500mm | 750mm | 11.7kg |
| Senior 250 | 625mm | 750mm | 14.8kg |
| Senior 300 | 750mm | 750mm | 22.1kg |
| Senior 350 | 875mm | 750mm | 24.7kg |
Resources
Product Brochure
Ramp Evaluation Guide
Description
Flexible range of ramps to cope with obstacles from 225mm to 870mm in height.
Features and Benefits
- Very strong yet lightweight
- Folds with a concertina action to a single compact unit for storage and transportation
- Made from a unique combination of uni-directional glass and carbon fibre materials
- Multi panelled design held together with a patented hinge system connected by webbing
- Clearly marked and grip tape covered
- Non slip surface for all weather conditions
- Fitted with pads at the top and base
- No assembly required
- Tested to AS|NZ Standards
- SWL: 300kg
Specifications
| Length (cm) | Maximum Height Capacity | Ramp Width | Ramp Weight |
| Senior 090 | 225mm | 750mm | 4.8kg |
| Senior 120 | 300mm | 750mm | 8.3kg |
| Senior 135 | 337mm | 750mm | 8.5kg |
| Senior 150 | 375mm | 750mm | 9.6kg |
| Senior 165 | 412mm | 750mm | 10.8kg |
| Senior 185 | 462mm | 750mm | 11.2kg |
| Senior 200 | 500mm | 750mm | 11.7kg |
| Senior 250 | 625mm | 750mm | 14.8kg |
| Senior 300 | 750mm | 750mm | 22.1kg |
| Senior 350 | 875mm | 750mm | 24.7kg |
Resources
Product Brochure
Ramp Evaluation Guide
Additional information
| Weight | 20 kg |
|---|---|
| Dimensions | 196 × 87 × 15 cm |
| Purchase Type | Buy |
| Size | 120cm, 135cm, 150cm, 165cm, 185cm, 200cm, 250cm, 300cm, 350cm, 90cm |
