Ki Mobility Focus CR
SKU: FOCUS CRManual tilt and recline wheelchair.
Please complete a Referral Assessment Form and submit with your quote request and you will be contacted by a product specialist.
The Ki Mobility Focus CR is an innovative tilting wheelchair offering many features to enhance the experience of user and carer.
Welcome to Complex Rotation. A system that utilises two control paths with two different centers of rotation to minimise the problems that result from the inevitable misalignment between the center of gravity of the system and a single rotation point.
The Focus CR is the patent pending execution of the Science of Complex Rotation.

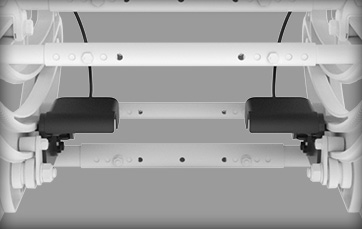

Tilt Mechanism

The Focus CR’s complex rotation is controlled by Ki’s completely redesigned, simpler tilt mechanism. Cable routing is now inside the seat frame and uses a shorter cable. The result? Almost no cable adjustments required. With the most tilt options on the market, allow the carers to choose which option works best for them and the user; single, dual, foot or power.

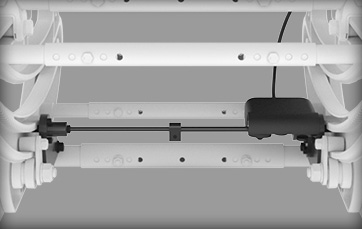

Single Tilt Mechanism

The Focus CR is the only adult tilt-in-space that gives carers the opportunity to tilt with their right or left hand for those who are multitasking.

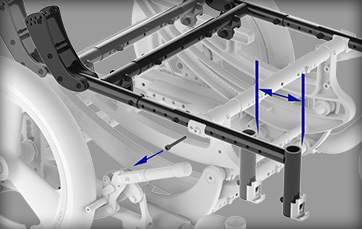

Ease of Adjustment

The Focus CR is also a smart tilt. The chair will tell you how much adjustment is needed so you have more time to focus on the other details of your day. No rotation design has ever been so easy to adjust. Ever. Only 2 bolts are required to make the centre of gravity adjustment. In most cases the adjustment can be done with the seatings ystem and user in position.

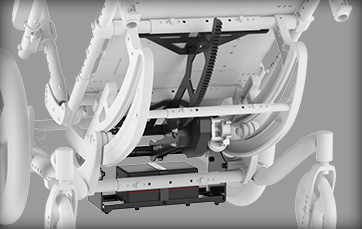

Optional Power Tilt

A smooth and quiet tilt operation controlled by an easy to use toggle that gives the user the power to control their tilt position. This is a great alternative option when a power chair may not be the right choice for an individual.

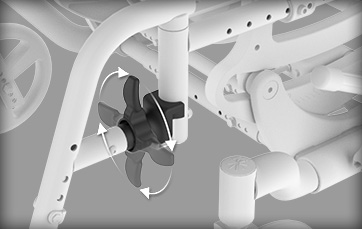

Hanger Options

Because the human body doesn't grow in one inch increments you will appreciate the new 70° and 80° front mount hangers. With expanded foot positioning operations, adjustments in .5″ increments and extended footrest lengths you can count on achieving the positioning the client needs.

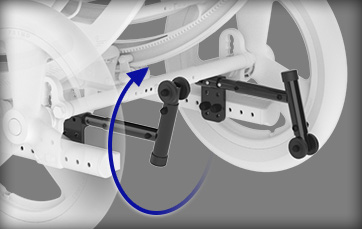

Anti-tippers

Tired of bending down to constantly adjust anti-tippers? Fumbling with the button locks to get them out of the way? This Focus CR’s flip-up spring-loaded design makes it simple. Now just use your foot to easily flip them up and down as required.

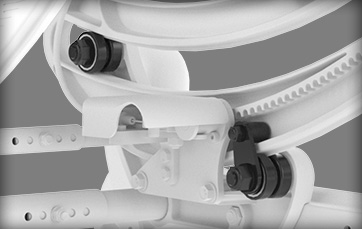

Roller Bearings

Unlike other tilt in space wheelchairs that use plastic rollers or plastic bushings in their tilt mechanisms the Focus CR utilises 8 precision sealed bearings of the highest quality. The ultimate in durability and virtually maintenance free, each bearing comes with a lifetime warranty at no additional charge.

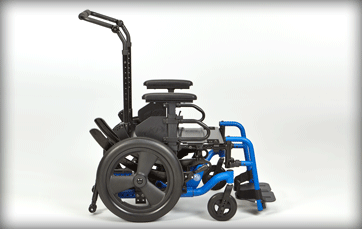

Adjustable Back Height with Folding Handles

Compact knuckle design on the fold down stroller handle allows for a range of motion from 30° to 270°. This ensures the carer always has comfortable hand positioning no matter the angle of tilt the chair is in. It also enables the handles to be folded down flush tight against the back canes so the chair can be transported in tight spaces much easier.
Compliance
ARTG 182896
AS3695.1:2011
Ansi Resna WC-19 Transit Approved
Warranty
Frame: 5 years limited
Specifications
Seat Width | 360mm – 610mm |
Seat Depth | 360mm – 560mm |
Seat Height | 340mm – 520mm |
Tilt Range | -5º – 50º |
Top Frame Tubing Size | 25.4mm |
Transport Weight | 14.97kg |
SWL | 136kg |
Resources
Product Brochure
User Manual
