Merits Explorer Mobility Scooter

SKU:
Streamline design with a sporty feel.



Buy

Clear

    Request a Quote

    Request product information or a quote by filling out the form below and we will get back to you as soon as possible.

    Please upload your completed Rehab Referral Assessment Form (if applicable) and/or completed NDIS Service Agreement Form (if applicable) by clicking a button below (one file per button).

    Features and Benefits
    • Full suspension system with shock absorbers that delivers a smooth comfortable ride

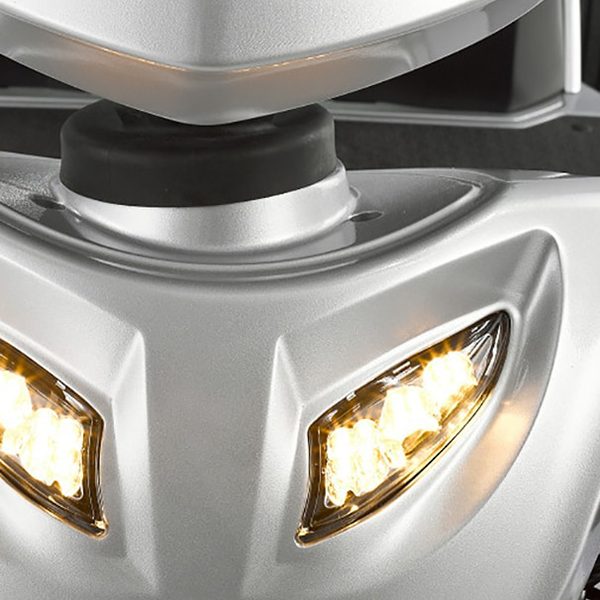

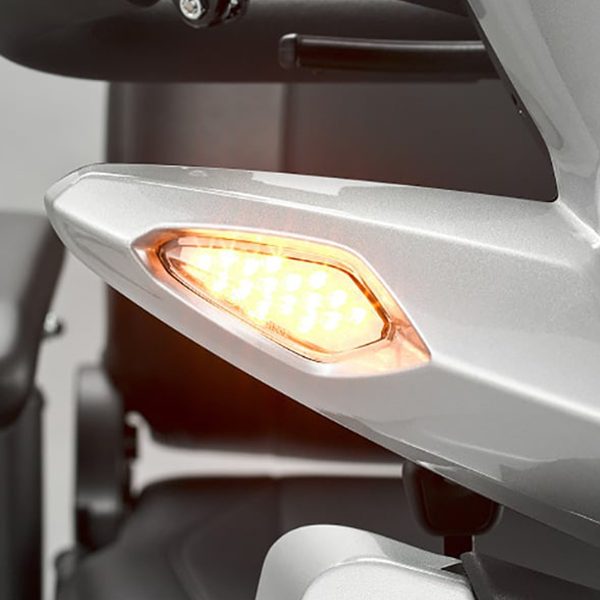

    • Modern LED lighting system delivers a brilliant light with less power consumption

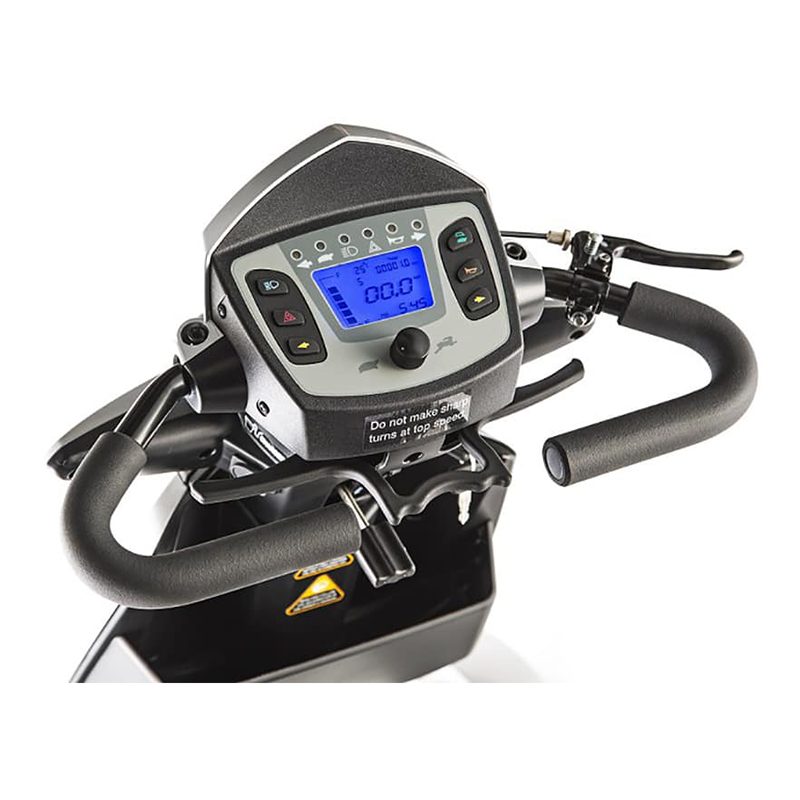

    • Digital LCD dashboard display: time | battery gauge | temperature | maintenance messages | speedometer | odometer

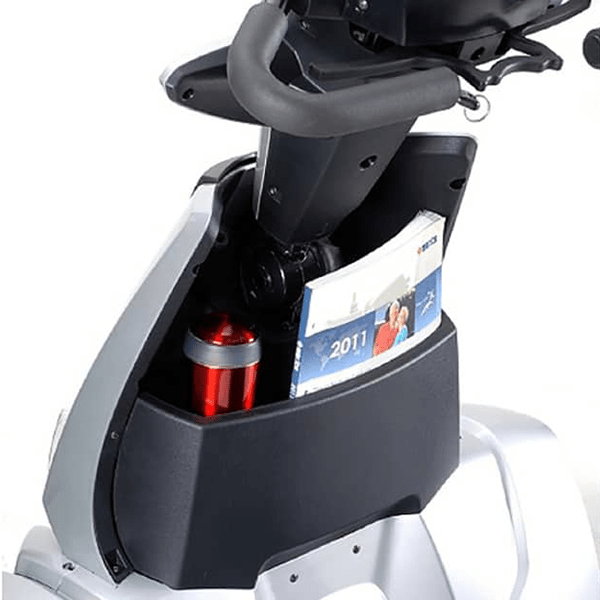

    • Extra storage space beneath tiller
    • Half speed safety switch activates automatically when turning to provide exceptional safety
    • Merits 4PT (4 pole technology) and large controller delivers more power for climbing steep inclines
    • Easy to access 12 volt socket
    Compliance

    ARTG: 352979

    Warranty

    Frame: 7 years | Drive Train Assembly: 2 years limited | Other (refer Warranty Information): 12 months limited

    Specifications
    Total Size | A x B x C
    1300mm x 690mm x 1250mm
    Seat Size | D x E x F
    460mm x 400mm x 510mm
    Seat Height from Ground | G 635mm
    Seat Height from Deck | H 430mm – 480mm
    Wheel Base | I 970mm
    Maximum Speed 10kph – 12kph
    Range 40km – 50km
    Weight with Battery 121kg
    Battery Weight 17kg
    SWL 159kg
    Resources
    Product Brochure
    Warranty Information
    User Manual
    SKU: N/A Categories: ,
    Description
    Features and Benefits
    • Full suspension system with shock absorbers that delivers a smooth comfortable ride
    • Modern LED lighting system delivers a brilliant light with less power consumption
    • Digital LCD dashboard display: time | battery gauge | temperature | maintenance messages | speedometer | odometer
    • Extra storage space beneath tiller
    • Half speed safety switch activates automatically when turning to provide exceptional safety
    • Merits 4PT (4 pole technology) and large controller delivers more power for climbing steep inclines
    • Easy to access 12 volt socket
    Compliance

    ARTG: 352979

    Warranty

    Frame: 7 years | Drive Train Assembly: 2 years limited | Other (refer Warranty Information): 12 months limited

    Specifications
    Total Size | A x B x C
    1300mm x 690mm x 1250mm
    Seat Size | D x E x F
    460mm x 400mm x 510mm
    Seat Height from Ground | G 635mm
    Seat Height from Deck | H 430mm – 480mm
    Wheel Base | I 970mm
    Maximum Speed 10kph – 12kph
    Range 40km – 50km
    Weight with Battery 121kg
    Battery Weight 17kg
    SWL 159kg
    Resources
    Product Brochure
    Warranty Information
    User Manual
    Additional information
    Weight 23.5 kg
    Dimensions 119 × 56 × 50 cm
    Purchase Type

    Buy

    Colour

    Bright Red, Silver, Turquoise
