Oscar M5
SKU:Bariatric lift recline chair.
Documentation
The M5 is the first choice for a premium bariatric lift chair, with its class-leading Australian-made four-motor mechanism, the culmination of years of research, testing, and design and development by the Oscar in-house engineering team.
Reliability was a key focus of the M5 development process, which is why they subjected it to thousands of lift cycles while loading it above its rated capacity at each stage. This has resulted in the most durable bariatric mechanism on the market.
Features and Benefits
- 4 medical-grade electric motors
- Separate control of the backrest, lift, and footrest
- Right side controller
- 24V rechargeable battery backup
- Memory foam seat cushion
- Pocket spring suspension
- 75mm heavy-duty castors
- Armrest covers
- Showwood arms
- Available in a wide range of Versotela fabrics
- A large range of customisations is available to give the user the best fit
Warranty
Frame: 5 years | Electronics, handset, battery: 2 years | Fabric: 2 years, conditional.
This product is made to order. Allow 7 to 8 weeks for delivery. Please specify the upholstery colour and the showwood finish when placing your order.
PLEASE NOTE: Whilst all care has been taken to portray colours accurately, colour variations may occur due to viewing scenarios beyond our control.
Specifications
| Size | 650 | 650/70 | 850 | 850/70 |
| Seat Height | 500mm | 570mm | 500mm | 570mm |
| Seat Width | 650mm | 650mm | 850mm | 850mm |
| Seat Depth | 530mm | 600mm | 530mm | 600mm |
| Seat Depth Min. Adj. | -50mm | -50mm | -50mm | -50mm |
| Seat Depth Max. Adj. | +50mm | +50mm | +50mm | +50mm |
| Backrest Height | 636mm | 647mm | 688mm | 718mm |
| Backrest Height Min. Adj. | -25mm | -25mm | -25mm | -25mm |
| Backrest Height Max. Adj. | +75mm | +75mm | +75mm | +75mm |
| Arm Height | 190mm | 190mm | 190mm | 190mm |
| Arm Height Min. Adj. | -25mm | -25mm | -25mm | -25mm |
| Footrest Length | 950mm | 1020mm | 950mm | 1020mm |
| Footrest SWL | 80kg | 80kg | 80kg | 80kg |

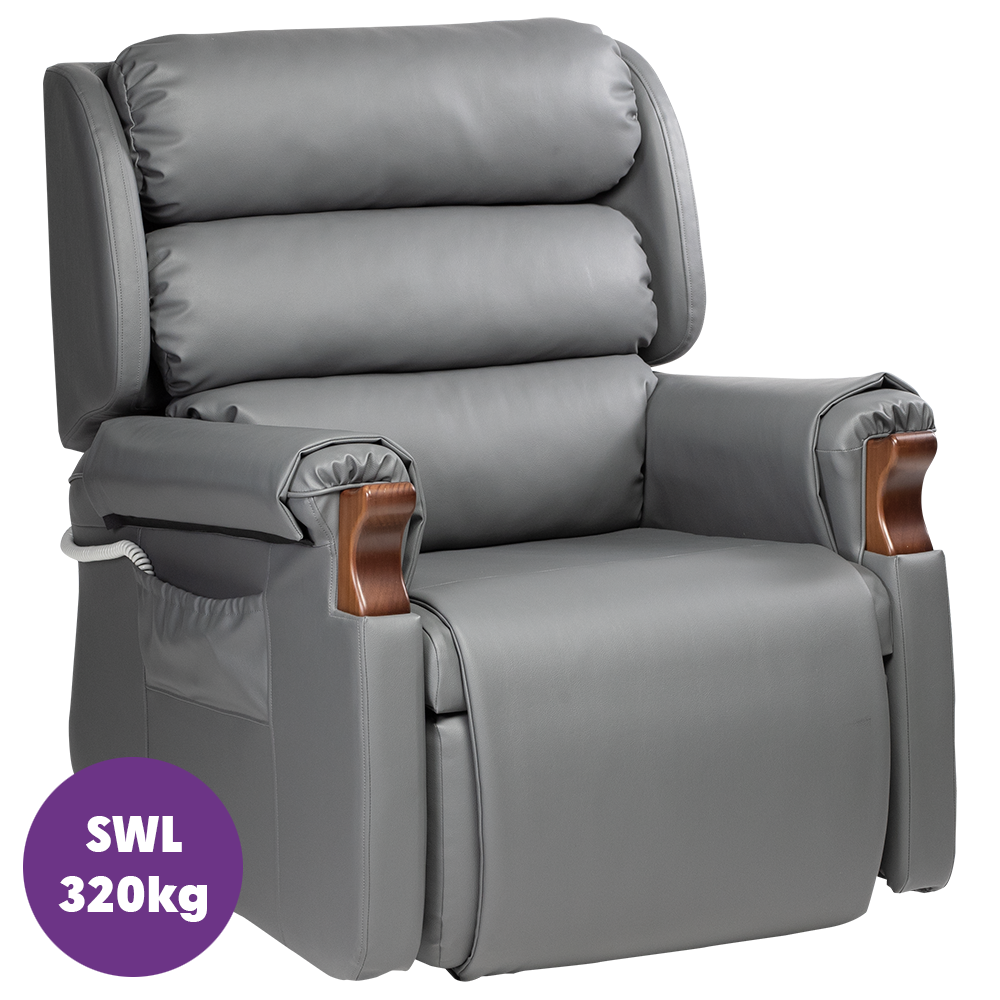

| SWL | 320kg | 320kg | 320kg | 320kg |
Description
The M5 is the first choice for a premium bariatric lift chair, with its class-leading Australian-made four-motor mechanism, the culmination of years of research, testing, and design and development by the Oscar in-house engineering team.
Reliability was a key focus of the M5 development process, which is why they subjected it to thousands of lift cycles while loading it above its rated capacity at each stage. This has resulted in the most durable bariatric mechanism on the market.
Features and Benefits
- 4 medical-grade electric motors
- Separate control of the backrest, lift, and footrest
- Right side controller
- 24V rechargeable battery backup
- Memory foam seat cushion
- Pocket spring suspension
- 75mm heavy-duty castors
- Armrest covers
- Showwood arms
- Available in a wide range of Versotela fabrics
- A large range of customisations is available to give the user the best fit
Warranty
Frame: 5 years | Electronics, handset, battery: 2 years | Fabric: 2 years, conditional.
This product is made to order. Allow 7 to 8 weeks for delivery. Please specify the upholstery colour and the showwood finish when placing your order.
PLEASE NOTE: Whilst all care has been taken to portray colours accurately, colour variations may occur due to viewing scenarios beyond our control.
Specifications
| Size | 650 | 650/70 | 850 | 850/70 |
| Seat Height | 500mm | 570mm | 500mm | 570mm |
| Seat Width | 650mm | 650mm | 850mm | 850mm |
| Seat Depth | 530mm | 600mm | 530mm | 600mm |
| Seat Depth Min. Adj. | -50mm | -50mm | -50mm | -50mm |
| Seat Depth Max. Adj. | +50mm | +50mm | +50mm | +50mm |
| Backrest Height | 636mm | 647mm | 688mm | 718mm |
| Backrest Height Min. Adj. | -25mm | -25mm | -25mm | -25mm |
| Backrest Height Max. Adj. | +75mm | +75mm | +75mm | +75mm |
| Arm Height | 190mm | 190mm | 190mm | 190mm |
| Arm Height Min. Adj. | -25mm | -25mm | -25mm | -25mm |
| Footrest Length | 950mm | 1020mm | 950mm | 1020mm |
| Footrest SWL | 80kg | 80kg | 80kg | 80kg |
| SWL | 320kg | 320kg | 320kg | 320kg |
Additional information
| Weight | 150 kg |
|---|---|
| Dimensions | 100 × 100 × 200 cm |
| Purchase Type | Buy |
| Size | 650, 650/70, 850, 850/70 |
| Upholstery | VersoTela Fabric, VersoTela Leather |
