Ottobock Start M2 Hemi
SKU: 480F74=4_AA04_CFully configurable lightweight wheelchair.
Please complete a Referral Assessment Form and submit with your quote request and you will be contacted by a product specialist.

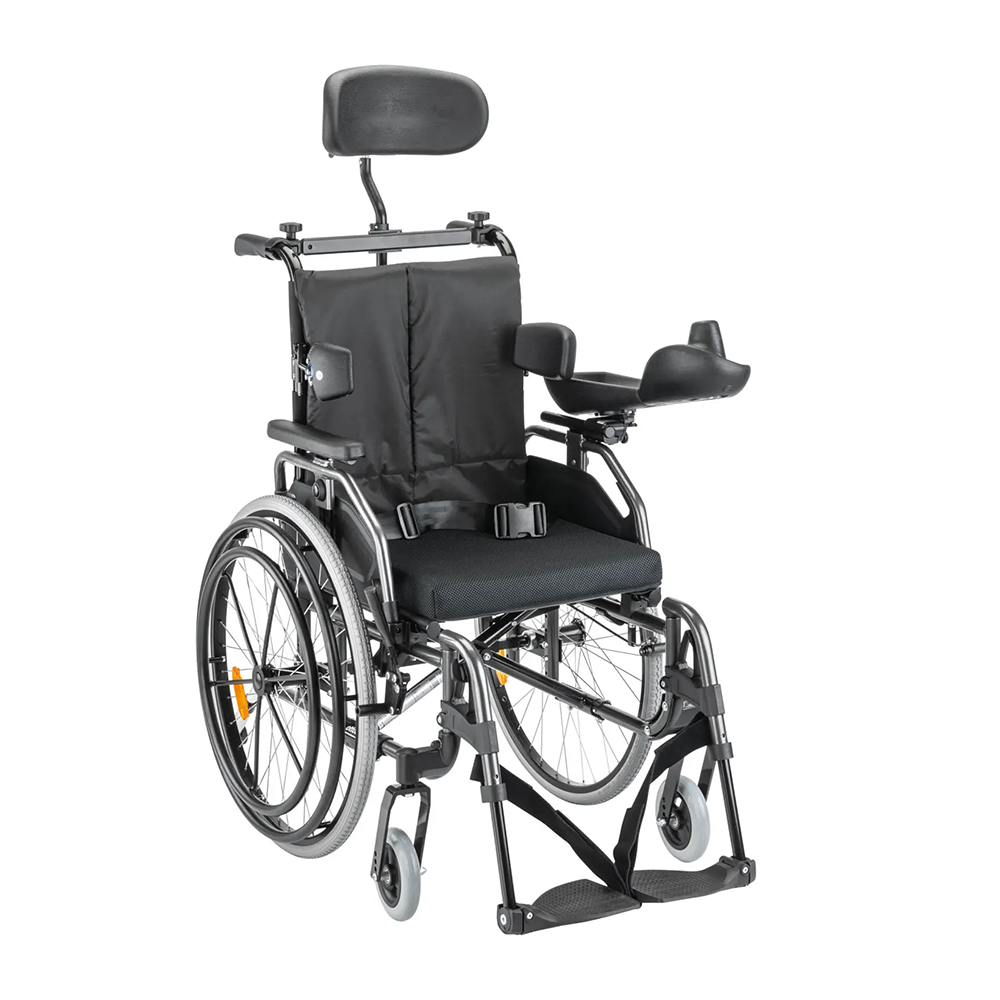

The Start M2 is a fully configurable, high quality wheelchair model. This model offers the maximum number of combination possibilities with regard to dimensions, colours and adjustments which makes it possible to provide even large and very large users with an optimal device. Drum brakes are also available options, as are elevating footrests or amputation legrests. The Start M2 also has an adaptive component. The rear wheel adapter allows you to adjust the wheelchair precisely to the user’s needs.
There are many options available with the new Start M2 for the fitting of stroke patients with hemiplegia and cerebral palsy patients. The Start M2 is just the right choice for custom fittings in the lightweight segment.
Features and Benefits
- Fully configurable lightweight wheelchair
- Patented tool free quick seat depth adjustment (up to 50 mm)
- Very low weight with full Ottobock quality
- Antibacterial push handles
- Excellent component compatibility
- New adjustable economy back upholstery
- Larger centre of gravity adjustment range
- Larger selection of seat depths including for people with a height over 2m
- Larger selection of seat widths
- More options for height adjustment and seat tilt
- Wider foot space for hemiplegics, which allows “foot propelling”
- New one hand drive for hemiplegics
- Numerous updated and improved accessories
- Two different frame lengths for optimal seat depth adjustment
- Side panel with armrest, height can be adjusted (without tools) or set (with tools), adjustable depth
Specifications
Seat Width | 380mm | 405mm | 430mm | 455mm | 480mm | 505mm |
Seat Depth | Frame Size 1 | 405mm | 430mm | 455mm |
Seat Depth | Frame Size 2 | 455mm | 480mm | 505mm |
Seat Height | Anterior | 380mm – 510mm |
Seat Height | Posterior | 380mm – 510mm |
Back Height | 400mm | 425mm | 450mm | 475mm |
Lower Leg Length | 250mm – 470mm (continuously adjustable) |
Seat Angle | Selectable |
Transport Weight | >9.6kg |
Total Weight | >14.7kg |
SWL | 130kg |
Resources
Product Brochure
Please complete a Referral Assessment Form and submit with your quote request and you will be contacted by a product specialist.
The Start M2 is a fully configurable, high quality wheelchair model. This model offers the maximum number of combination possibilities with regard to dimensions, colours and adjustments which makes it possible to provide even large and very large users with an optimal device. Drum brakes are also available options, as are elevating footrests or amputation legrests. The Start M2 also has an adaptive component. The rear wheel adapter allows you to adjust the wheelchair precisely to the user’s needs.
There are many options available with the new Start M2 for the fitting of stroke patients with hemiplegia and cerebral palsy patients. The Start M2 is just the right choice for custom fittings in the lightweight segment.
Features and Benefits
- Fully configurable lightweight wheelchair
- Patented tool free quick seat depth adjustment (up to 50 mm)
- Very low weight with full Ottobock quality
- Antibacterial push handles
- Excellent component compatibility
- New adjustable economy back upholstery
- Larger centre of gravity adjustment range
- Larger selection of seat depths including for people with a height over 2m
- Larger selection of seat widths
- More options for height adjustment and seat tilt
- Wider foot space for hemiplegics, which allows “foot propelling”
- New one hand drive for hemiplegics
- Numerous updated and improved accessories
- Two different frame lengths for optimal seat depth adjustment
- Side panel with armrest, height can be adjusted (without tools) or set (with tools), adjustable depth
Specifications
Seat Width | 380mm | 405mm | 430mm | 455mm | 480mm | 505mm |
Seat Depth | Frame Size 1 | 405mm | 430mm | 455mm |
Seat Depth | Frame Size 2 | 455mm | 480mm | 505mm |
Seat Height | Anterior | 380mm – 510mm |
Seat Height | Posterior | 380mm – 510mm |
Back Height | 400mm | 425mm | 450mm | 475mm |
Lower Leg Length | 250mm – 470mm (continuously adjustable) |
Seat Angle | Selectable |
Transport Weight | >9.6kg |
Total Weight | >14.7kg |
SWL | 130kg |
Resources
Product Brochure
Weight | 15 kg |
---|---|
Dimensions | 50 × 50 × 80 cm |
Purchase Type | Buy |
