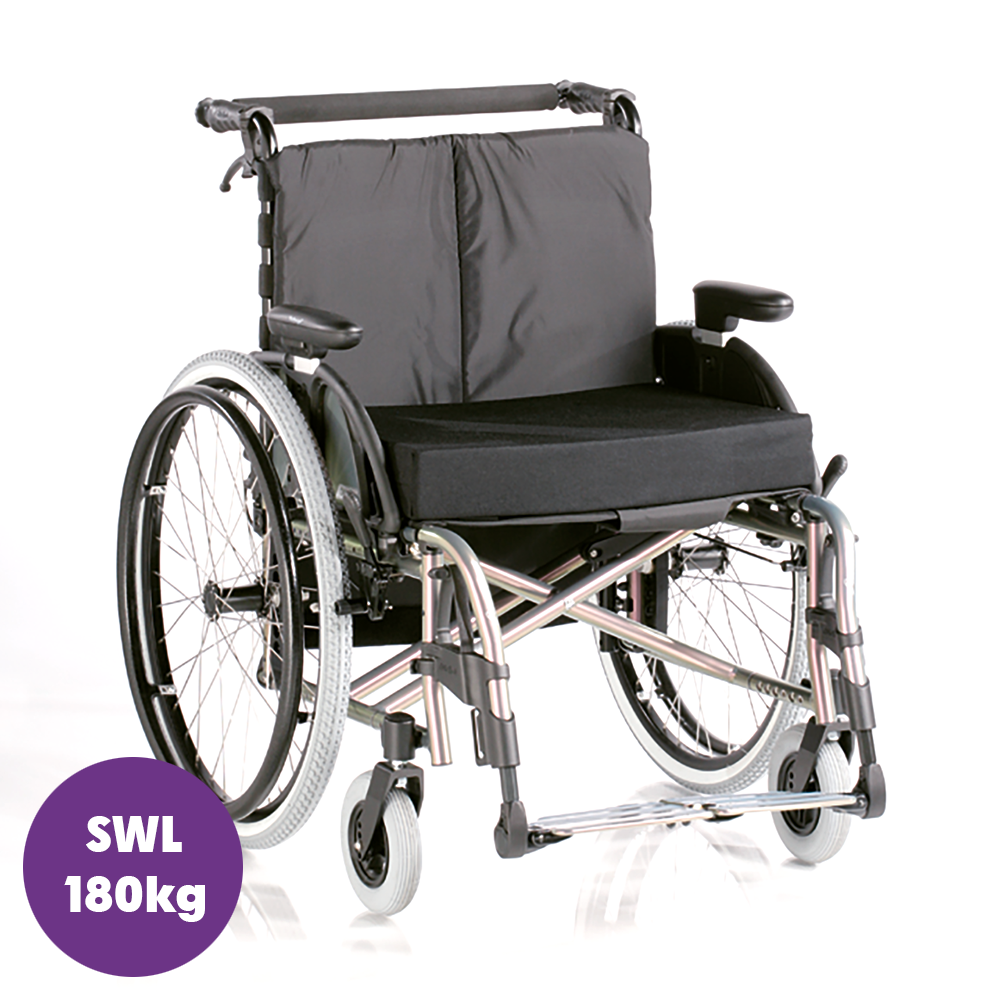

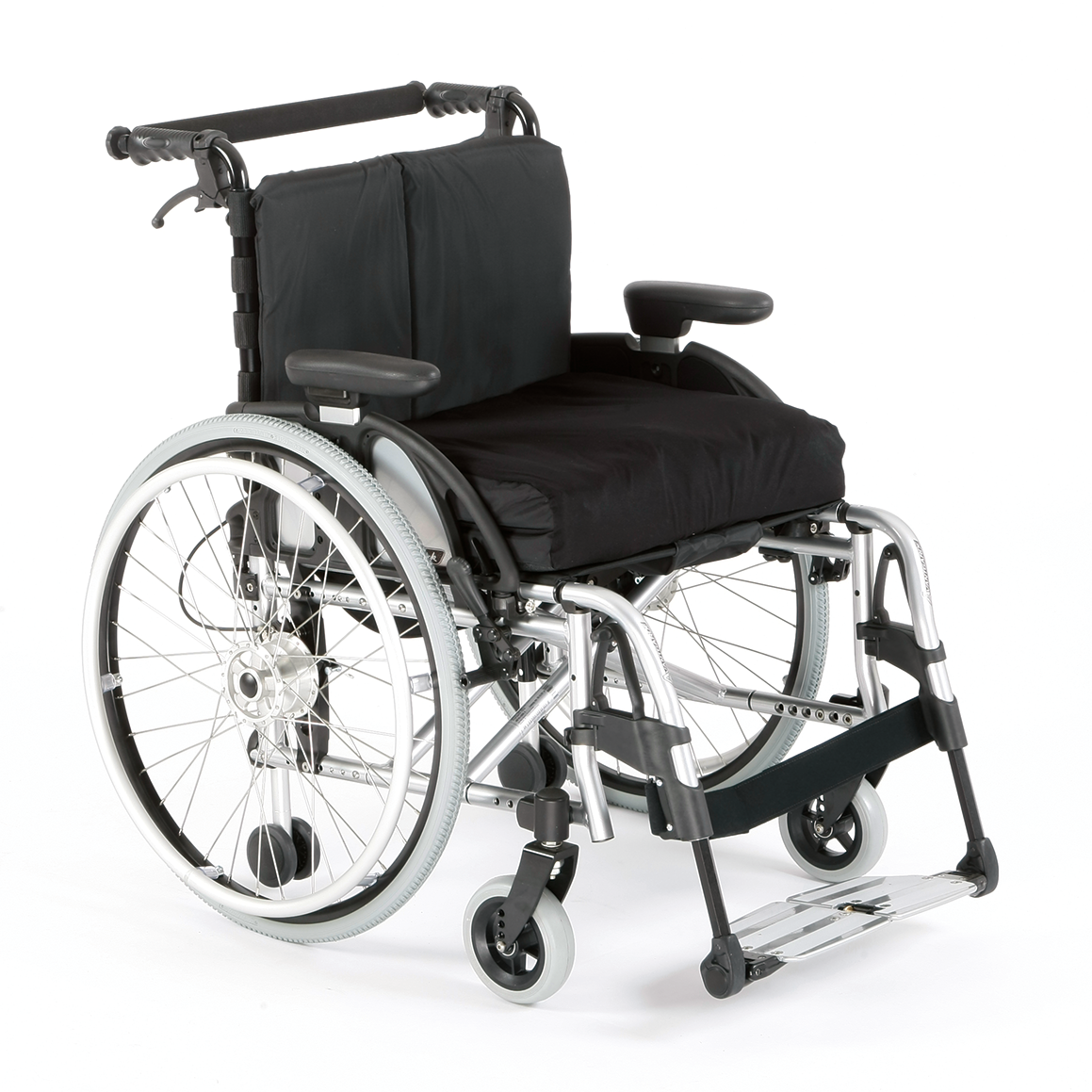

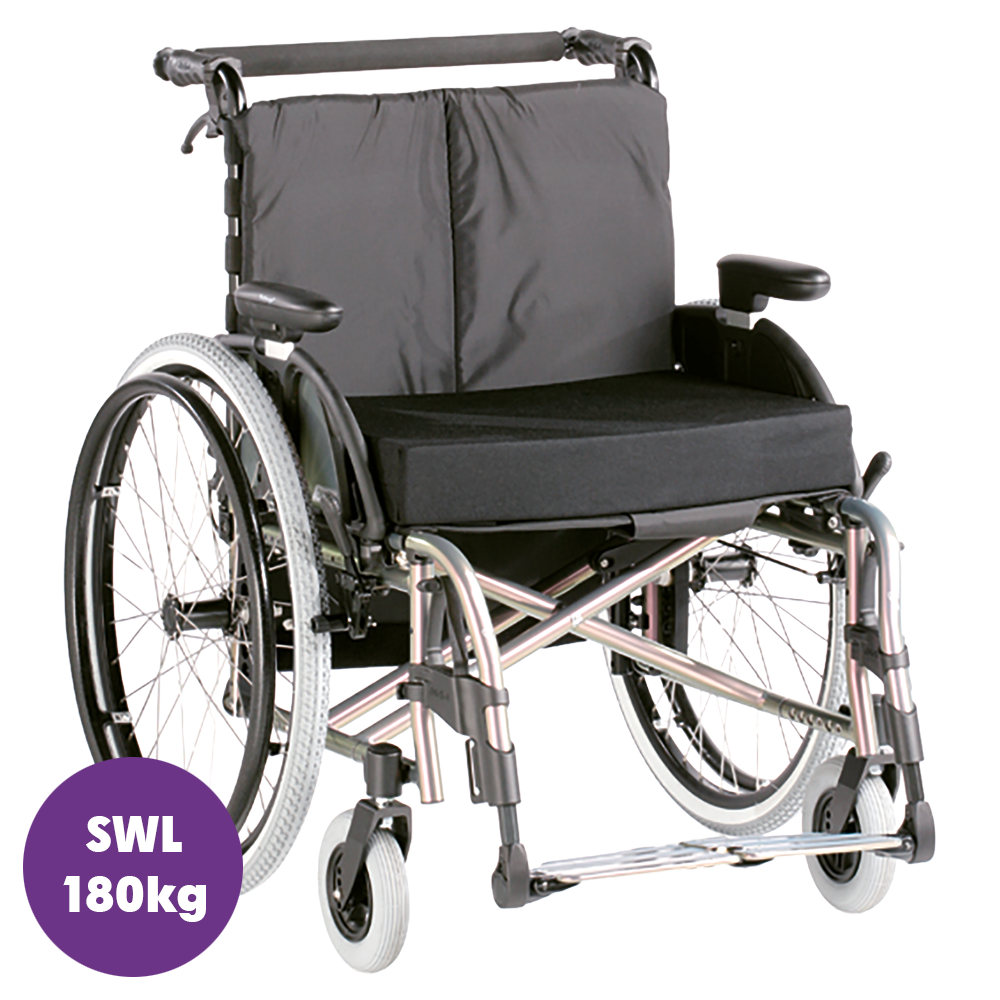

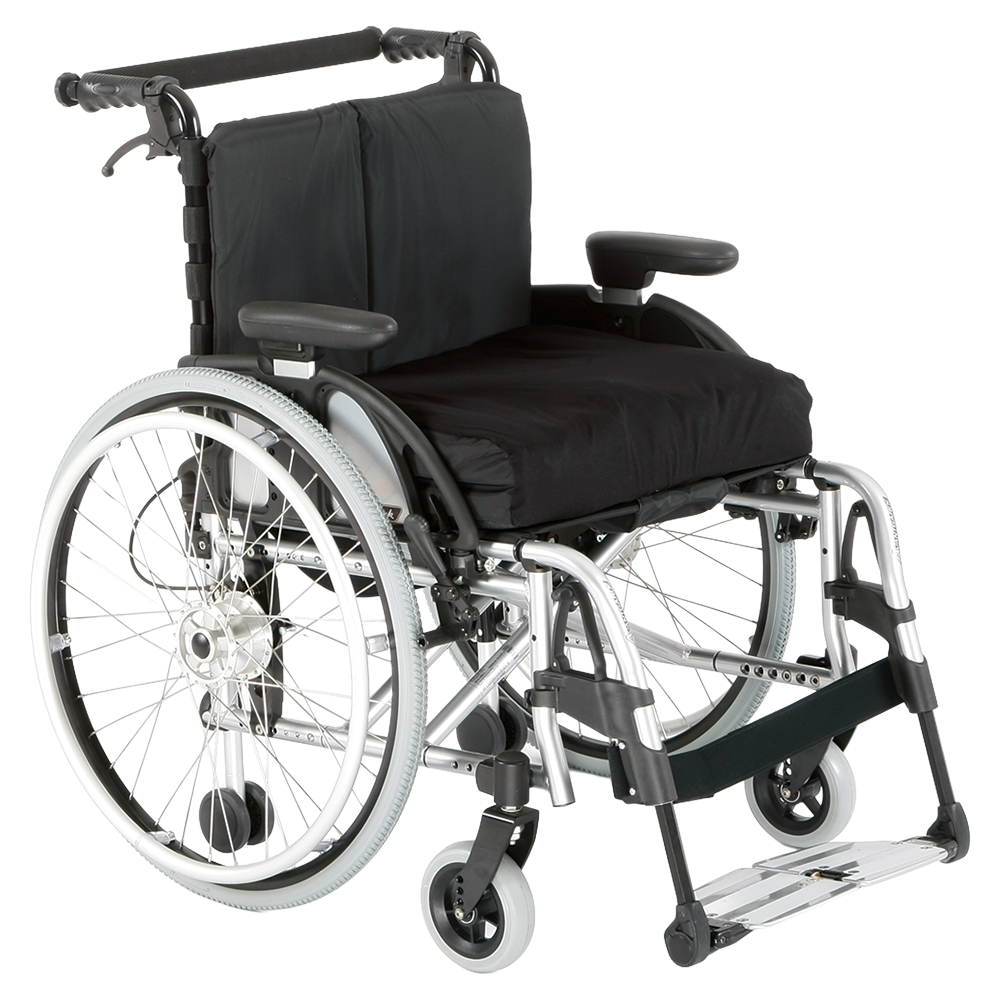

Ottobock Avantgarde XXL 2
SKU: 480F45=50000_KLightweight manual wheelchair.
Please complete a Referral Assessment Form and submit it with your quote request. You will be contacted by a product specialist.
The Avantgarde XXL 2 was developed to meet the needs of heavier, tall users. Outstanding stability combined with easy operation are its strengths. The robust base structure offers high reliability, and the high-quality materials keep the net weight of the chair as low as possible.
Features and Benefits
- Self and attendant propelled
- Reinforced aluminium tube frame
- Reinforced hollow rims
- Reinforced back support tube with lumbar curve
- Segmented angle adjustable foot support with aluminium footplates
Compliance
ARTG 241133
AS|NZS 3695.1:2011
Crash Tested: DIN ISO 7176-19
Warranty
2 years
Specifications
| Description | Avantgarde XXL 2 |
| SKU | 480F45=50000_K |
| Total Width | 695mm – 940mm |
| Total Length | 790mm – 1140mm |
| Total Height | 700mm – 1035mm |
| Folding Size | LxWxH | 320mm |
| Seat Width | 460mm – 620mm |
| Seat Depth | 400mm – 560mm |
| Front Seat Height | 440mm – 530mm |
| Rear Seat Height | 410mm – 530mm |
| Back Height | 250mm – 550mm |
| Lower Leg Length | 320mm – 550mm |
| Front Angle Frame | 75º |
| Crash Tested | Yes |
| Approx. Transport Weights | Frame: 11.3kg | Drive wheel: >2.15kg | Foot Supports: 1.2kg |
| SWL | 180kg |
Resources
Product Brochure
User Manual
