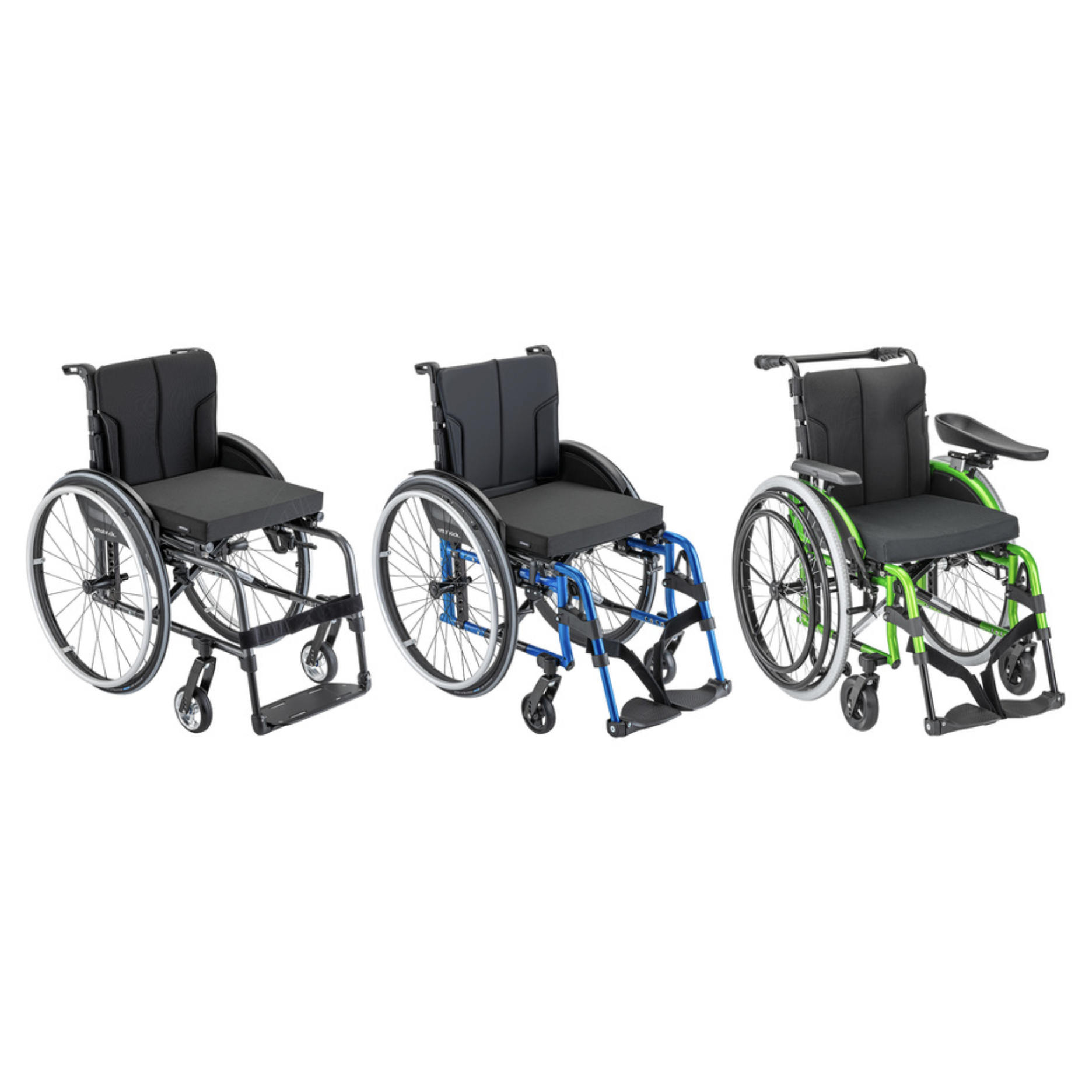

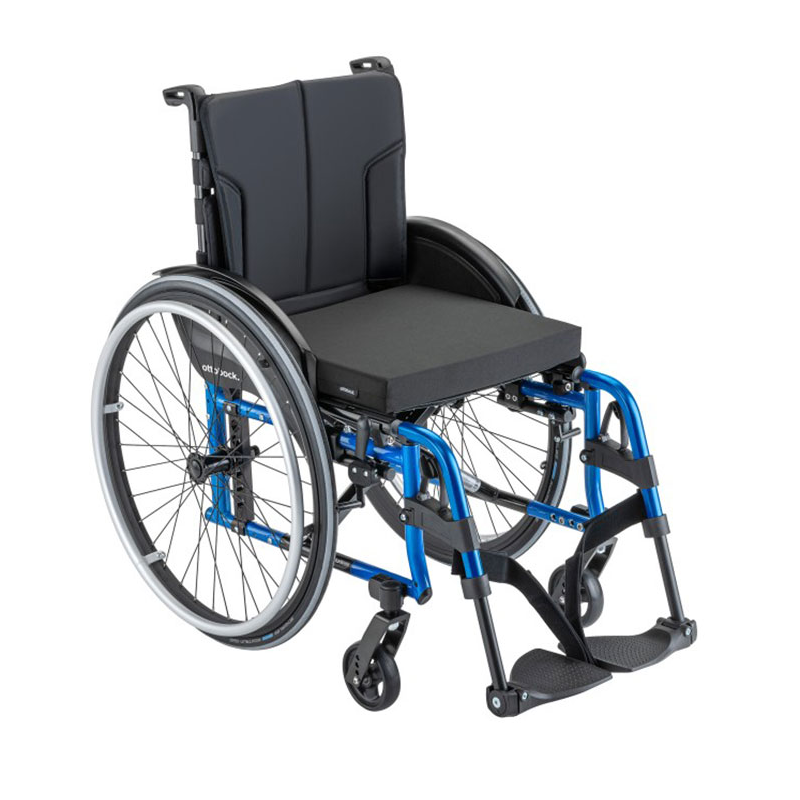

Ottobock Motus
SKU:Lightweight manual wheelchair.
Please complete a Referral Assessment Form and submit with your quote request and you will be contacted by a product specialist.
The name Motus comes from the word “moveo” and describes everything about movement. The Motus models were developed to support wheelchair users around the world. With a modular and fresh design and a multitude of product enhancements ensuring comfort and support for all of your needs. The development of an adjustable depth desk side panel with arm support provides greater freedom of movement in everyday life, for example, by making it easy to drive up to tables.
Features and Benefits
- User group: adults and elderly
- Activities: daily use and rehab
- Adjustable back support as standard

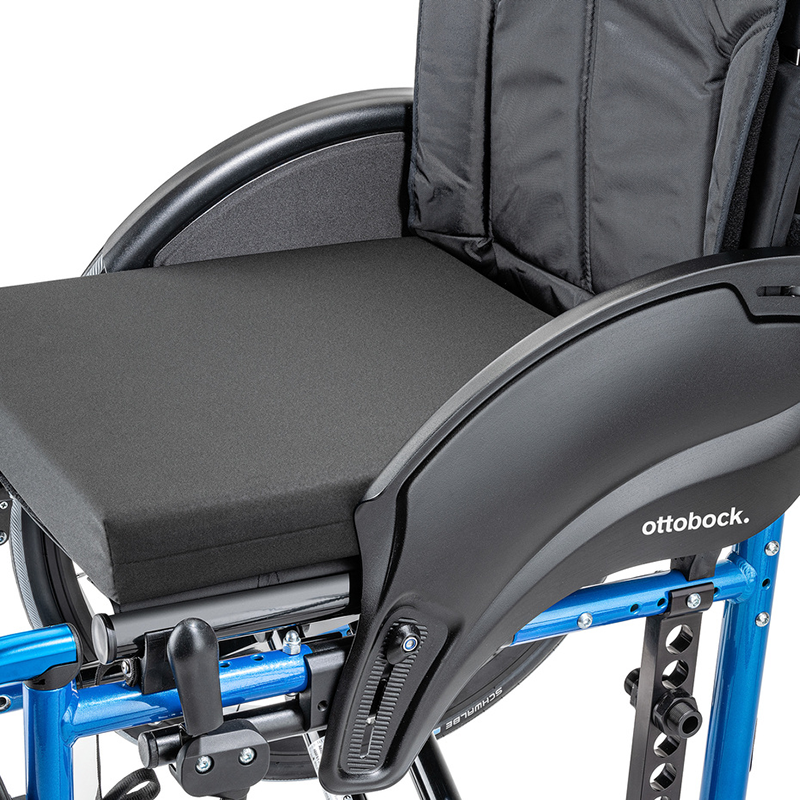

- Adjustable depth desk side panel with arm support

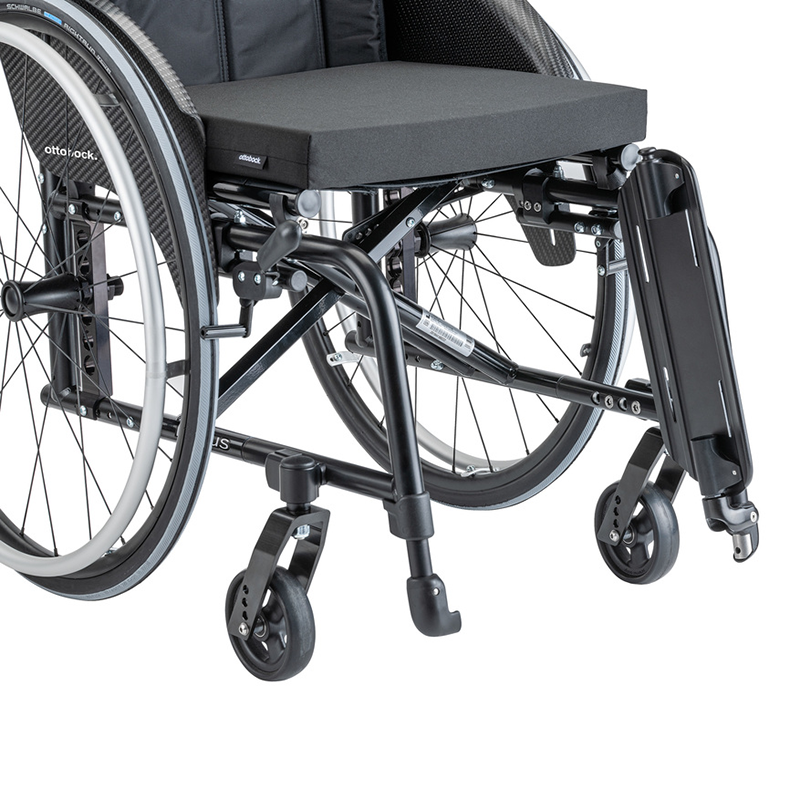

- Lightweight aluminium frame

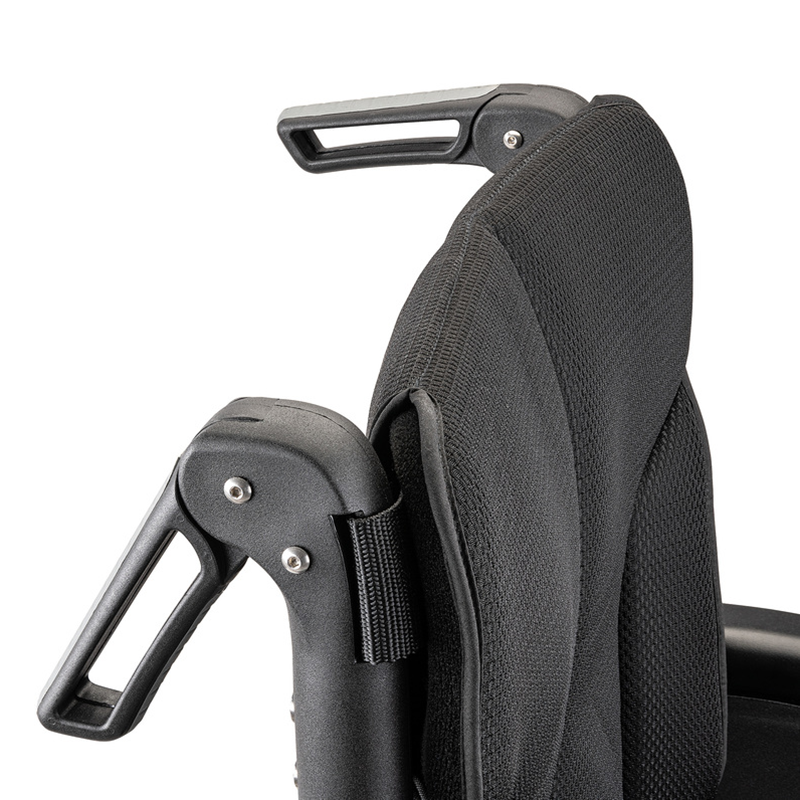

- Push handles can be raised or lowered to make it even more comfortable for the person pushing the wheelchair
- Folds up easily and quickly for transport

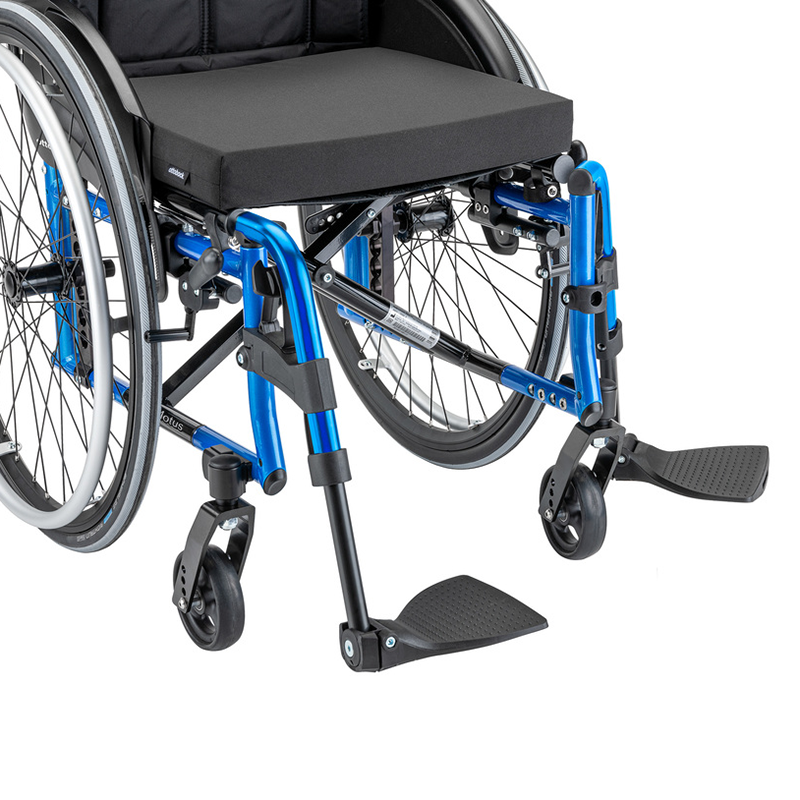

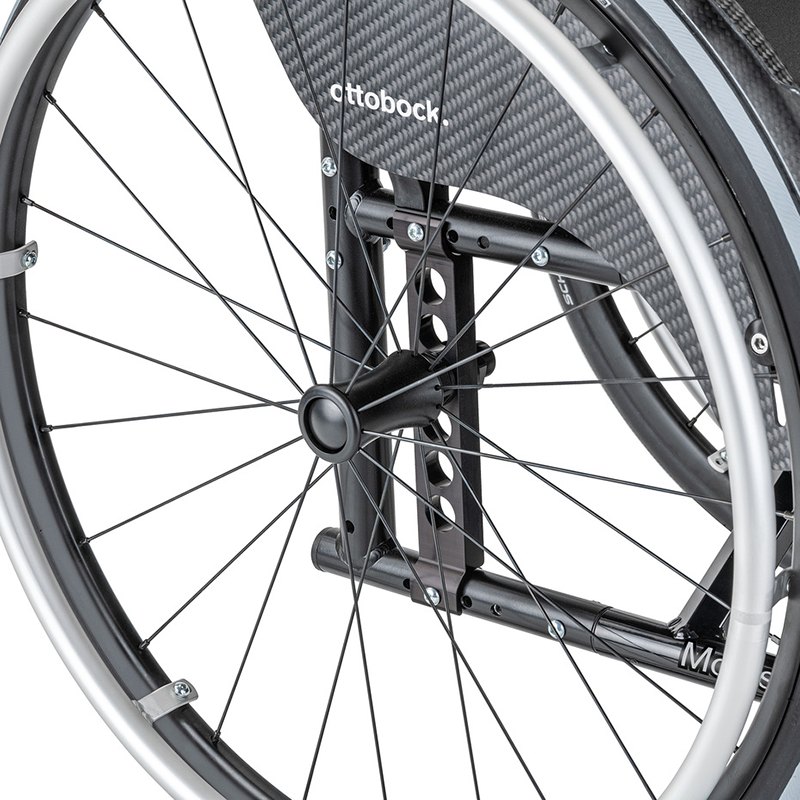

- Numerous options are available: desk side panels, hand rims, footplates and push handles
Compliance
ARTG 241133
AS|NZS 3695.1:2011
ISO 7176-19
Warranty
2 years
Specifications

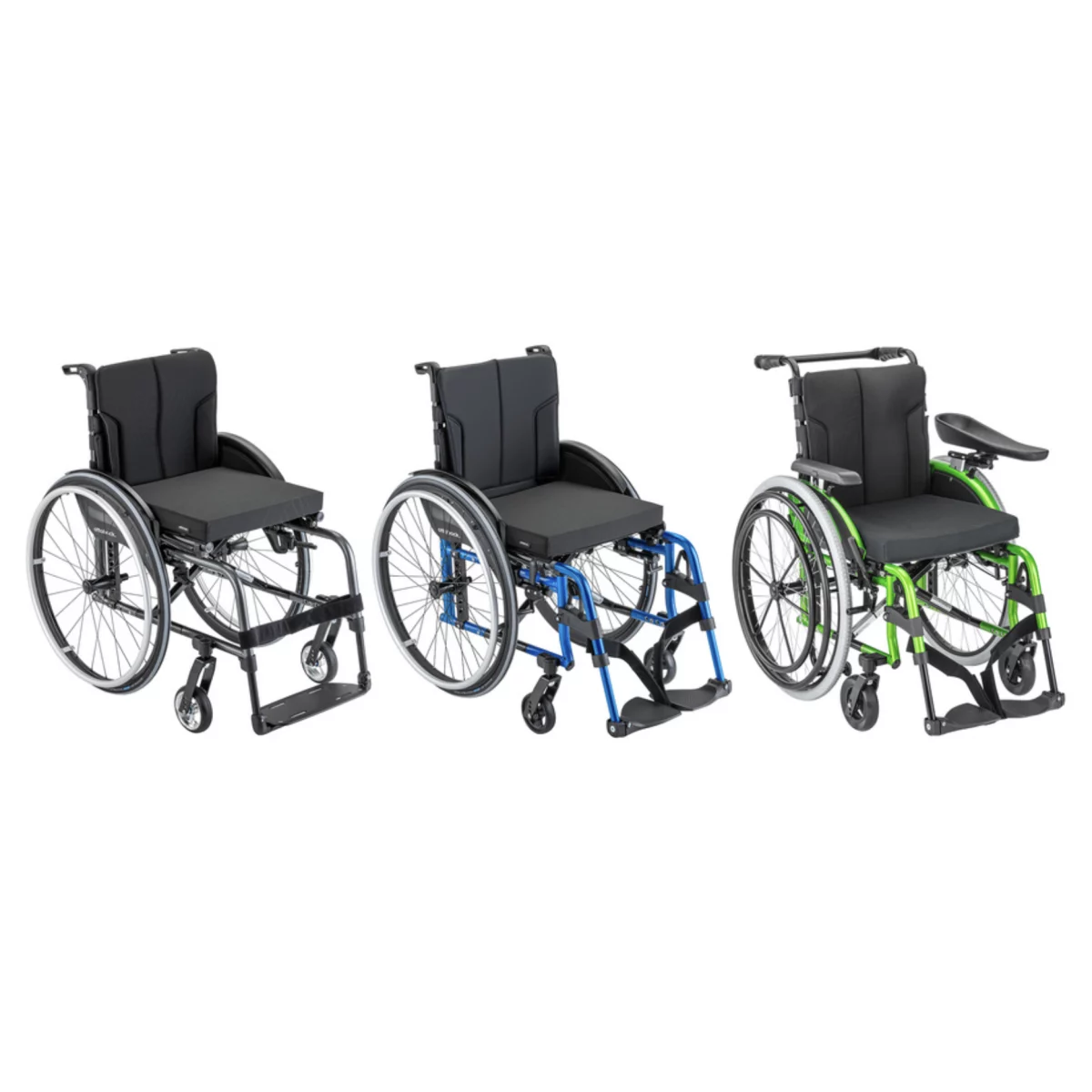

Description | Motus CV | Motus CS |
SKU | 480F61=2_AA02_C | 480F61=2_AA03_C |
Total Width | 505mm – 680mm | 505mm – 680mm |
Total Length | 805mm – 1155mm | 805mm – 1155mm |
Total Height | 670mm – 1100mm | 670mm – 1100mm |
Folding Size | 270mm – 330mm | 270mm – 330mm |
Seat Width | 355mm – 480mm | 355mm – 480mm |
Seat Depth | 360mm – 540mm | 360mm – 540mm |
Seat Angle | 10mm – 100mm | 10mm – 100mm |
Seat Height | Anterior | 380mm – 550mm | 380mm – 550mm |
Seat Height | Posterior | 360mm – 520mm | 360mm – 520mm |
Back Support Height | 300mm – 500mm | 300mm – 500mm |
Back Support Angle | 0º – 30º | 0º – 30º |
Lower Leg Length | 340mm – 550mm | 340mm – 550mm |
Product Weight | 11.9kg – 20.2kg | 11.6kg – 19.9kg |
SWL | 125kg | 125kg |
Resources
Product Brochure
Motus User Manual
Please complete a Referral Assessment Form and submit with your quote request and you will be contacted by a product specialist.
The name Motus comes from the word “moveo” and describes everything about movement. The Motus models were developed to support wheelchair users around the world. With a modular and fresh design and a multitude of product enhancements ensuring comfort and support for all of your needs. The development of an adjustable depth desk side panel with arm support provides greater freedom of movement in everyday life, for example, by making it easy to drive up to tables.
Features and Benefits
- User group: adults and elderly
- Activities: daily use and rehab
- Adjustable back support as standard
- Adjustable depth desk side panel with arm support
- Lightweight aluminium frame
- Push handles can be raised or lowered to make it even more comfortable for the person pushing the wheelchair
- Folds up easily and quickly for transport
- Numerous options are available: desk side panels, hand rims, footplates and push handles
Compliance
ARTG 241133
AS|NZS 3695.1:2011
ISO 7176-19
Warranty
2 years
Specifications
Description | Motus CV | Motus CS |
SKU | 480F61=2_AA02_C | 480F61=2_AA03_C |
Total Width | 505mm – 680mm | 505mm – 680mm |
Total Length | 805mm – 1155mm | 805mm – 1155mm |
Total Height | 670mm – 1100mm | 670mm – 1100mm |
Folding Size | 270mm – 330mm | 270mm – 330mm |
Seat Width | 355mm – 480mm | 355mm – 480mm |
Seat Depth | 360mm – 540mm | 360mm – 540mm |
Seat Angle | 10mm – 100mm | 10mm – 100mm |
Seat Height | Anterior | 380mm – 550mm | 380mm – 550mm |
Seat Height | Posterior | 360mm – 520mm | 360mm – 520mm |
Back Support Height | 300mm – 500mm | 300mm – 500mm |
Back Support Angle | 0º – 30º | 0º – 30º |
Lower Leg Length | 340mm – 550mm | 340mm – 550mm |
Product Weight | 11.9kg – 20.2kg | 11.6kg – 19.9kg |
SWL | 125kg | 125kg |
Resources
Product Brochure
Motus User Manual
Weight | 13 kg |
---|---|
Dimensions | 50 × 50 × 80 cm |
Purchase Type | Buy |
