Oxford® Up 200
SKU: TM0600$3,591.00
Safe and efficient standing, transfers, and rehabilitation.
The Oxford® Up 200 is a uniquely designed manual standing aid and transfer device, suitable for those who require assistance when standing but are able to contribute effort to the process. By encouraging user participation, the Oxford® Up 200 can play a supportive role in patient rehabilitation, function, and independence.
Features and Benefits

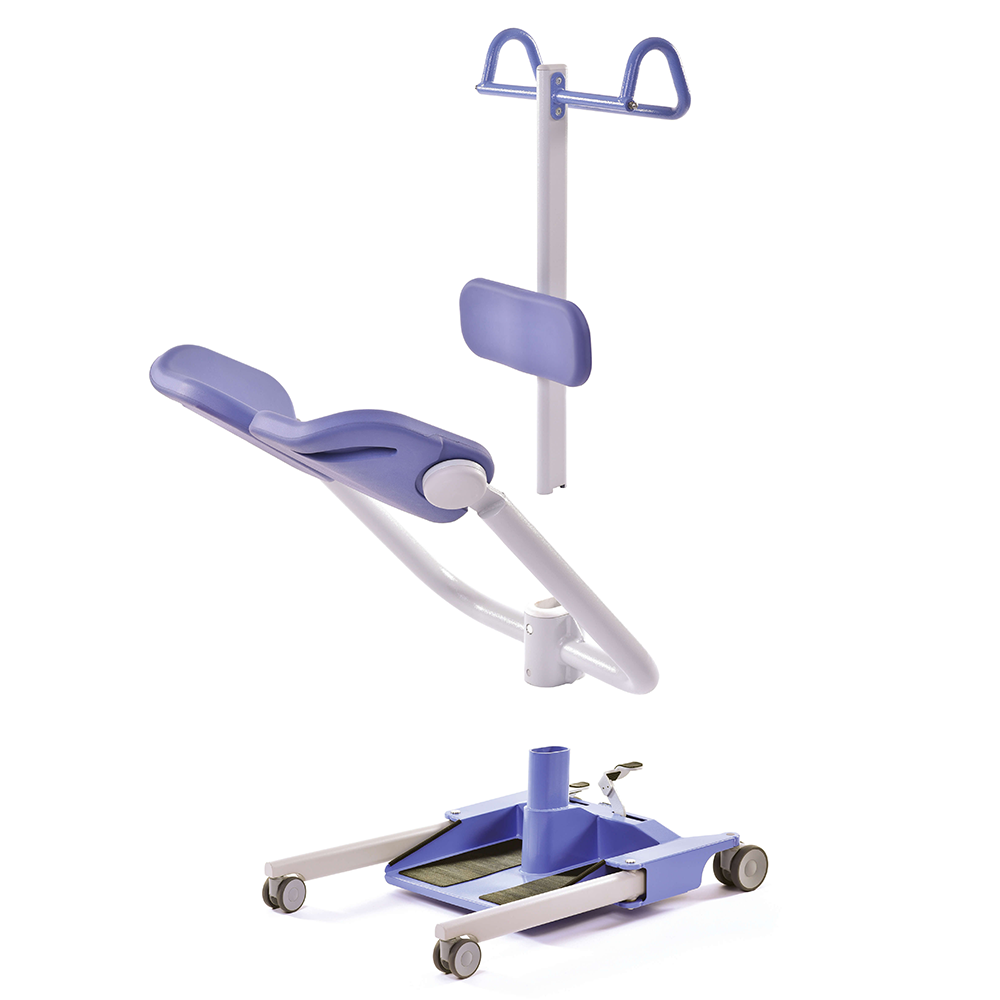

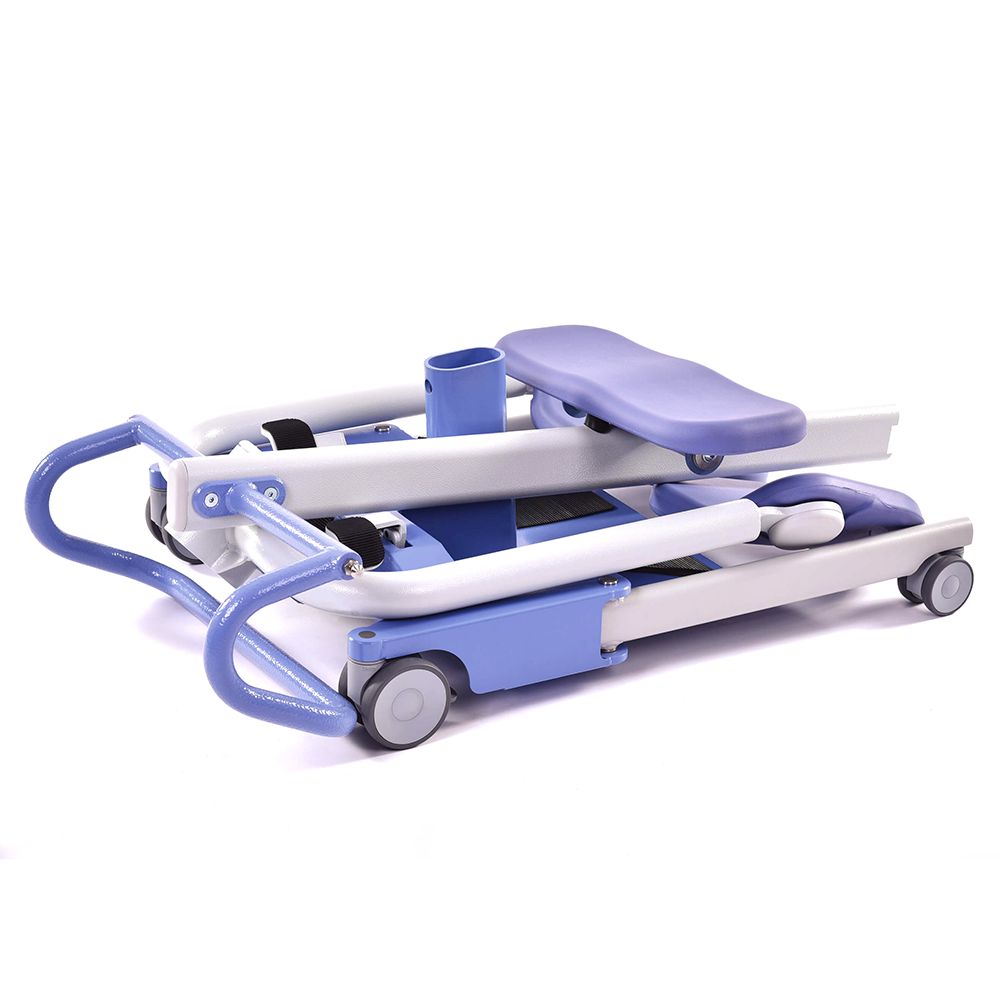

- Disassembles for easy storage and transportation
- Adjustable legs for access around furniture
- Contoured swing away seat pads
- Ergonomic design considerations
- Compatible sling available for additional support
Compliance
ISO 10535:2021
ARTG 397217
Warranty
12 months
Specifications
Total Length | 960mm |
Total Height | 1093mm |
Total Width | 633mm |
External Width | Legs Open | 840mm |
External Width | Legs Closed | 585mm |
Internal Width | Legs Open | 720mm |
Internal Width | Legs Closed | 470mm |
Leg Height | 105mm |
Knee Pad Height | Footplate to top of pad | 480mm |
Foot Plate Height | 37mm |
Ground Clearance | 17mm |
Turning Radius | 1100mm |
Front Castors | 75mm |
Rear Castors | Braked | 100mm |
SWL | 200kg |
Resources
Product Brochure
User Manual
Service Manual
SKU: TM0600
Categories: Buy, Standing and Raising Aids, theavenue
Description
The Oxford® Up 200 is a uniquely designed manual standing aid and transfer device, suitable for those who require assistance when standing but are able to contribute effort to the process. By encouraging user participation, the Oxford® Up 200 can play a supportive role in patient rehabilitation, function, and independence.
Features and Benefits
- Disassembles for easy storage and transportation
- Adjustable legs for access around furniture
- Contoured swing away seat pads
- Ergonomic design considerations
- Compatible sling available for additional support
Compliance
ISO 10535:2021
ARTG 397217
Warranty
12 months
Specifications
Total Length | 960mm |
Total Height | 1093mm |
Total Width | 633mm |
External Width | Legs Open | 840mm |
External Width | Legs Closed | 585mm |
Internal Width | Legs Open | 720mm |
Internal Width | Legs Closed | 470mm |
Leg Height | 105mm |
Knee Pad Height | Footplate to top of pad | 480mm |
Foot Plate Height | 37mm |
Ground Clearance | 17mm |
Turning Radius | 1100mm |
Front Castors | 75mm |
Rear Castors | Braked | 100mm |
SWL | 200kg |
Resources
Product Brochure
User Manual
Service Manual
Additional information
Weight | 37 kg |
---|---|
Dimensions | 104 × 71 × 33 cm |
