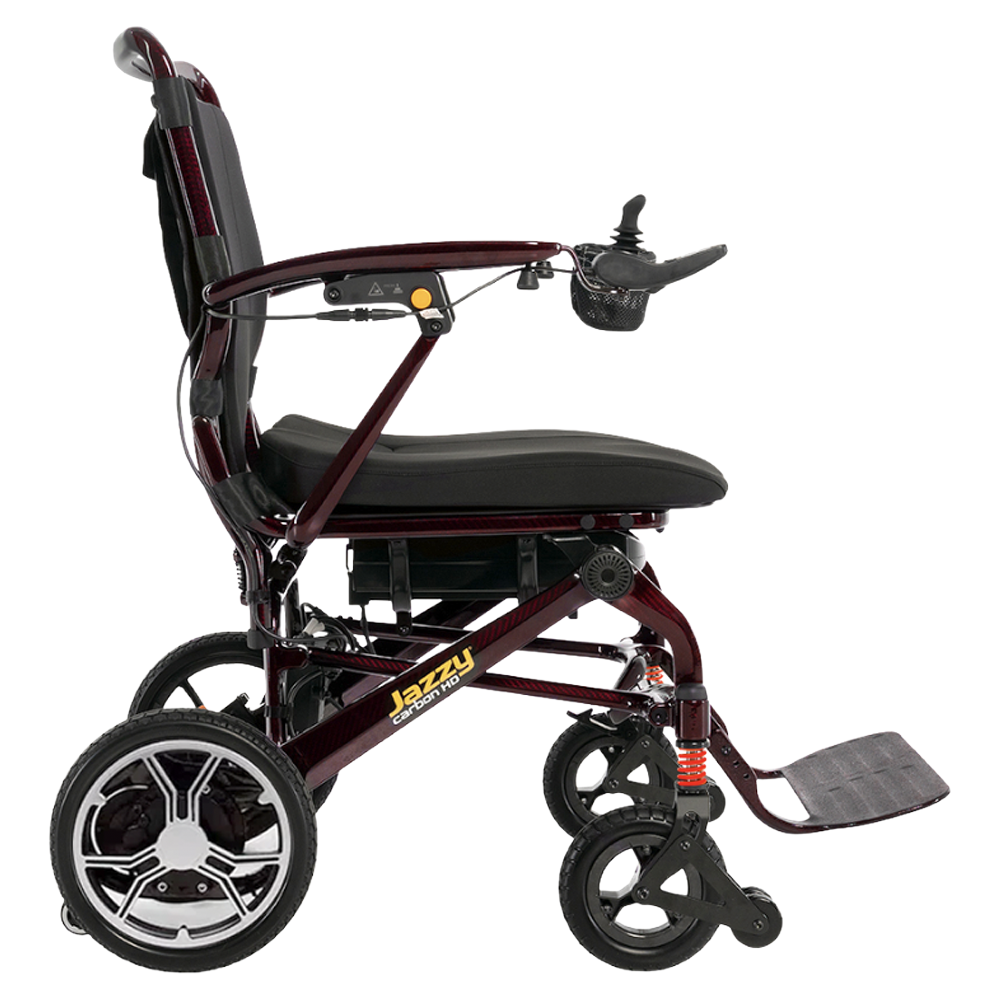

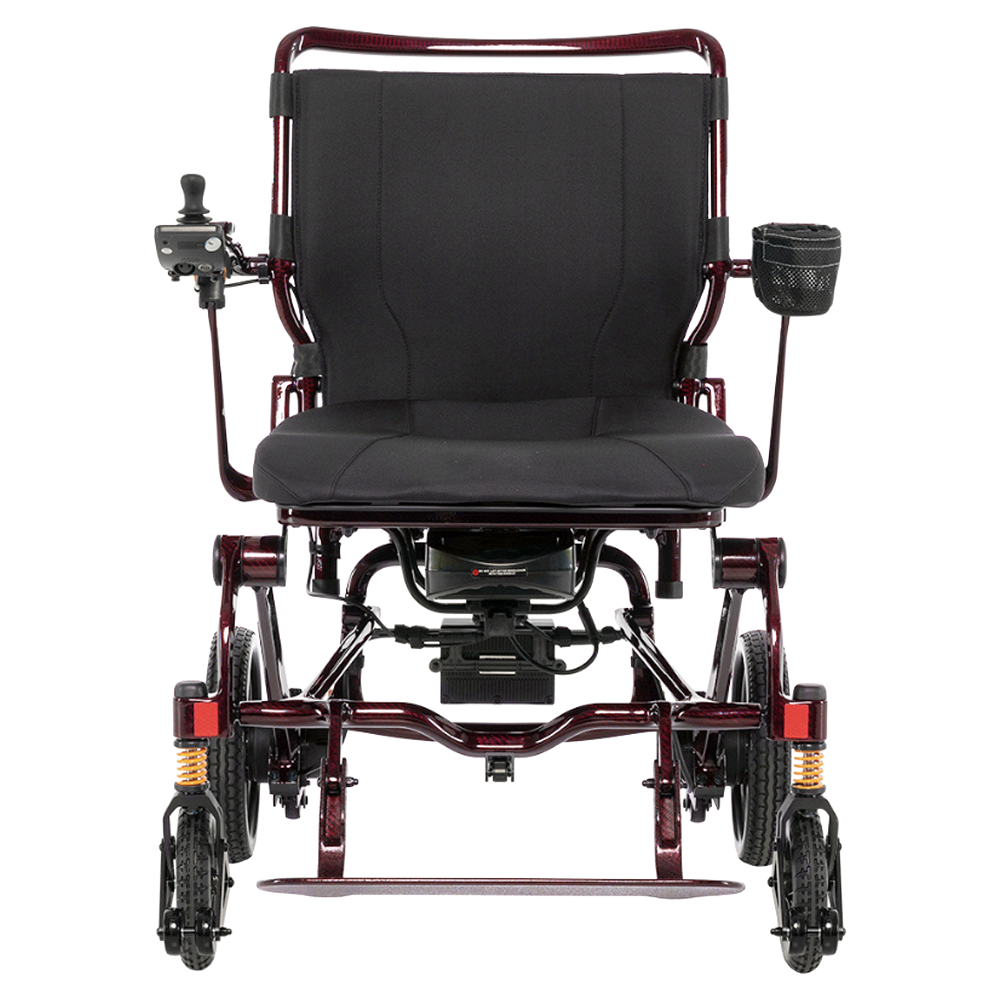

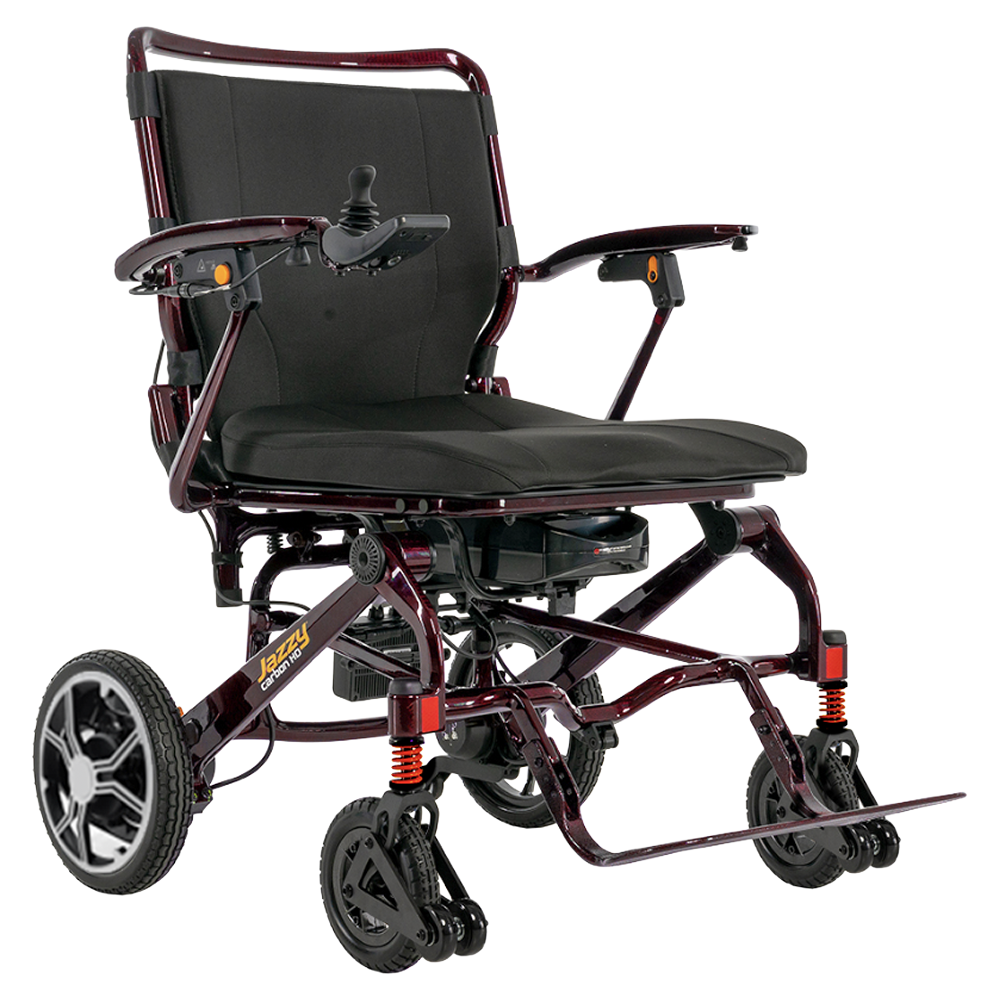

Pride® Mobility Jazzy® Carbon HD
SKU: JAZZY-CARBON-HD$4,995.00
Ultra lightweight folding power wheelchair.
Documentation
The Jazzy Carbon HD addresses a significant clinical gap for users who require a high weight capacity combined with a device light enough to transport without specialist equipment. Full front and rear suspension reduces vibration transmission during community use, supporting users managing back pain, joint sensitivity, or fatigue-related conditions. The wide padded seat and extra-wide foot platform provide the postural comfort and skin integrity support needed for extended daily use, while the lightweight frame allows carers and family members to assist with vehicle loading without a hoist or modified transport.
Features and Benefits

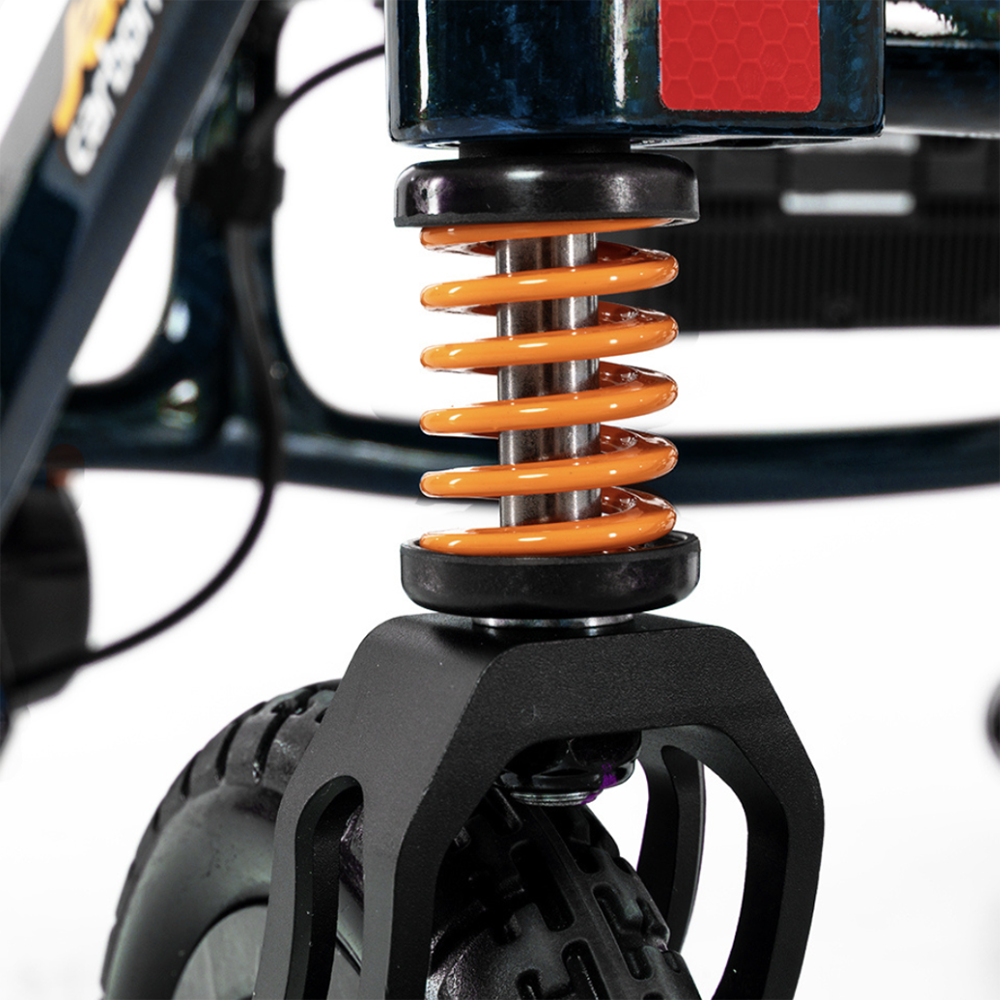

- Full front and rear suspension

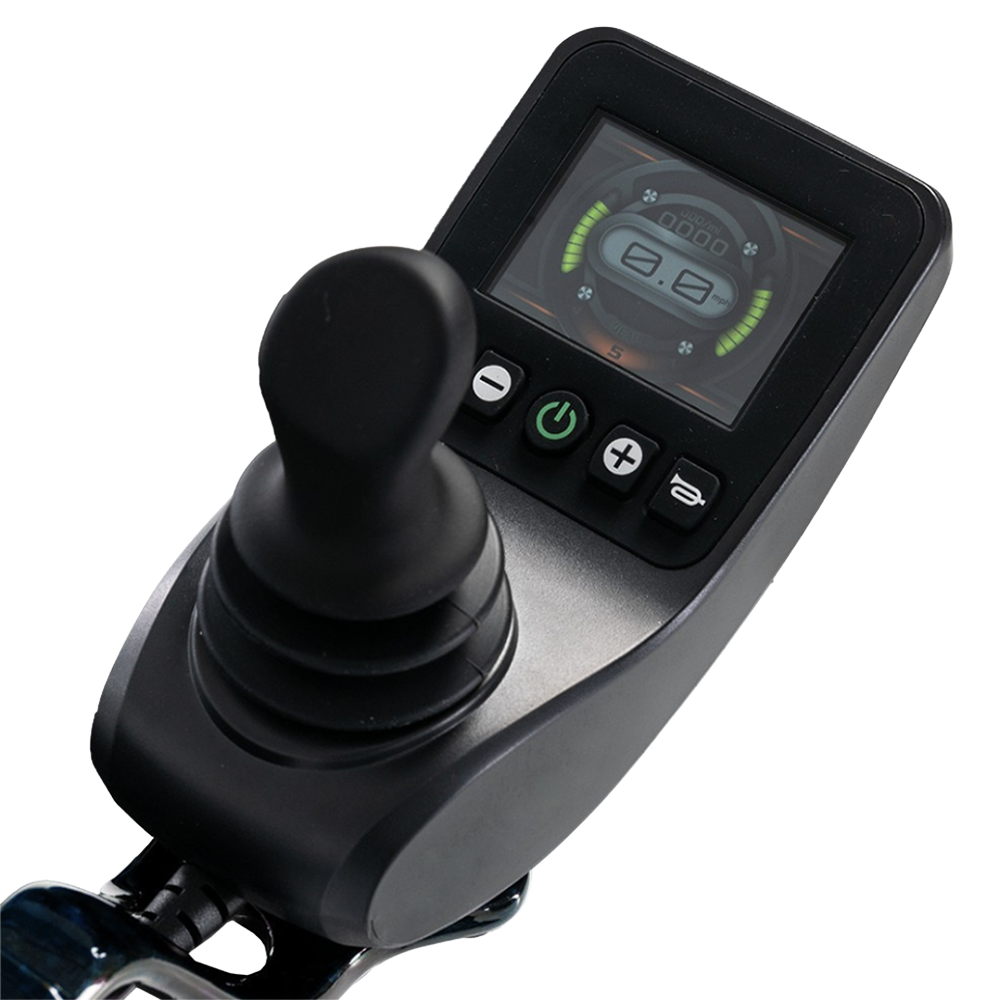

- Quick-disconnect joystick with LCD display
- Adjustable lap belt

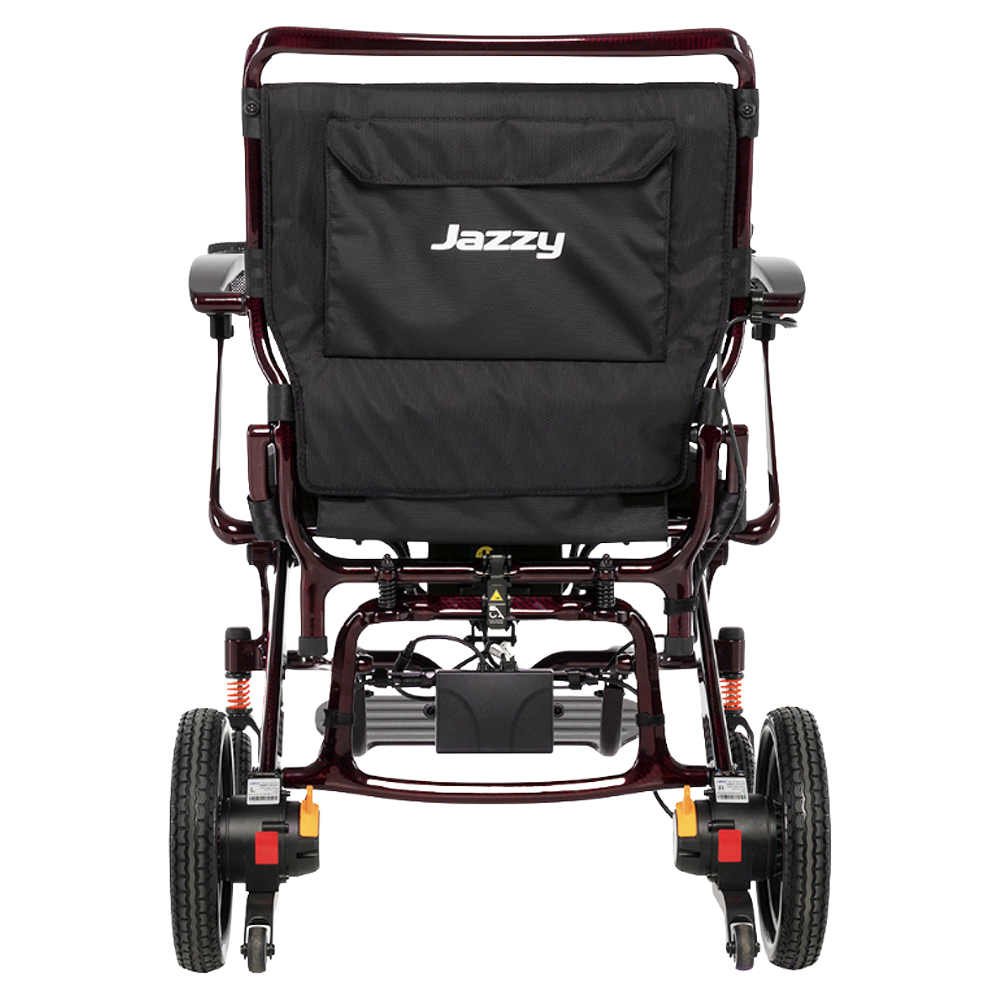

- Padded back storage pocket
- Durable, lightweight carbon fibre frame

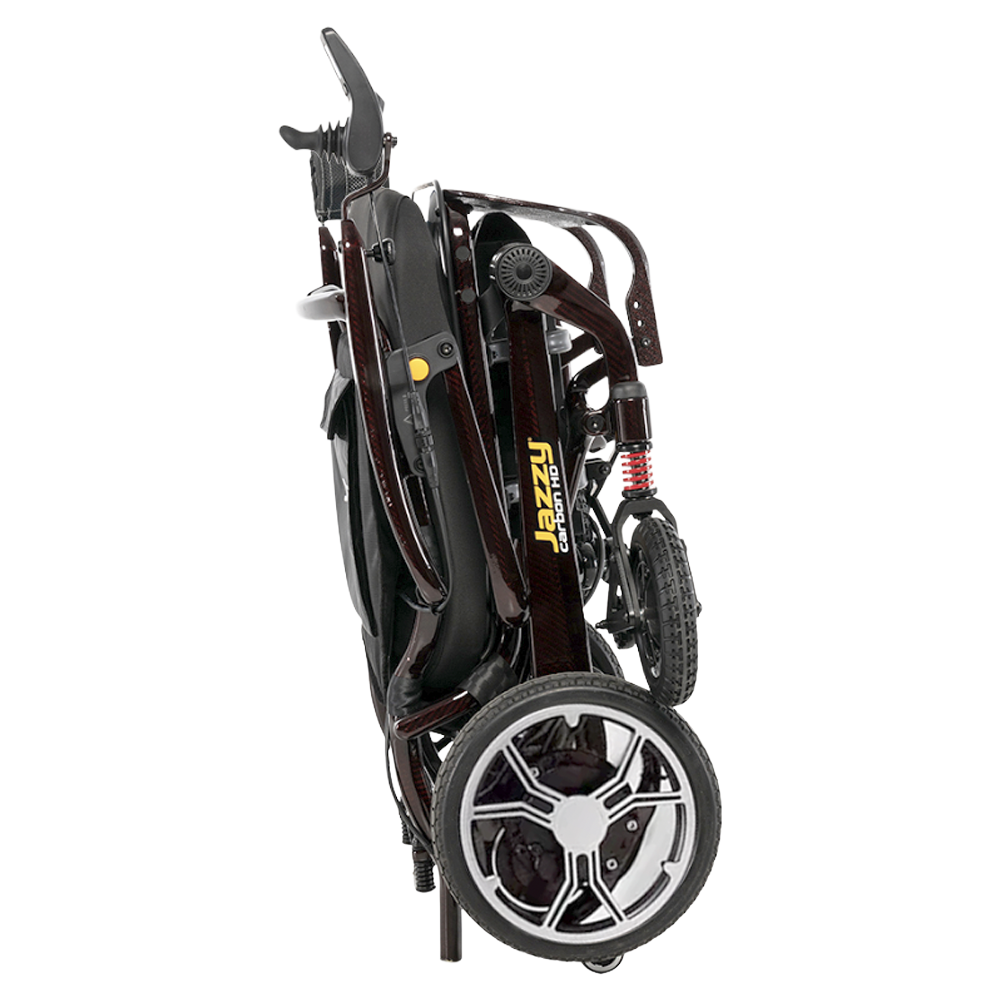

- Compact base folds and unfolds for easy transport
- Height-adjustable foot platform

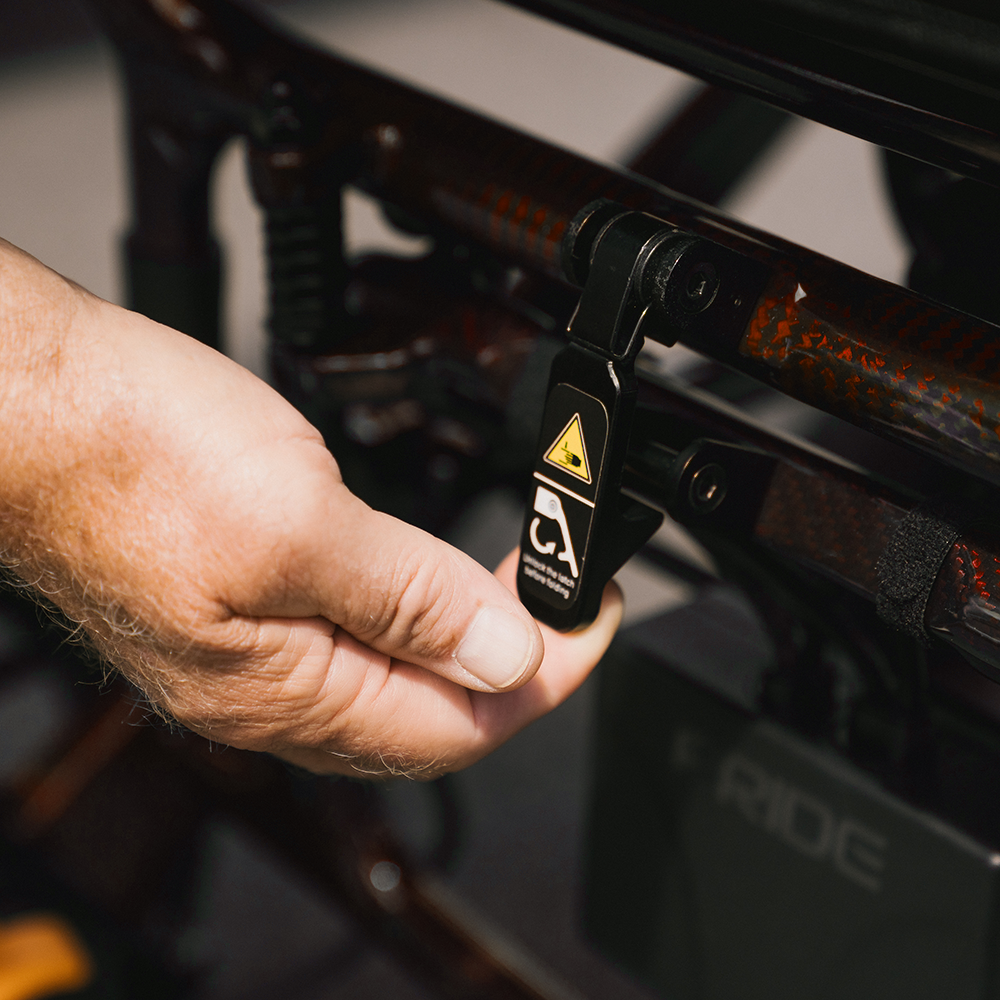

- Latch for locking unit open or closed

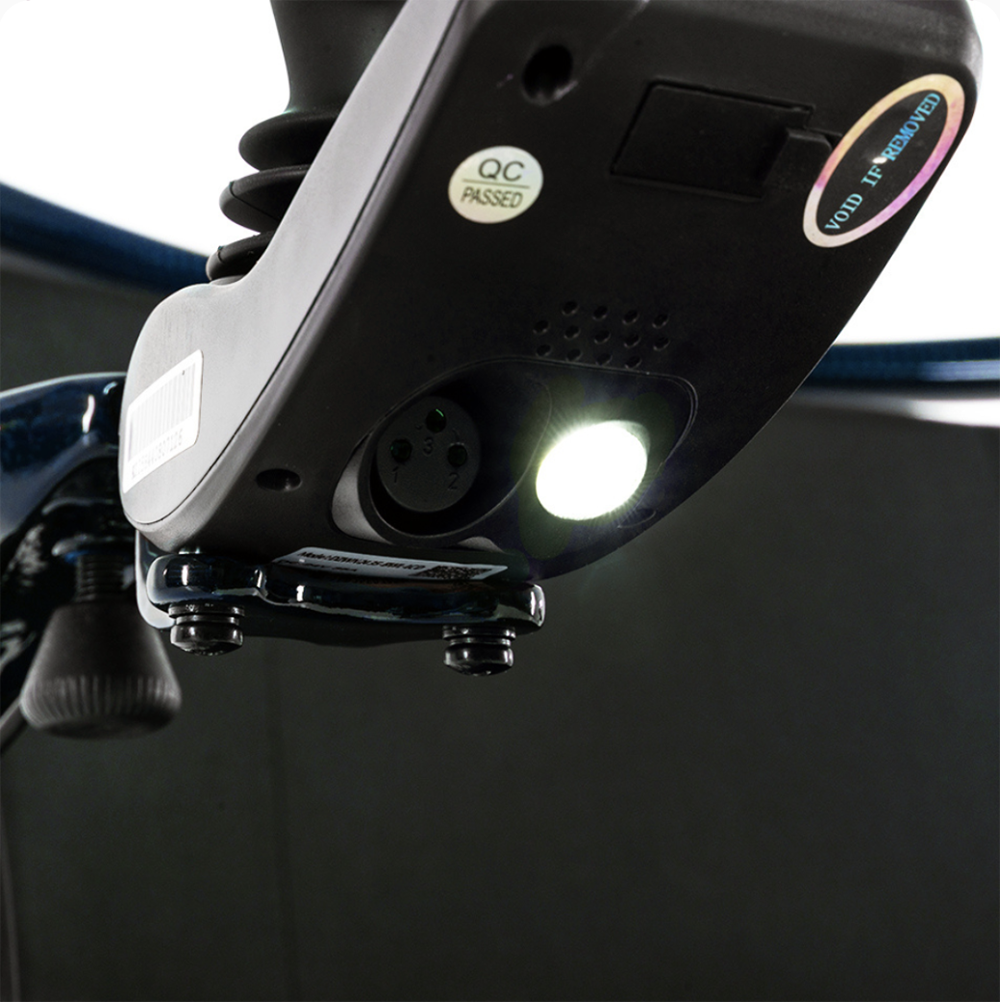

- Puddle light
- Option: Mesh cup holder
Compliance
ARTG 342775
AS|NZ 3695.2:2019
Warranty
See Warranty Card for full details.
Specifications
| Length | 935mm |
| Width | 670mm |
| Seat Width | 510mm |
| Seat Depth | 510mm |
| High Back Seat to Floor Height | 500mm Fixed |
| Ground Clearance | 52mm at Motor |
| Front Castors | 165.1mm Solid |
| Drive Wheels | 269.24mm Solid |
| Maximum Speed | 6kph |
| Range | <20km |
| Max. Recommended Incline Angle | 9º |
| Turning Radius | 925mm |
| Standard Electronics | YT Control |
| Drive Train | 2 Motor | Rear Wheel Drive |
| Braking System | Regenerative & Electro-Mechanical |

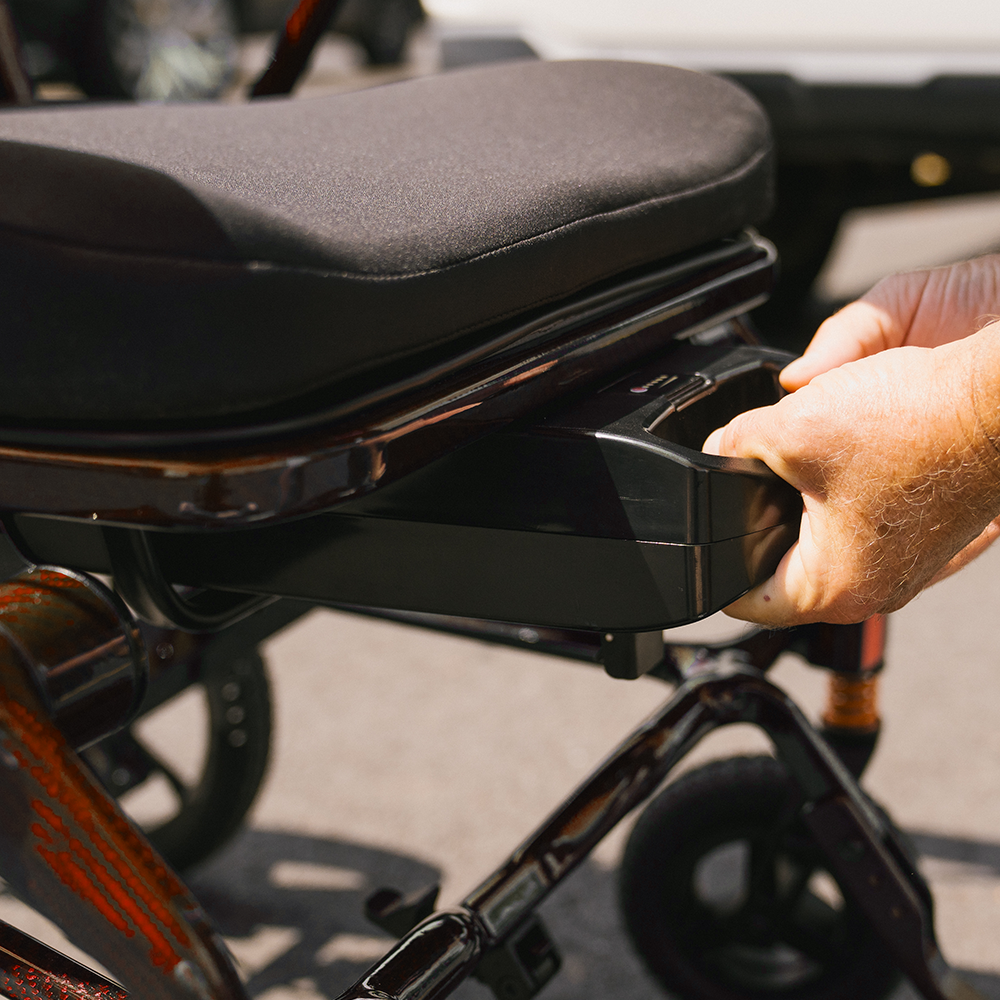

| Battery Requirements | 20Ah, 24V Lithium | 436.8Wh |
| Battery Charger | Off-board | 3.5A Lithium-ion |
| Colour | Black Cherry Carbon |
| Weight of heaviest piece | 14.6kg |
| Battery Weight | 3.4kg |
| SWL | 181kg |
Description
The Jazzy Carbon HD addresses a significant clinical gap for users who require a high weight capacity combined with a device light enough to transport without specialist equipment. Full front and rear suspension reduces vibration transmission during community use, supporting users managing back pain, joint sensitivity, or fatigue-related conditions. The wide padded seat and extra-wide foot platform provide the postural comfort and skin integrity support needed for extended daily use, while the lightweight frame allows carers and family members to assist with vehicle loading without a hoist or modified transport.
Features and Benefits
- Full front and rear suspension
- Quick-disconnect joystick with LCD display
- Adjustable lap belt
- Padded back storage pocket
- Durable, lightweight carbon fibre frame
- Compact base folds and unfolds for easy transport
- Height-adjustable foot platform
- Latch for locking unit open or closed
- Puddle light
- Option: Mesh cup holder
Compliance
ARTG 342775
AS|NZ 3695.2:2019
Warranty
See Warranty Card for full details.
Specifications
| Length | 935mm |
| Width | 670mm |
| Seat Width | 510mm |
| Seat Depth | 510mm |
| High Back Seat to Floor Height | 500mm Fixed |
| Ground Clearance | 52mm at Motor |
| Front Castors | 165.1mm Solid |
| Drive Wheels | 269.24mm Solid |
| Maximum Speed | 6kph |
| Range | <20km |
| Max. Recommended Incline Angle | 9º |
| Turning Radius | 925mm |
| Standard Electronics | YT Control |
| Drive Train | 2 Motor | Rear Wheel Drive |
| Braking System | Regenerative & Electro-Mechanical |
| Battery Requirements | 20Ah, 24V Lithium | 436.8Wh |
| Battery Charger | Off-board | 3.5A Lithium-ion |
| Colour | Black Cherry Carbon |
| Weight of heaviest piece | 14.6kg |
| Battery Weight | 3.4kg |
| SWL | 181kg |
