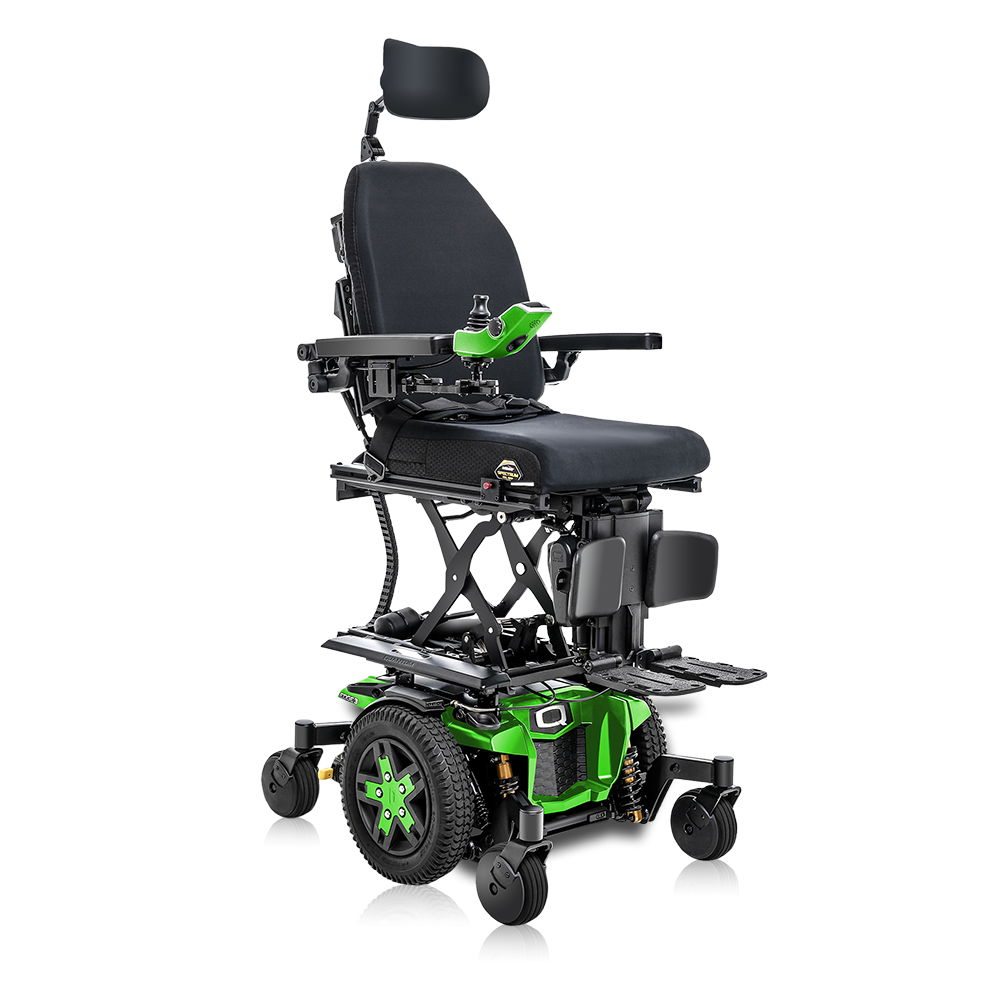

Quantum® Q6 Edge 3® with Q-Logic 3

SKU: Q6EDGE

Mid wheel drive power wheelchair.

    Request a Quote

    Request product information or a quote by filling out the form below and we will get back to you as soon as possible.

    Please upload your completed Rehab Referral Assessment Form (if applicable) and/or completed NDIS Service Agreement Form (if applicable) by clicking a button below (one file per button).

    Please complete a Referral Assessment Form and submit with your quote request and you will be contacted by a product specialist.

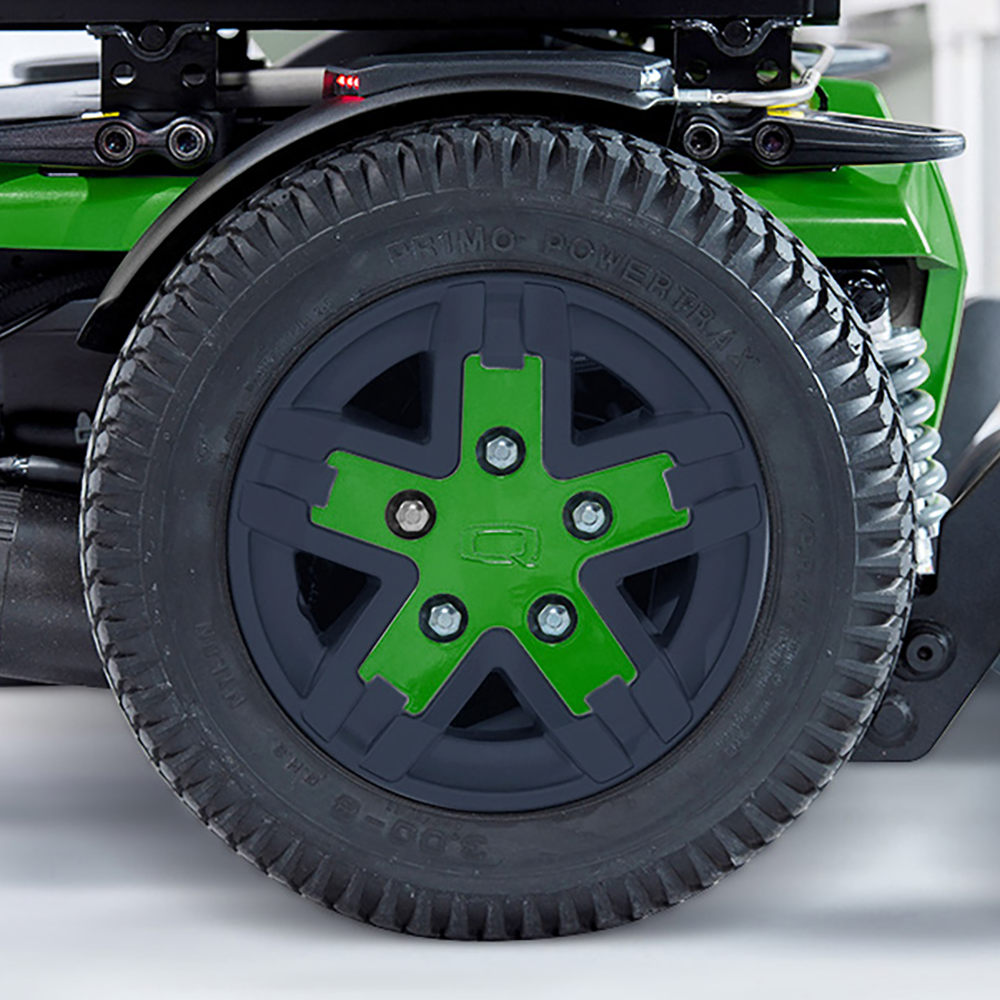

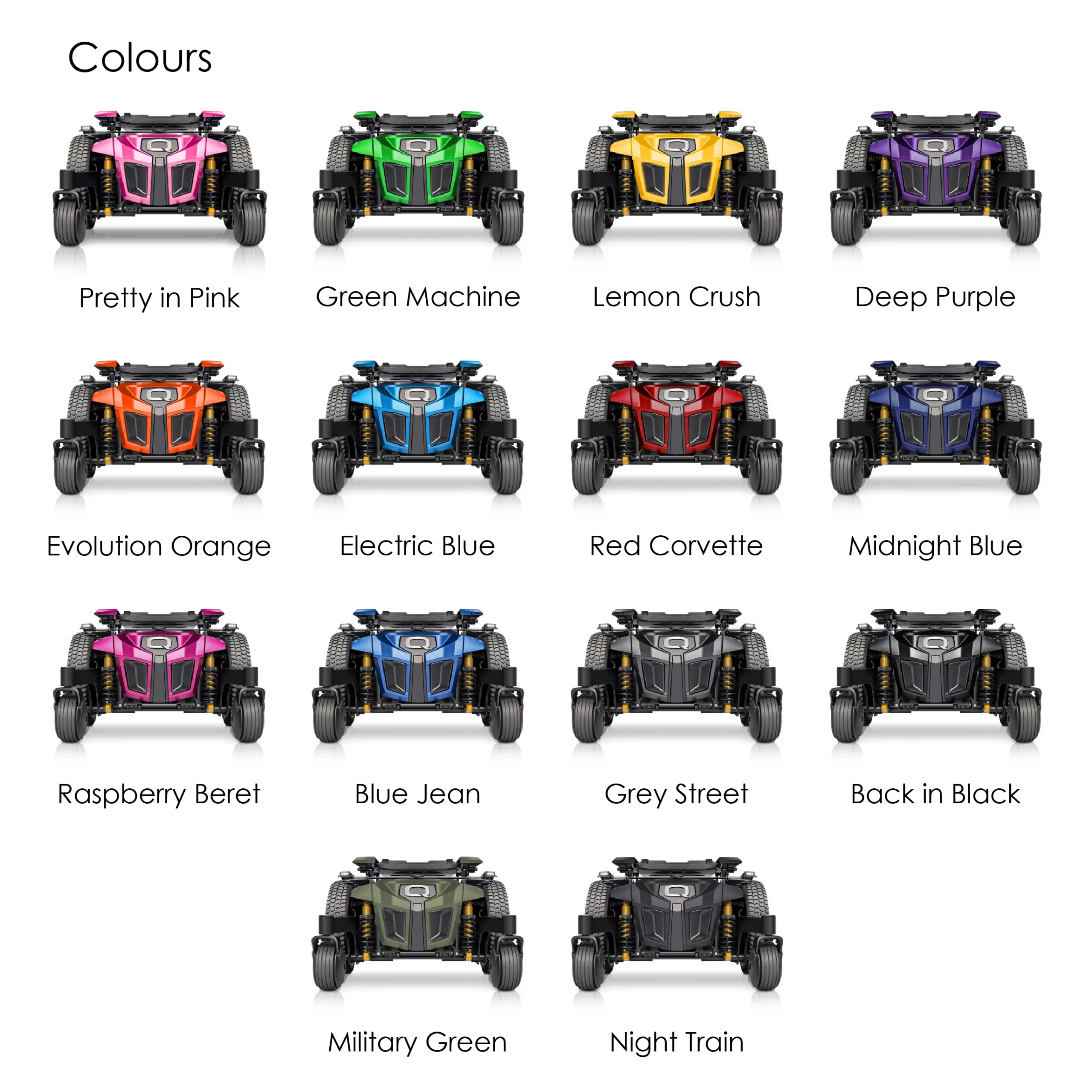

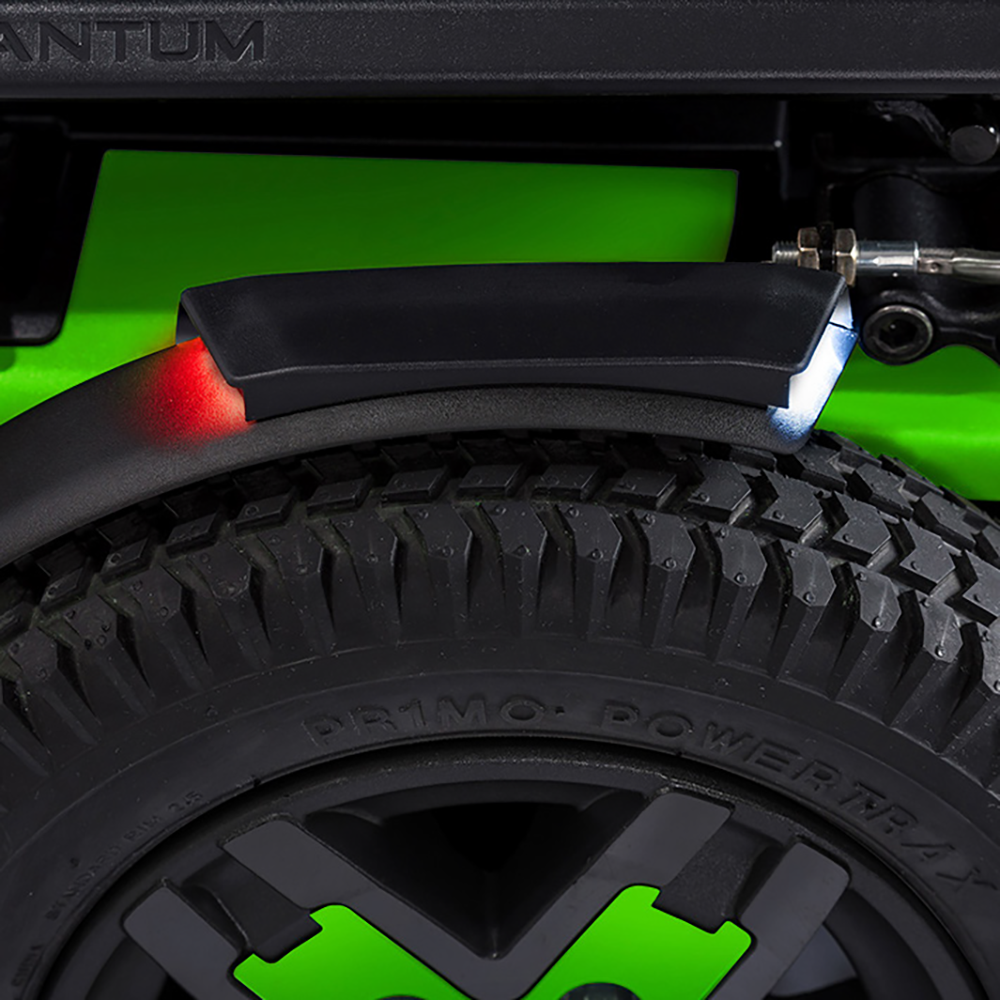

    The Quantum Edge 3 is the culmination of 8 years of product improvement and innovation. Upgraded SRS (Smooth Ride Suspension) provides a smooth, comfortable ride and advanced stability. Optional iLevel is available at 7km/h with up to 300mm of power adjustable seat height. Standard features include LED fender lights, a USB charger, and drive wheel colour accents. The Edge 3 accepts a complete range of seating and electronics options and is available in a total of 14 colour options, including seven brand new, bold colours.

    Features and Benefits

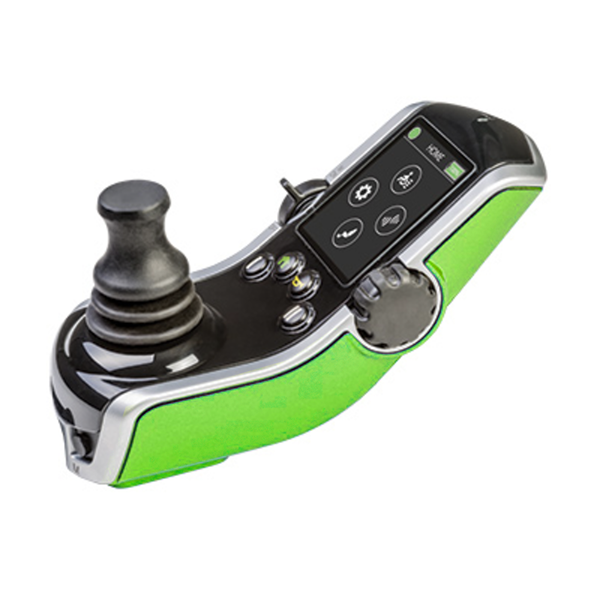

    Q-Logic 3 Advanced Drive Control System

    The Q-Logic 3 Advanced Drive Control System from Quantum Rehab® is like no other power wheelchair electronics system. Designed from clinician and consumer feedback, Q-Logic 3 is user friendly and highly customisable. This adaptable, expandable control system can increase and maximize independence. Q-Logic 3 with Bluetooth® and the infrared (IR) environmental controls enhances your independence.

    Compliance

    ARTG 109840
    AS|NZS 3695.2:2013

    Warranty

    Frame: 36 months limited | Components: 24 months | Motor|gearbox assembly and power seat actuator: 18 months | Accessories: 12 months limited | Bearings and bushes: 6 months limited | Batteries: 12 months

    Specifications
    Total Length 820mm without front riggings
    Base Width 622mm
    Seat Width Static seat: 254mm – 559mm
    Power tilt and tilt|lift: 305mm – 559mm)
    Seat Depth Static seat: 254mm – 559mm
    Power tilt and tilt|lift: 305mm – 559mm)
    Seat to Floor Height Static seat: 419mm – 470mm
    Power tilt: 445mm – 495mm
    Lift and tilt: 445mm – 495mm
    Drive Wheels Standard: 356mm solid
    Optional: 356mm pneumatic
    Castors Front: 152mm solid
    Rear: 152mm solid
    Manual Recline Yes
    Ground Clearance 69mm (battery tray)
    Turning Radius 521mm without front riggings
    Speeds <9.6km/h | 7.24km/h with iLevel activated
    Battery Charger 8A Off-board
    Battery Size NF-22 (2)
    Battery Weight 17.24kg each
    Base Weight 63kg
    SWL 136kg
    Resources

    Product Brochure
    Q-Logic 3 Brochure
    User Manual
    SKU: Q6EDGE Categories: ,
    Description
    Please complete a Referral Assessment Form and submit with your quote request and you will be contacted by a product specialist.

    The Quantum Edge 3 is the culmination of 8 years of product improvement and innovation. Upgraded SRS (Smooth Ride Suspension) provides a smooth, comfortable ride and advanced stability. Optional iLevel is available at 7km/h with up to 300mm of power adjustable seat height. Standard features include LED fender lights, a USB charger, and drive wheel colour accents. The Edge 3 accepts a complete range of seating and electronics options and is available in a total of 14 colour options, including seven brand new, bold colours.

    Features and Benefits
    Q-Logic 3 Advanced Drive Control System

    The Q-Logic 3 Advanced Drive Control System from Quantum Rehab® is like no other power wheelchair electronics system. Designed from clinician and consumer feedback, Q-Logic 3 is user friendly and highly customisable. This adaptable, expandable control system can increase and maximize independence. Q-Logic 3 with Bluetooth® and the infrared (IR) environmental controls enhances your independence.

    Compliance

    ARTG 109840
    AS|NZS 3695.2:2013

    Warranty

    Frame: 36 months limited | Components: 24 months | Motor|gearbox assembly and power seat actuator: 18 months | Accessories: 12 months limited | Bearings and bushes: 6 months limited | Batteries: 12 months

    Specifications
    Total Length 820mm without front riggings
    Base Width 622mm
    Seat Width Static seat: 254mm – 559mm
    Power tilt and tilt|lift: 305mm – 559mm)
    Seat Depth Static seat: 254mm – 559mm
    Power tilt and tilt|lift: 305mm – 559mm)
    Seat to Floor Height Static seat: 419mm – 470mm
    Power tilt: 445mm – 495mm
    Lift and tilt: 445mm – 495mm
    Drive Wheels Standard: 356mm solid
    Optional: 356mm pneumatic
    Castors Front: 152mm solid
    Rear: 152mm solid
    Manual Recline Yes
    Ground Clearance 69mm (battery tray)
    Turning Radius 521mm without front riggings
    Speeds <9.6km/h | 7.24km/h with iLevel activated
    Battery Charger 8A Off-board
    Battery Size NF-22 (2)
    Battery Weight 17.24kg each
    Base Weight 63kg
    SWL 136kg
    Resources

    Product Brochure
    Q-Logic 3 Brochure
    User Manual
    Additional information
    Weight 100 kg
    Dimensions 50 × 50 × 80 cm
    Purchase Type

    Buy
