Quantum® Q6 Edge® HD | Hire Package
SKU:Heavy duty mid wheel drive power wheelchair.
Documentation
This equipment is for scripted hire only. Please complete a Referral Assessment Form and submit it with your quote request. You will be contacted by a product specialist.

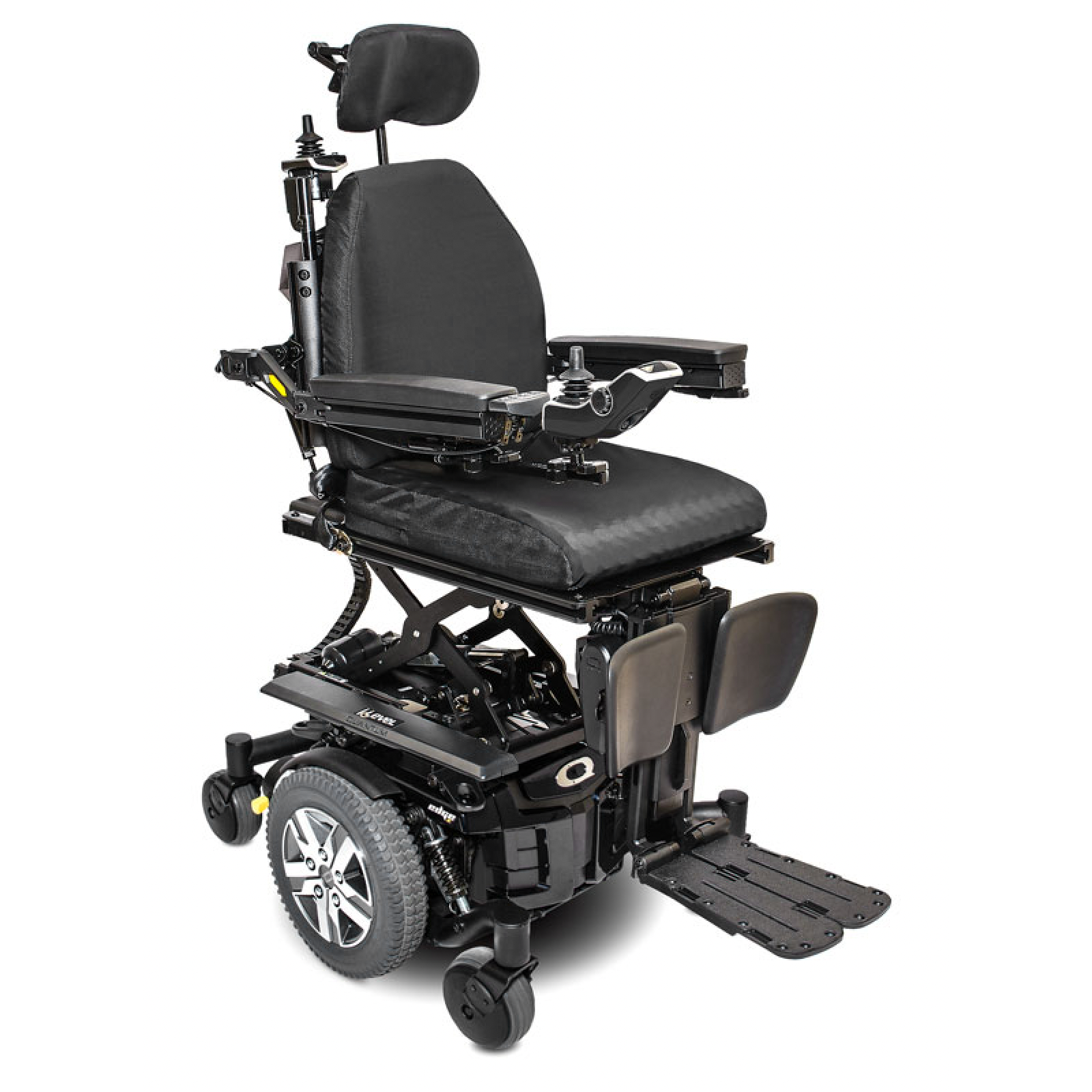

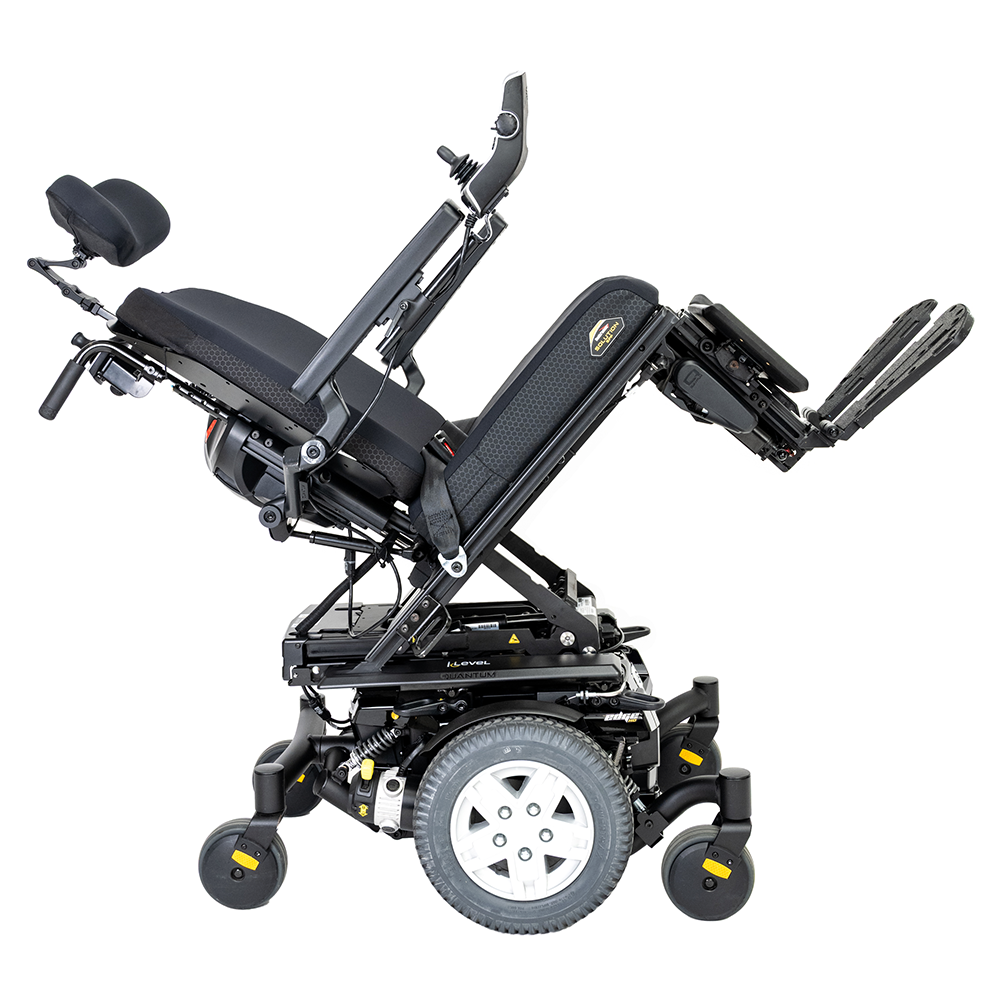

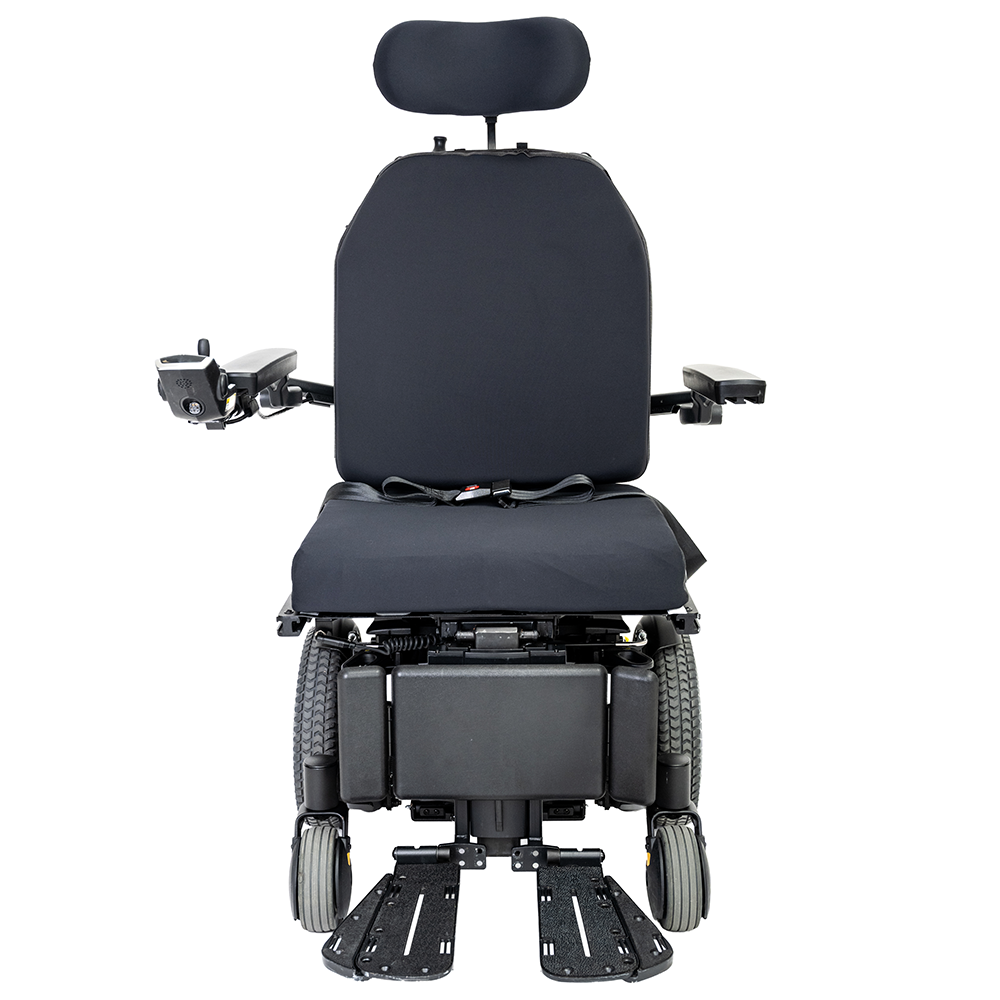

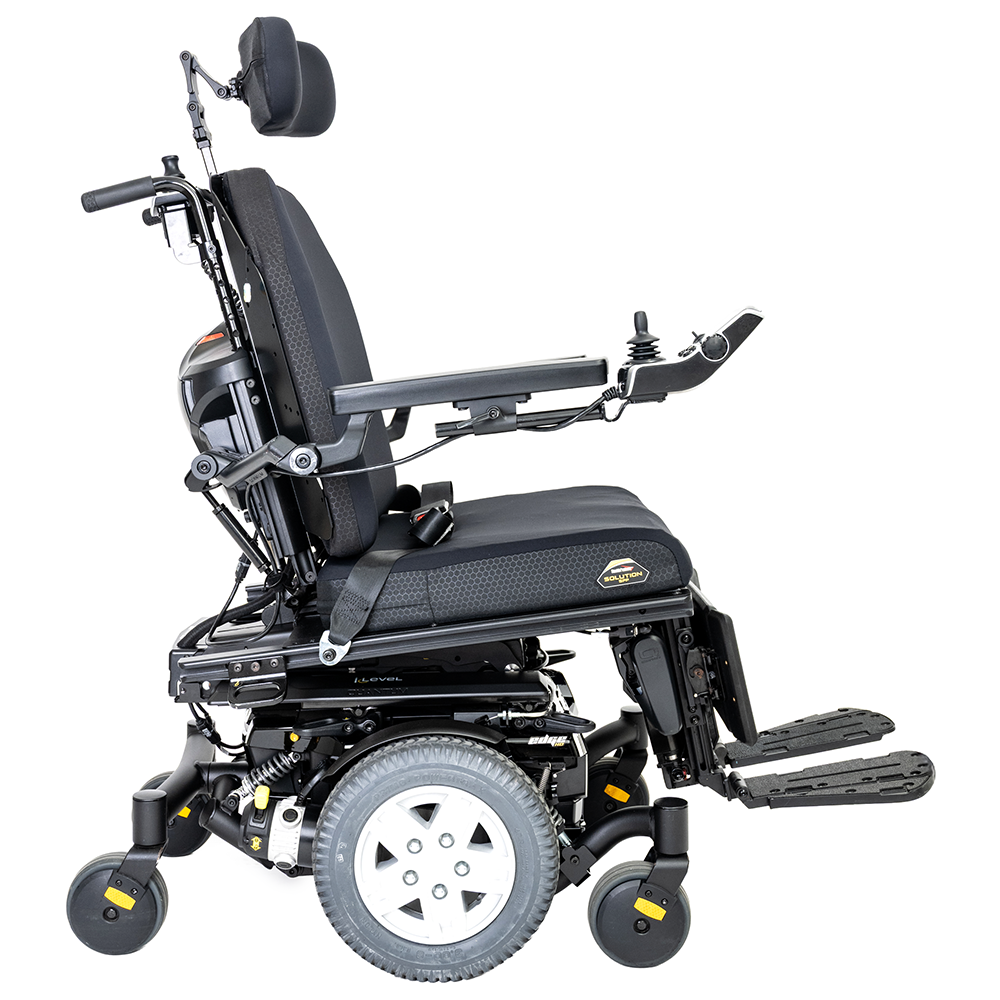

The Q6 Edge HD is engineered to meet the performance needs of the most active user. The Q6 Edge HD accepts a complete range of seating and electronics options to deliver exceptional rehab capability at an excellent value, and is available with our iLevel® technology.
Features and Benefits
- Standard 4-pole motors
- Mid Wheel 6® Drive Design allows six wheels on the ground for maximum stability
- Low impact OMNI-Castors on front and rear prevent wheel hang-ups
- ATX Suspension for enhanced performance over more varied terrain
- Q-Logic 3
- iLevel included as standard when hiring
Included in Package
- Quantum Q6 Edge® HD: WCH660
- Quantum Q6 Edge® HD Charger: WCH1000
- Quantum Tru-Comfort back cushion: BAR800
- Stealth Spectrum Foam SPP Cushion | 55.88cm x 50.8cm: BAR799
- Stealth Comfort Plus Headrest | 30.48cm: BAR798
NOTE: An alternative cushion and or headrest will incur additional hire fees.
Compliance
ARTG 109840
AS|NZS 3695.2:2013
Specifications
| Total Length | 904mm without front riggings |
| Base Width | 666.8mm |
| Seat Width | 508mm – 609.6mm |
| Seat Depth | 508mm – 609.6mm |
| Drive Wheels | Standard: 356mm |
| Castors | 152.4mm |
| Manual Recline | Yes |
| Ground Clearance | 76.2mm |
| Turning Radius | 502mm without front riggings |
| Speeds | <7.6km/h |
| Range | <25km |
| Battery Charger | 8A Off-board |
| Battery Size | Group 24 (70Ah) |
| Battery Weight | 23.6kg each |
| Base Weight exc. Batteries | 65kg |

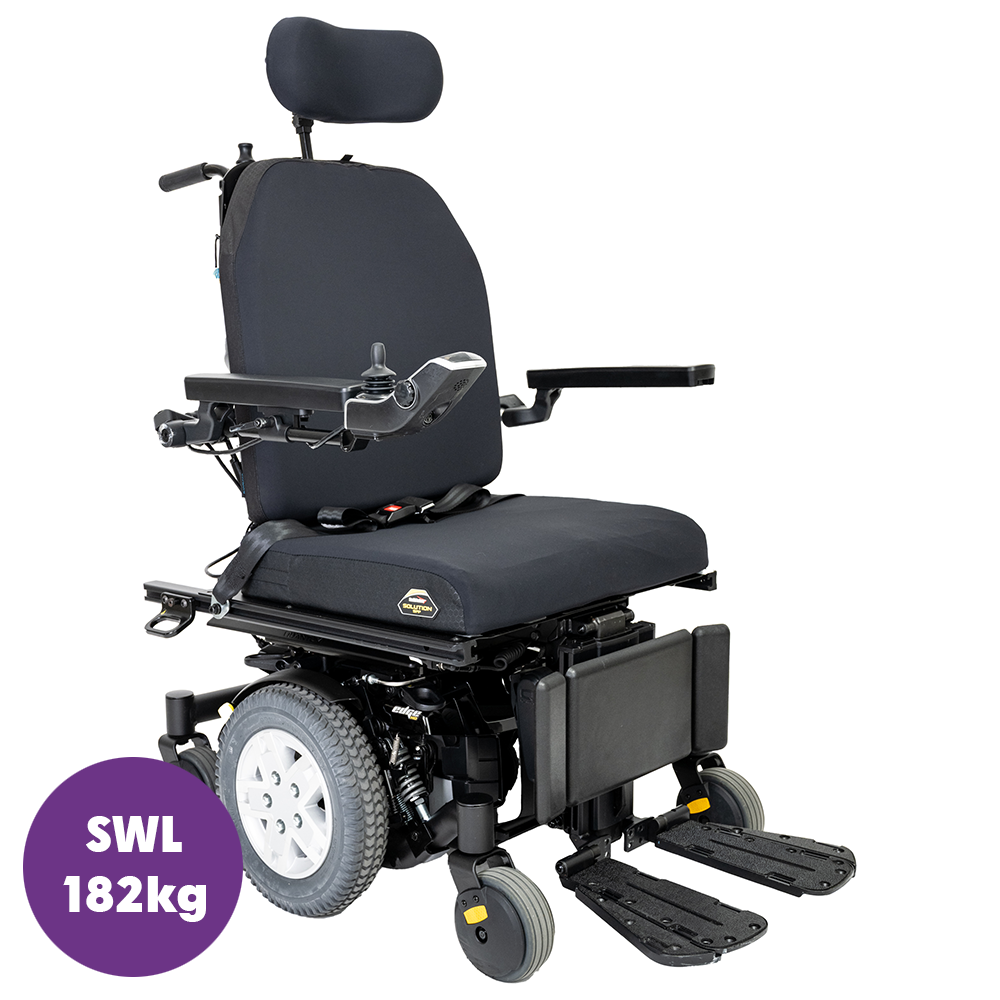

| SWL | 181kg iLevel |
Description
This equipment is for scripted hire only. Please complete a Referral Assessment Form and submit it with your quote request. You will be contacted by a product specialist.
The Q6 Edge HD is engineered to meet the performance needs of the most active user. The Q6 Edge HD accepts a complete range of seating and electronics options to deliver exceptional rehab capability at an excellent value, and is available with our iLevel® technology.
Features and Benefits
- Standard 4-pole motors
- Mid Wheel 6® Drive Design allows six wheels on the ground for maximum stability
- Low impact OMNI-Castors on front and rear prevent wheel hang-ups
- ATX Suspension for enhanced performance over more varied terrain
- Q-Logic 3
- iLevel included as standard when hiring
Included in Package
- Quantum Q6 Edge® HD: WCH660
- Quantum Q6 Edge® HD Charger: WCH1000
- Quantum Tru-Comfort back cushion: BAR800
- Stealth Spectrum Foam SPP Cushion | 55.88cm x 50.8cm: BAR799
- Stealth Comfort Plus Headrest | 30.48cm: BAR798
NOTE: An alternative cushion and or headrest will incur additional hire fees.
Compliance
ARTG 109840
AS|NZS 3695.2:2013
Specifications
| Total Length | 904mm without front riggings |
| Base Width | 666.8mm |
| Seat Width | 508mm – 609.6mm |
| Seat Depth | 508mm – 609.6mm |
| Drive Wheels | Standard: 356mm |
| Castors | 152.4mm |
| Manual Recline | Yes |
| Ground Clearance | 76.2mm |
| Turning Radius | 502mm without front riggings |
| Speeds | <7.6km/h |
| Range | <25km |
| Battery Charger | 8A Off-board |
| Battery Size | Group 24 (70Ah) |
| Battery Weight | 23.6kg each |
| Base Weight exc. Batteries | 65kg |
| SWL | 181kg iLevel |
Additional information
| Weight | 100 kg |
|---|---|
| Dimensions | 60 × 60 × 150 cm |
| Purchase Type | Hire |
