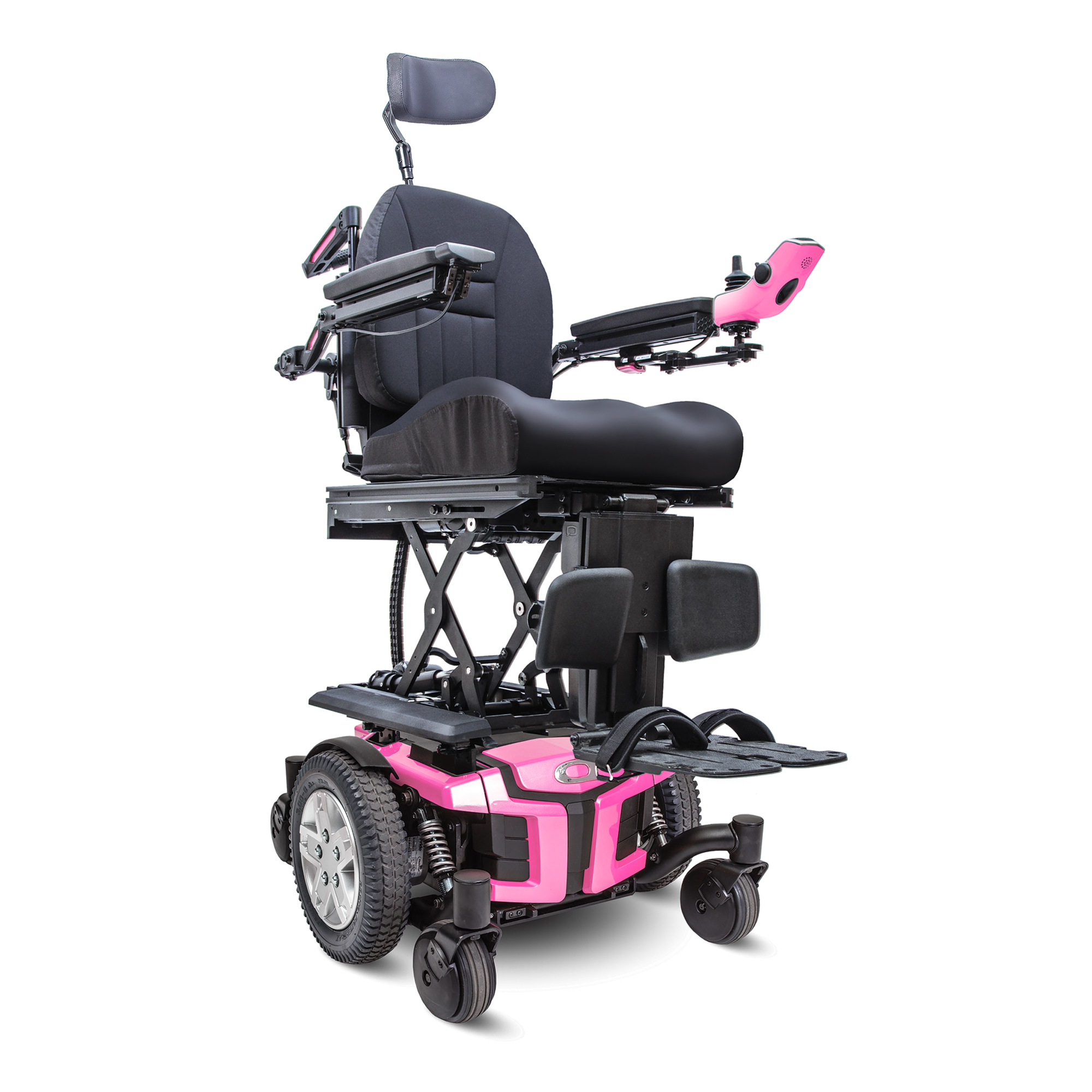

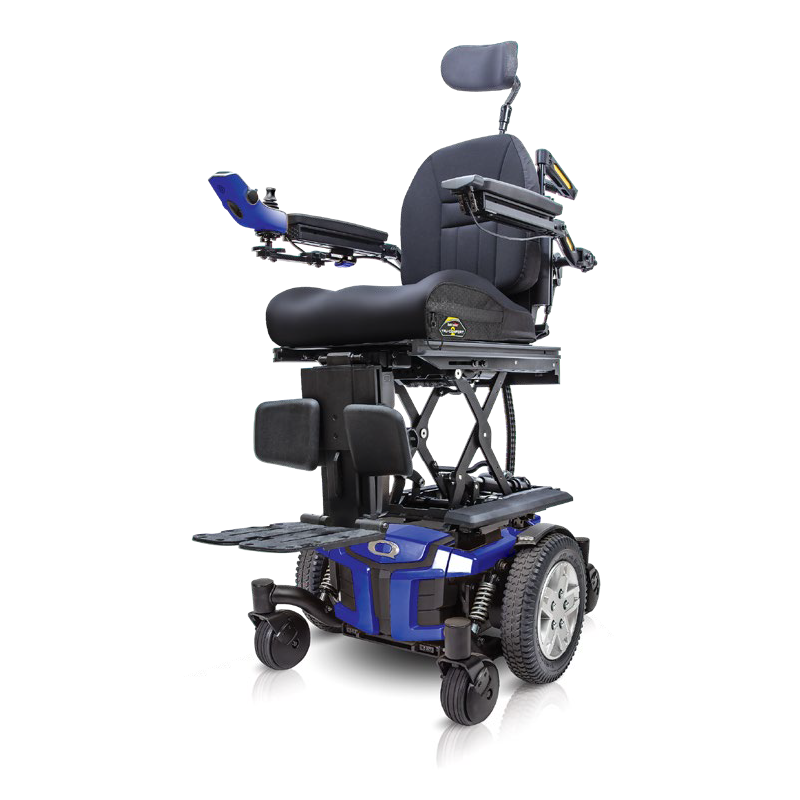

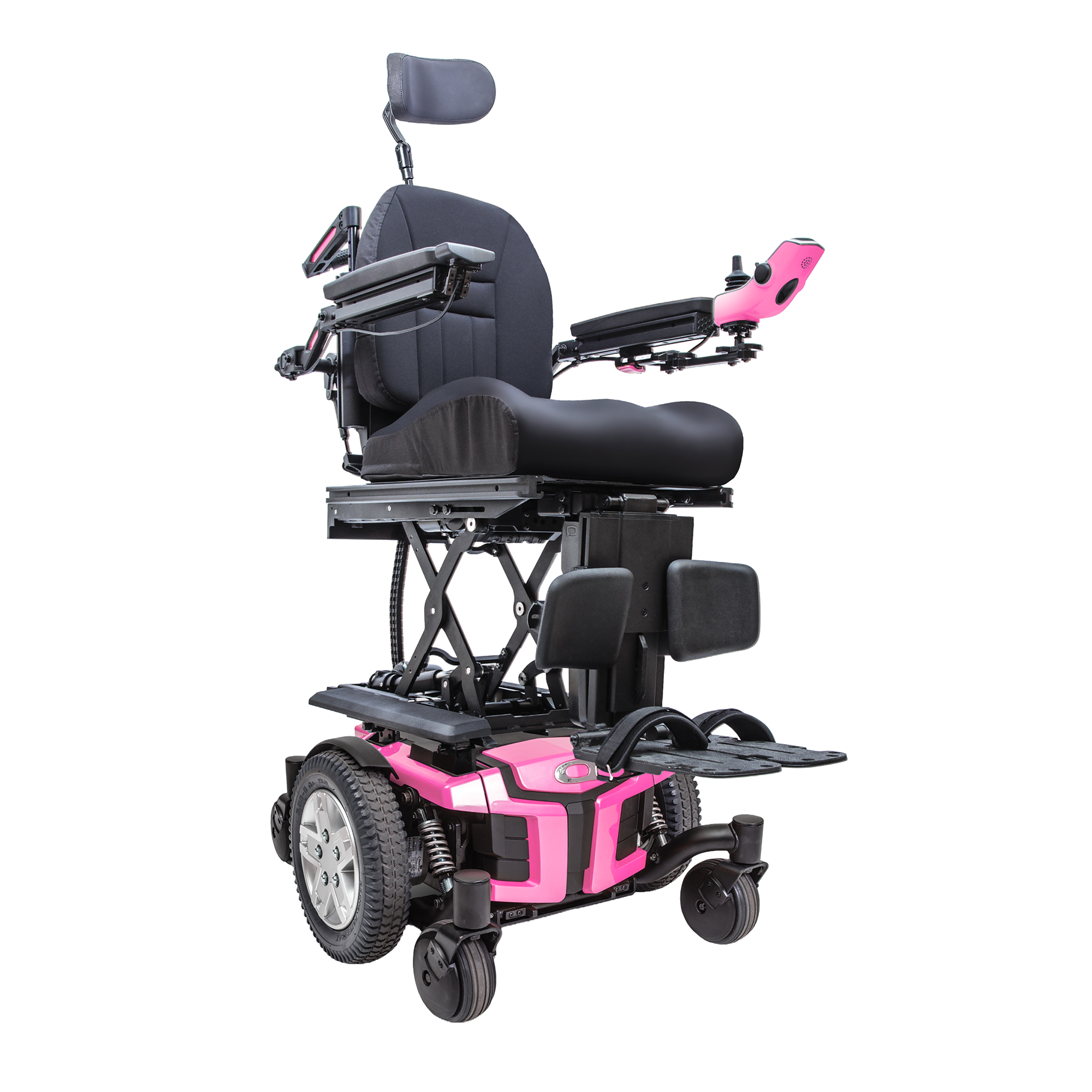

Quantum® Q6 Edge® HD

SKU: Q6EDGEHD

Heavy duty mid wheel drive power wheelchair.

    Request a Quote

    Request product information or a quote by filling out the form below and we will get back to you as soon as possible.

    Please upload your completed Rehab Referral Assessment Form (if applicable) and/or completed NDIS Service Agreement Form (if applicable) by clicking a button below (one file per button).

    Please complete a Referral Assessment Form and submit with your quote request and you will be contacted by a product specialist.

    The Q6 Edge® HD is engineered to meet the performance needs of the most active user. The Q6 Edge HD accepts a complete range of seating and electronics options to deliver exceptional rehab capability at an excellent value, and is available with our iLevel® technology.

    Features and Benefits
    • Standard 4-pole motors
    • Mid Wheel 6® Drive Design allows six wheels on the ground for maximum stability
    • Low impact OMNI-Castors on front and rear prevent wheel hang ups
    • ATX Suspension for enhanced performance over more varied terrain
    • iLevel® option available
    • Q-Logic 3 option available
    • Compatible with TRU-Balance® 3 HD Power Positioning Systems
    Q-Logic 3 Advanced Drive Control System

    The Q-Logic 3 Advanced Drive Control System from Quantum Rehab® is like no other power wheelchair electronics system. Designed from clinician and consumer feedback, Q-Logic 3 is user friendly and highly customisable. This adaptable, expandable control system can increase and maximize independence. Q-Logic 3 with Bluetooth® and the infrared (IR) environmental controls enhances your independence.

    About iLevel® Power Chairs

    iLevel® improves daily functionality and quality of life by allowing operation of the power chair with the seat fully elevated while at walking speed (at 7.24km/h).  iLevel’s patented Extra Stability Technology® enhances safety for transfers, reach, and numerous other activities of daily living.

    Compliance

    ARTG 109840
    AS|NZS 3695.2:2013

    Warranty

    Frame: Lifetime limited | Electronic components: 24 months limited | Motor|gearbox assembly and power seat actuator: 18 months limited | Accessories: 12 months limited | Bearings and bushes: 6 months limited | Batteries: 12 months

    Specifications
    Total Length 904mm without front riggings
    Base Width 666.8mm
    Seat Width Synergy Seat: 510mm – 710mm
    TRU-Balance® 2: 510mm – 710mm
    TRU-Balance® 3: 510mm – 710mm
    High Back Seat: 510mm – 710mm
    Medium Back Seat: 510mm – 710mm
    Seat Depth Synergy Seat: 510mm – 710mm
    TRU-Balance® 2: 510mm – 710mm
    TRU-Balance® 3: 510mm – 635mm
    High Back Seat: 510mm – 710mm
    Medium Back Seat: 510mm – 710mm
    Seat to Floor Height Static seat: 419mm – 470mm
    Power tilt: 470mm – 520.7mm
    Lift and tilt: 470mm – 520.7mm
    Drive Wheels Standard: 356mm
    Castors 152.4mm
    Manual Recline Yes
    Ground Clearance 76.2mm
    Turning Radius 502mm without front riggings
    Speeds <7.6km/h
    Range <25km
    Battery Charger 8A Off-board
    Battery Size Group 24 (70Ah)
    Battery Weight 23.6kg each
    Base Weight exc. Batteries 65kg

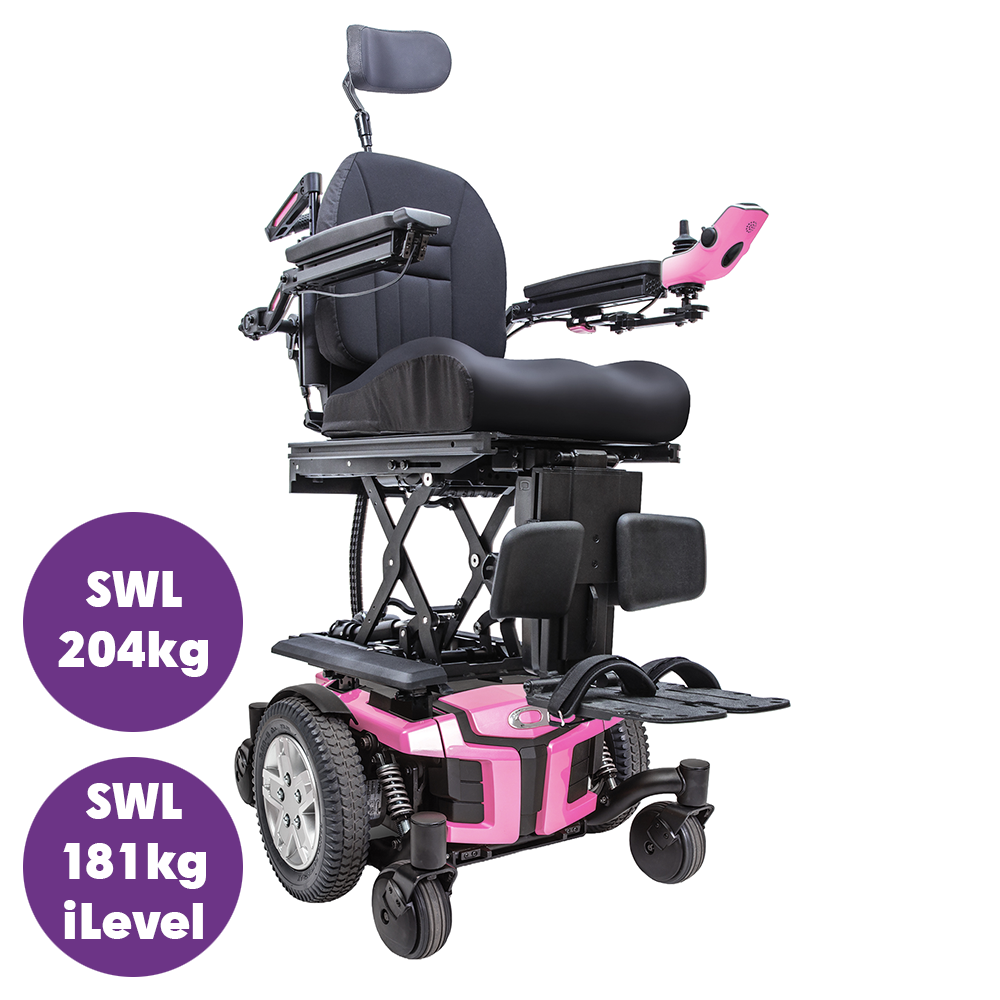

    SWL 204kg | 181kg iLevel
    Resources
    Product Brochure
    Q-Logic 3 Brochure
    User Manual
    SKU: Q6EDGEHD Categories: ,
