Raz-AT Attendant Tilt Shower Commode Chair
SKU: RAZ-ATScripted attendant propelled tilt shower commode chair.
Please complete a Referral Assessment Form and submit it with your quote request. A product specialist will contact you.

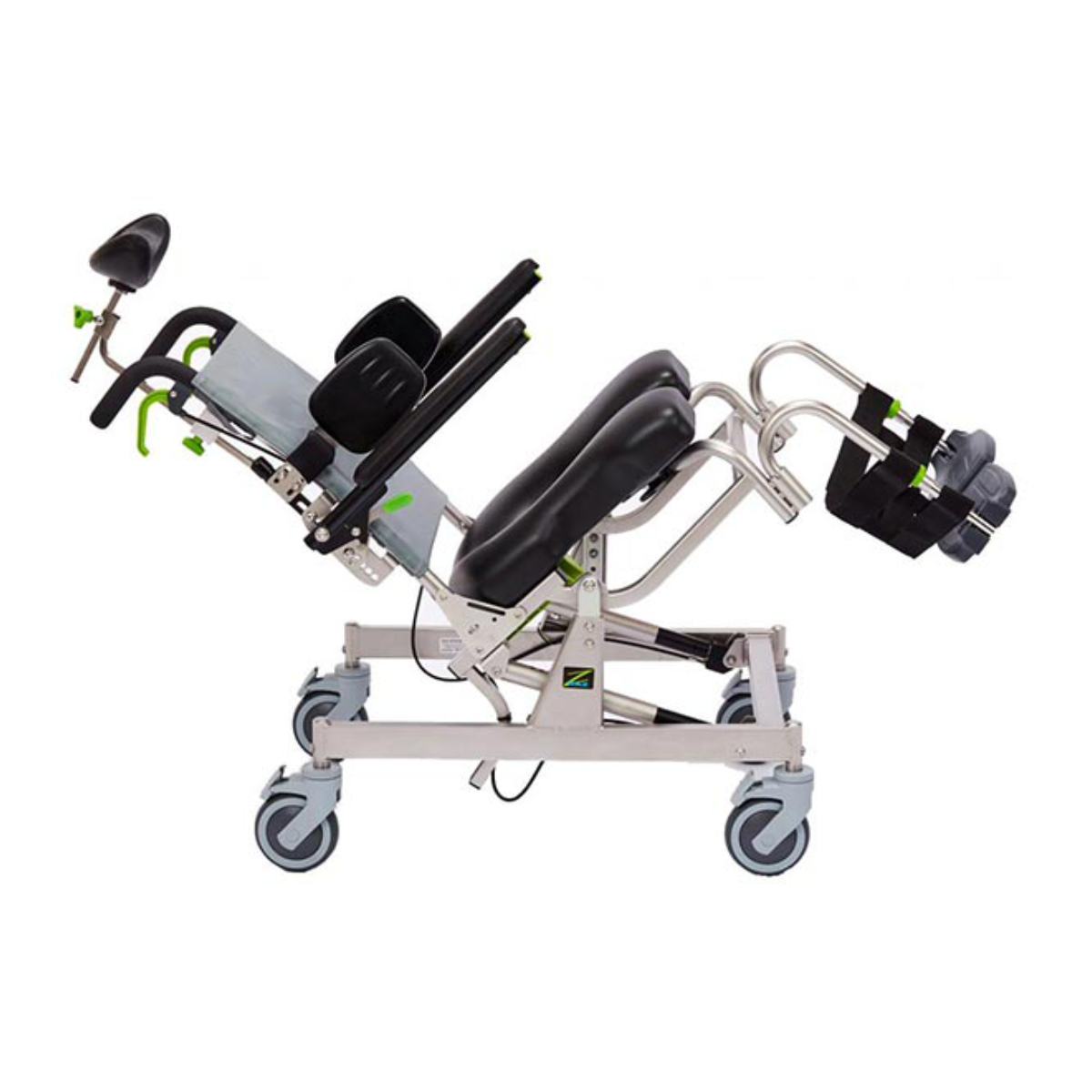

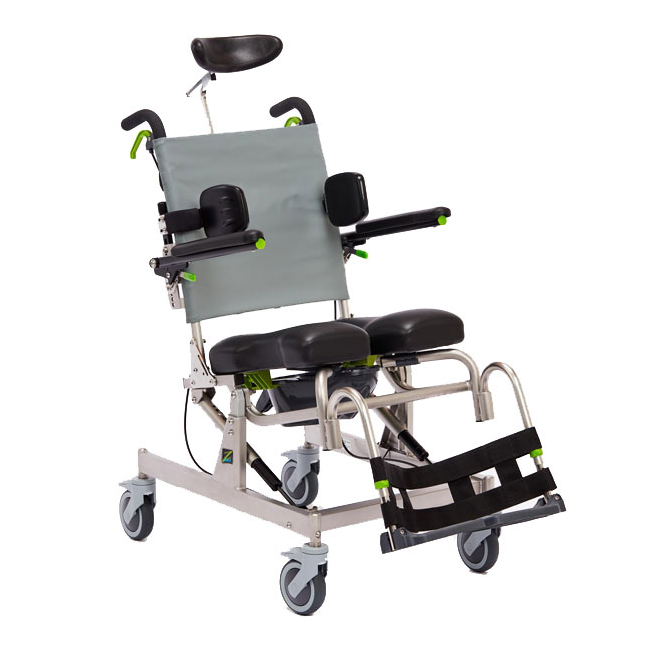

The Raz-AT (Attendant Tilt) mobile shower commode chair tilts up to 40° to provide extra pressure reduction and comfort. The unique frame design utilises locking gas springs that help lift the seat to an upright position, making the Raz-AT one of the easiest tilting mobile shower chairs to operate.
The Raz-AT mobile shower commode chair comes standard with the Ischial & Pelvic Alignment System (IPAS), 101.6mm of height adjustment, adjustable-tension back upholstery, moulded headrest and fixture, 127mm dual-locking casters, flip-up padded armrests, and a commode pan. The easy-to-clean, polished stainless steel frame fits over most toilets and is designed for easy side and front access by the user or attendant.
Features and Benefits
- Tilt function
- Moulded seat
- Adjustable footrests
- Ischial pelvic alignment system
- Fixed back
- Adjustable pivot posts
- Headrest

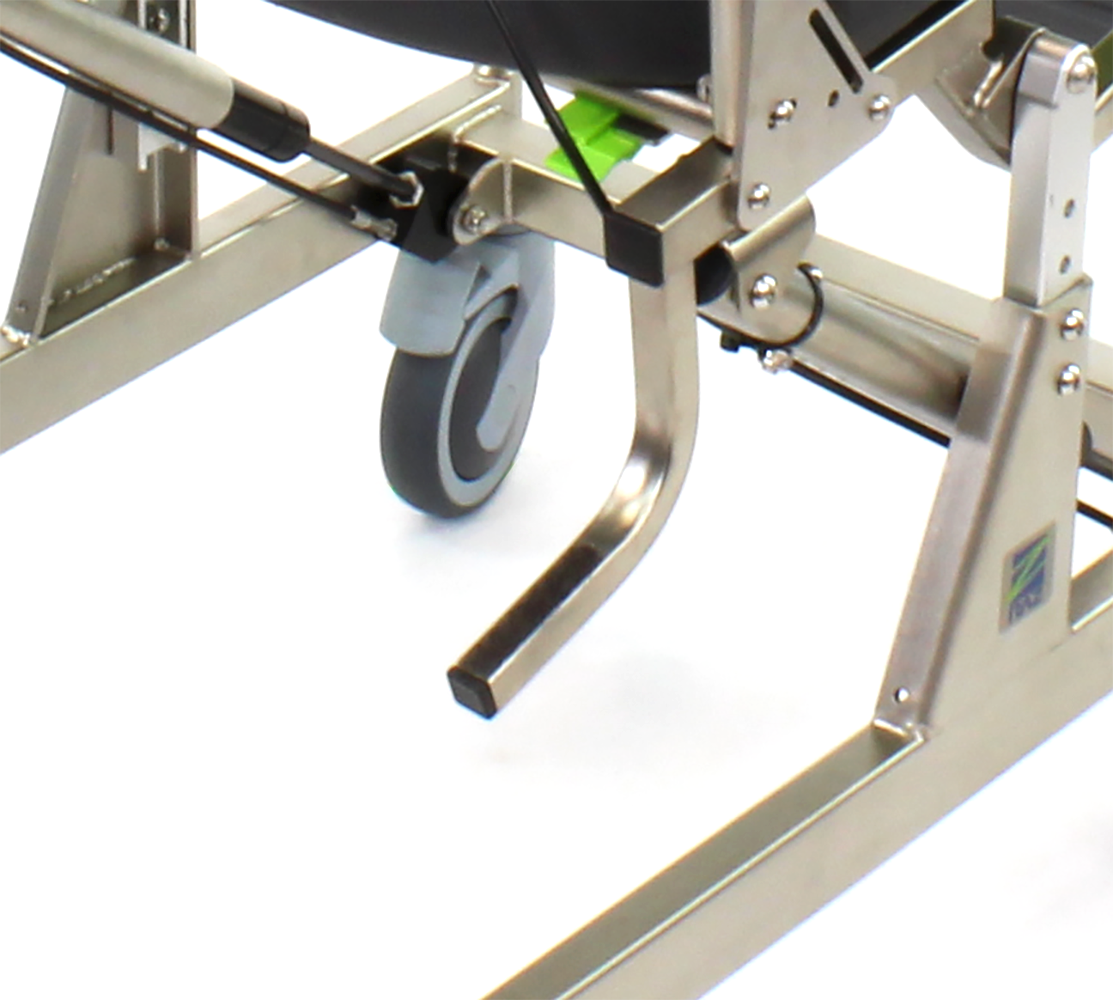

- Tilt assist pedal
- Commode pan
Compliance
ARTG 169562
AS|NZS 3973:2009
Warranty
Frame: 2 years limited | Components: 12 months limited | Stainless steel: lifetime against corrosion
Specifications
Total Length with footrests | 990mm |
Total Width with standard arm pad | 570mm |
Frame Width | seat and back frame | 460mm |
Seat Width | commode seat | 460mm |
Seat Depth | front of back post to front of seat | 400mm or 4830mm |
Seat to Floor Height | 540mm – 640mm |
Clearance Height Under Seat | 430mm – 530mm with pan brackets 450mm – 550mm in 25.4mm increments |
Armrest Height Above Seat | 508mm Adjusta-back | 190mm – 270mm |
Head Support | standard: small | W: 254mm | H: 101.6mm |
Frame and Hardware Material | Stainlesss Steel |
Weight | 28kg |
SWL | 160kg |
