Raz-AT Attendant Tilt Shower Commode Chair | Hire Package
SKU:Complex attendant propelled tilt shower commode chair.
Please complete a Referral Assessment Form and submit it with your quote request. A product specialist will contact you.

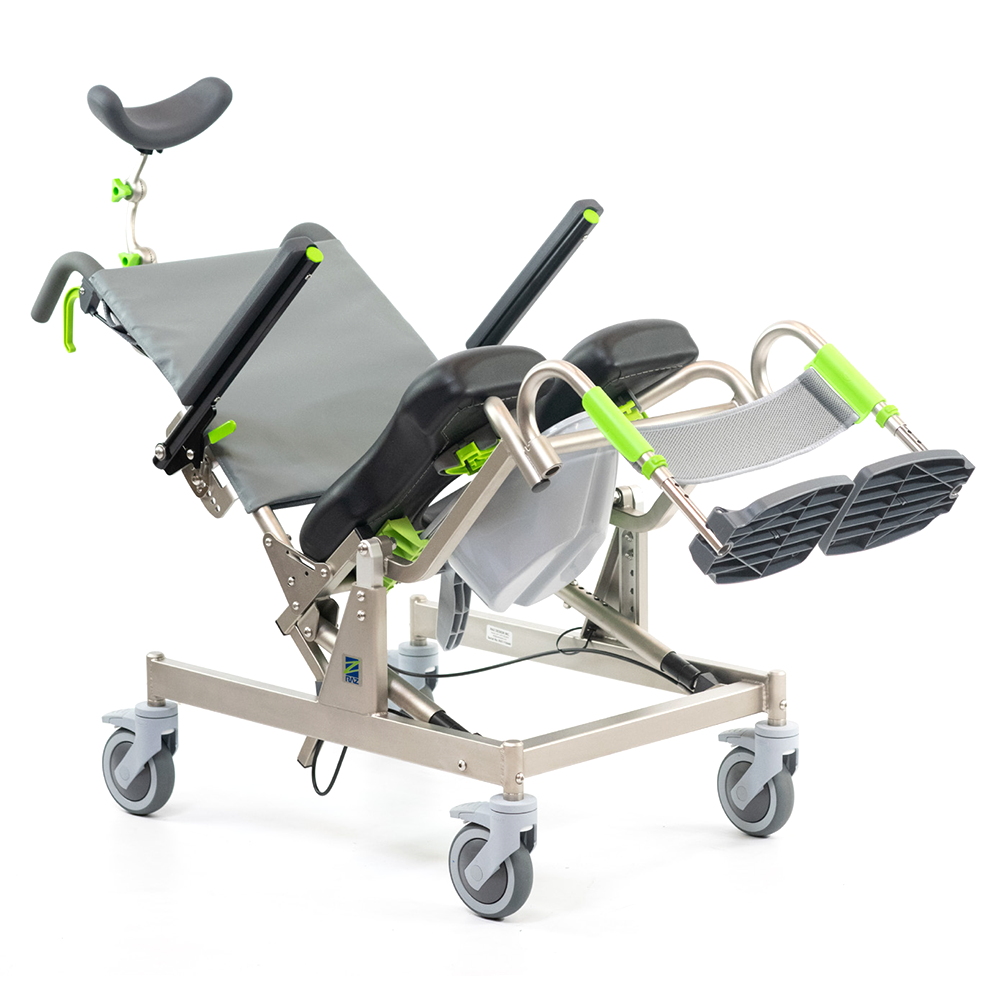

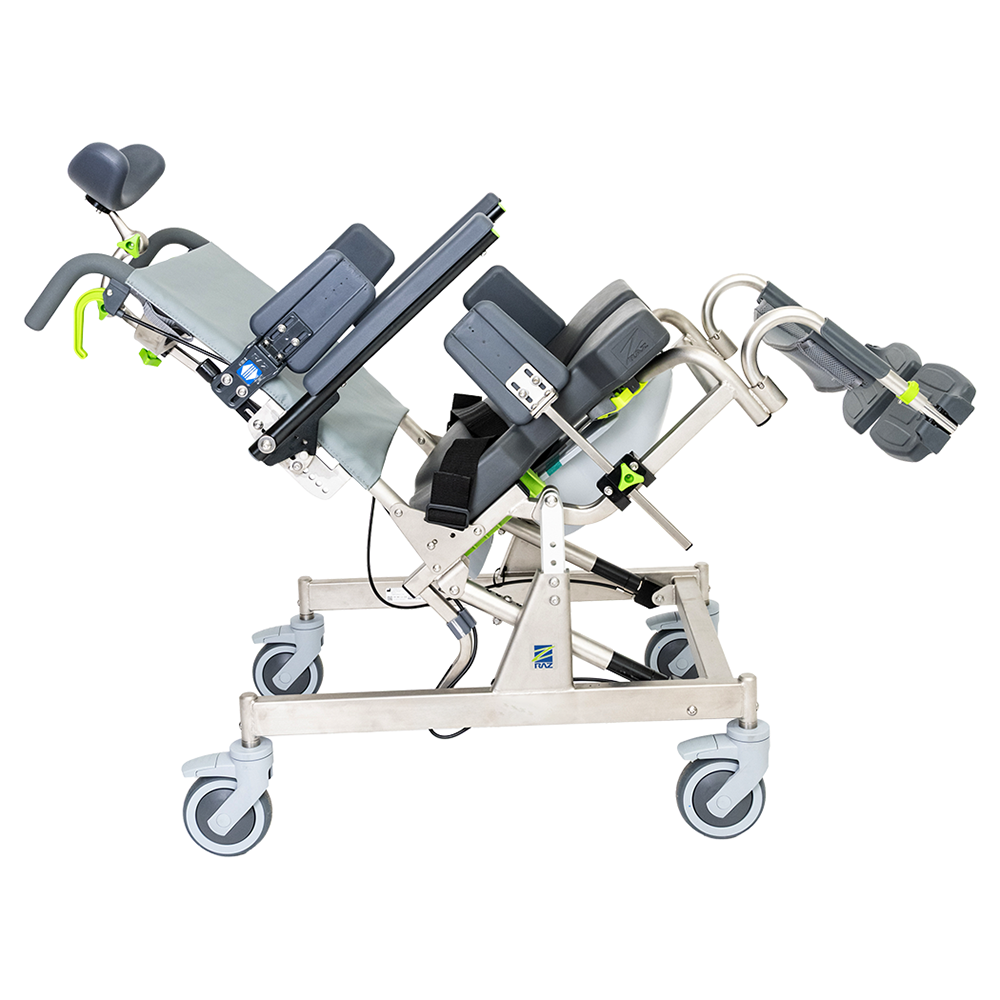

The Raz-AT mobile shower commode chair tilts up to 40° to provide extra pressure reduction and comfort. The unique frame design utilises locking gas springs that help lift the seat to an upright position, making the Raz-AT one of the easiest tilting mobile shower chairs to operate.
The Raz-AT mobile shower commode chair comes standard with the Ischial & Pelvic Alignment System (IPAS), 4” of height adjustment, adjustable-tension back upholstery, moulded headrest and fixture, 5” dual-locking casters, flip-up padded armrests, and a commode pan. The easy-to-clean, polished stainless steel frame fits over most toilets and is designed for easy access from the side and front by the user or attendant.
Features and Benefits
- Tilt function
- Molded seat
- Adjustable footrests
- Ischial pelvic alignment system
- Adjustable pivot posts
- Headrest
- Tilt assist pedal
- Commode pan
Included in Package
- Small head support
- Adjusta back
- Flip-up arm supports
- Lateral thoracic support
- Pelvic belt
- Leg adductors
- BodyPoint Aeromesh calf strap
- Front access moulded seat
- Pan and lid
Compliance
ARTG 169562
AS/NZS 3973:2009
Specifications
| Total Length with footrests | 990mm |
| Total Width with standard arm pad | 570mm |
| Frame Width | seat and back frame | 460mm |
| Seat Width | commode seat | 457.2mm |
| Seat Depth | front of back post to front of seat | 406.4mm – 457.2mm |
| Seat to Floor Height | 540mm – 640mm |
| Clearance Height Under Seat
|
430mm – 530mm with pan brackets 450mm – 550mm in 25.4mm increments |
| Armrest Height Above Seat | 20″ Adjusta-back | 190mm – 270mm |
| Head Support | standard: small | W: 254mm | H: 101.6mm |
| Frame and Hardware Material | Stainlesss Steel |
| Weight | 28kg |
| SWL | 160kg |
Resources
Product Range Brochure
User Manual
Description
Please complete a Referral Assessment Form and submit it with your quote request. A product specialist will contact you.
The Raz-AT mobile shower commode chair tilts up to 40° to provide extra pressure reduction and comfort. The unique frame design utilises locking gas springs that help lift the seat to an upright position, making the Raz-AT one of the easiest tilting mobile shower chairs to operate.
The Raz-AT mobile shower commode chair comes standard with the Ischial & Pelvic Alignment System (IPAS), 4” of height adjustment, adjustable-tension back upholstery, moulded headrest and fixture, 5” dual-locking casters, flip-up padded armrests, and a commode pan. The easy-to-clean, polished stainless steel frame fits over most toilets and is designed for easy access from the side and front by the user or attendant.
Features and Benefits
- Tilt function
- Molded seat
- Adjustable footrests
- Ischial pelvic alignment system
- Adjustable pivot posts
- Headrest
- Tilt assist pedal
- Commode pan
Included in Package
- Small head support
- Adjusta back
- Flip-up arm supports
- Lateral thoracic support
- Pelvic belt
- Leg adductors
- BodyPoint Aeromesh calf strap
- Front access moulded seat
- Pan and lid
Compliance
ARTG 169562
AS/NZS 3973:2009
Specifications
| Total Length with footrests | 990mm |
| Total Width with standard arm pad | 570mm |
| Frame Width | seat and back frame | 460mm |
| Seat Width | commode seat | 457.2mm |
| Seat Depth | front of back post to front of seat | 406.4mm – 457.2mm |
| Seat to Floor Height | 540mm – 640mm |
| Clearance Height Under Seat
|
430mm – 530mm with pan brackets 450mm – 550mm in 25.4mm increments |
| Armrest Height Above Seat | 20″ Adjusta-back | 190mm – 270mm |
| Head Support | standard: small | W: 254mm | H: 101.6mm |
| Frame and Hardware Material | Stainlesss Steel |
| Weight | 28kg |
| SWL | 160kg |
Resources
Product Range Brochure
User Manual
Additional information
| Purchase Type | Hire |
|---|---|
| Size | 46cm x 46cm |
