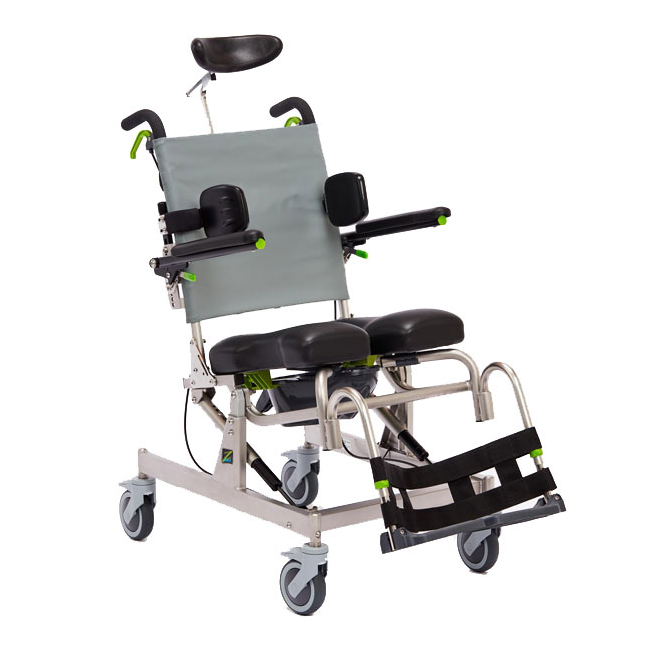

Raz AT Attendant Tilt Shower Commode Chair
SKU: RAZ-ATPrescription shower commode chair.
Please complete a Referral Assessment Form and submit with your quote request and you will be contacted by a product specialist.

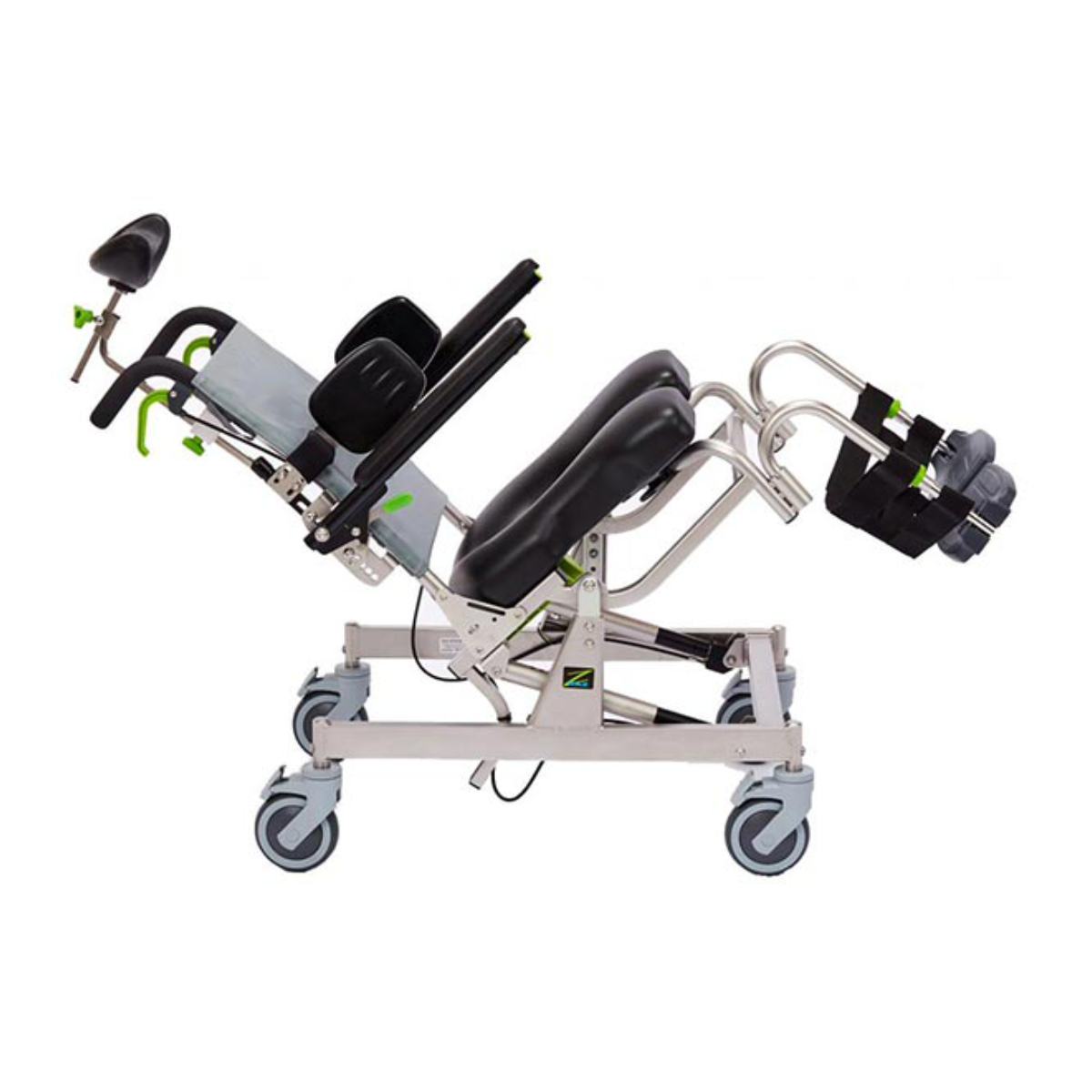

The Raz-AT (Attendant Tilt) mobile shower commode chair tilts up to 40° to provide extra pressure reduction and comfort. The unique frame design utilizes locking gas springs that help lift the seat to an upright position, making the Raz-AT one of the easiest tilting mobile shower chairs to operate.
The Raz-AT mobile shower commode chair comes standard with the Ischial & Pelvic Alignment System (IPAS), 4” of height adjustment, adjustable-tension back upholstery, molded headrest and fixture, 5” dual-locking casters, flip-up padded armrests, and a commode pan. The easy-to-clean, polished stainless steel frame fits over most toilets and is designed for easy side and front access by the user or attendant.
Features and Benefits
- Tilt function
- Molded seat
- Adjustable footrests
- Ischial pelvic alignment system
- Fixed back
- Adjustable pivot posts
- Headrest

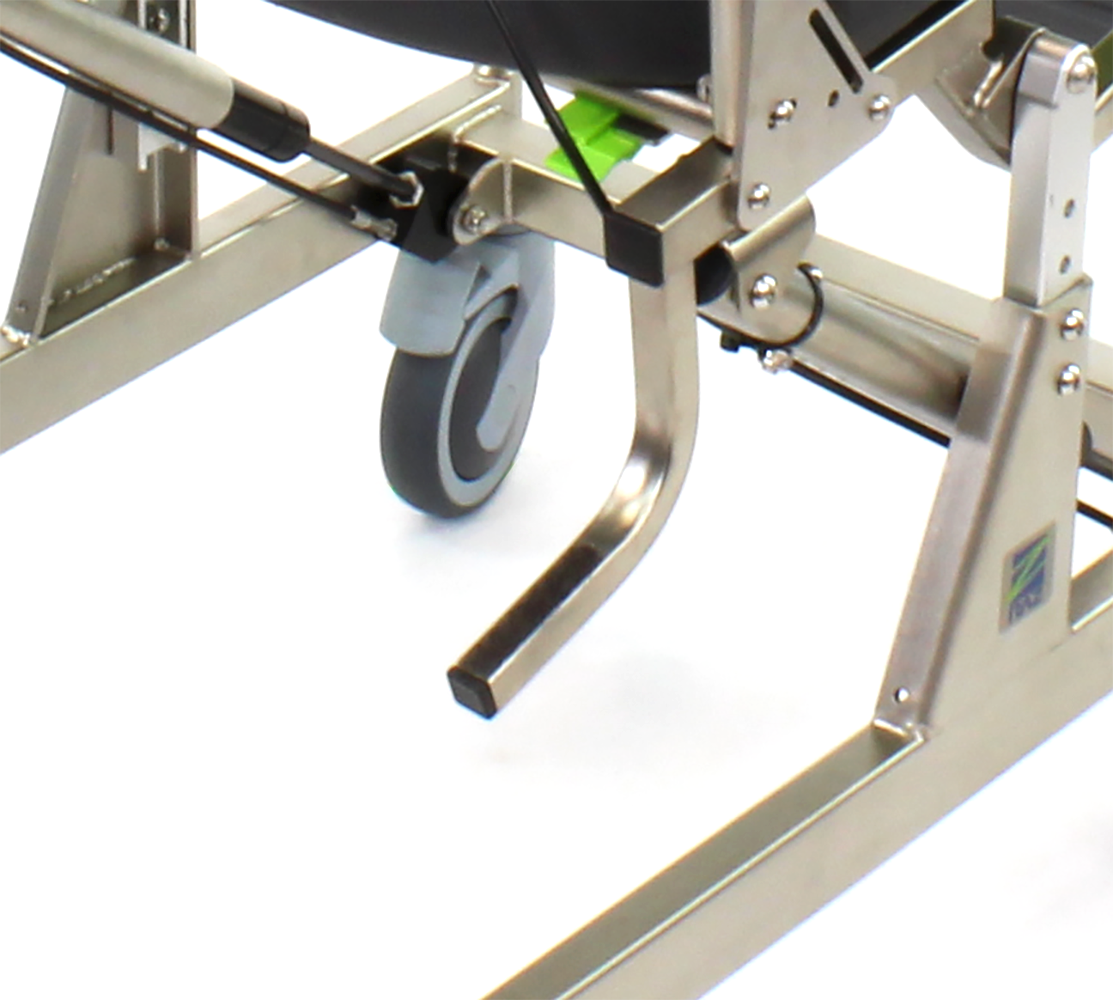

- Tilt assist pedal
- Commode pan
Compliance
ARTG 169562
AS/NZS 3973:2009
Warranty
2 year limited | components: 12 months | corrosion: lifetime
Specifications
Total Length (with footrests) | 990mm |
Total Width (with standard arm pad) | 570mm |
Frame Width (seat and back frame) | 460mm |
Seat Width (commode seat) | 460mm |
Seat Depth (front of back post to front of seat) | 400mm or 4830mm |
Seat to Floor Height | 540mm – 640mm |
Clearance Height Under Seat | 430mm – 530mm with pan brackets 450mm – 550mm in 1″ increments |
Armrest Height Above Seat (20″ Adjust-Back) | 110kg |
Frame and Hardware Material | Stainlesss Steel |
Weight | 28kg |
SWL | 160kg |
Resources
Product Range Brochure
Please complete a Referral Assessment Form and submit with your quote request and you will be contacted by a product specialist.
The Raz-AT (Attendant Tilt) mobile shower commode chair tilts up to 40° to provide extra pressure reduction and comfort. The unique frame design utilizes locking gas springs that help lift the seat to an upright position, making the Raz-AT one of the easiest tilting mobile shower chairs to operate.
The Raz-AT mobile shower commode chair comes standard with the Ischial & Pelvic Alignment System (IPAS), 4” of height adjustment, adjustable-tension back upholstery, molded headrest and fixture, 5” dual-locking casters, flip-up padded armrests, and a commode pan. The easy-to-clean, polished stainless steel frame fits over most toilets and is designed for easy side and front access by the user or attendant.
Features and Benefits
- Tilt function
- Molded seat
- Adjustable footrests
- Ischial pelvic alignment system
- Fixed back
- Adjustable pivot posts
- Headrest
- Tilt assist pedal
- Commode pan
Compliance
ARTG 169562
AS/NZS 3973:2009
Warranty
2 year limited | components: 12 months | corrosion: lifetime
Specifications
Total Length (with footrests) | 990mm |
Total Width (with standard arm pad) | 570mm |
Frame Width (seat and back frame) | 460mm |
Seat Width (commode seat) | 460mm |
Seat Depth (front of back post to front of seat) | 400mm or 4830mm |
Seat to Floor Height | 540mm – 640mm |
Clearance Height Under Seat | 430mm – 530mm with pan brackets 450mm – 550mm in 1″ increments |
Armrest Height Above Seat (20″ Adjust-Back) | 110kg |
Frame and Hardware Material | Stainlesss Steel |
Weight | 28kg |
SWL | 160kg |
Resources
Product Range Brochure
Weight | 100 kg |
---|---|
Dimensions | 50 × 50 × 80 cm |
Purchase Type | Buy |
