Raz-AT600 Bariatric Tilt Shower Chair | Hire Package
SKU:Complex attendant propelled bariatric tilt shower commode chair.
Please complete a Referral Assessment Form and submit with your quote request. A product specialist will contact you.

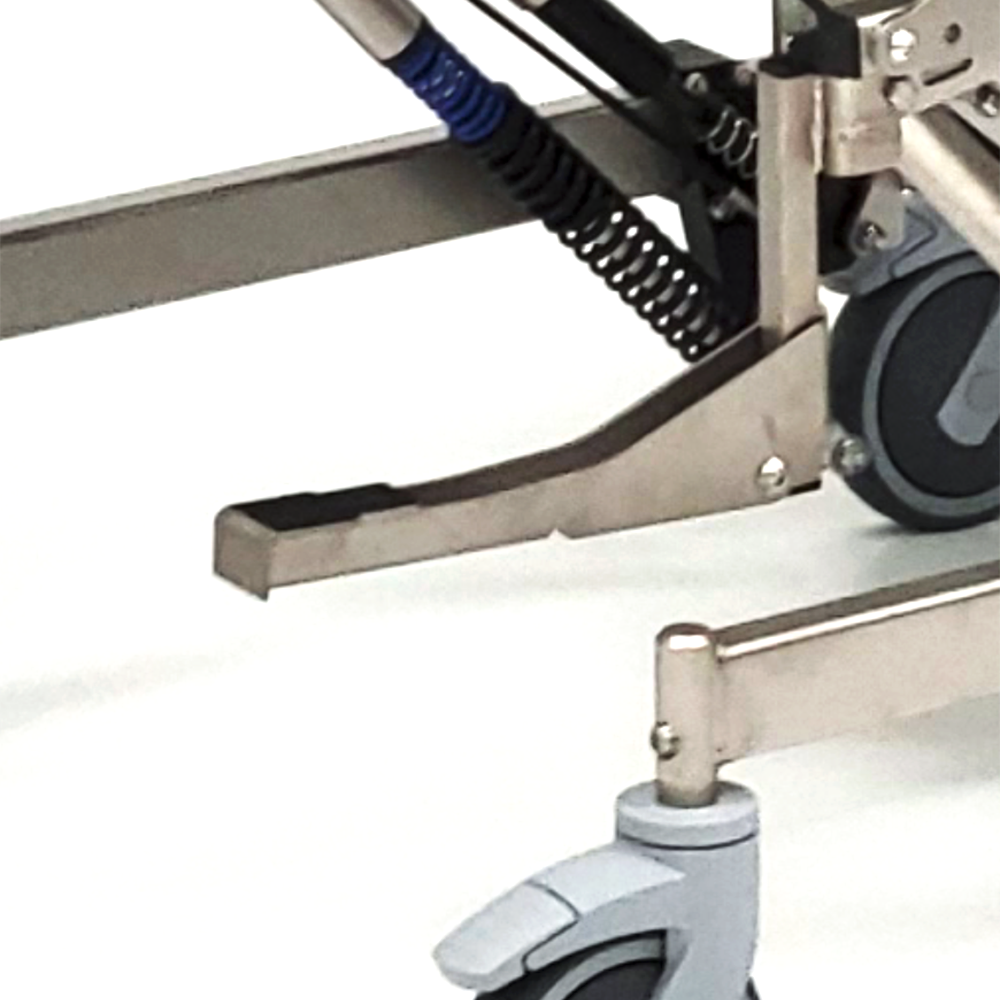

The Raz-AT600 is a heavy-duty mobile shower commode chair with a stainless steel frame and components. The specially engineered, Weight Assist Spring System (WASS) is available in two weight ranges. It is adjustable to accommodate the user’s weight and Center of Mass (CoM) for tilt operation with minimal effort by the attendant.
Features and Benefits
- Tilt function

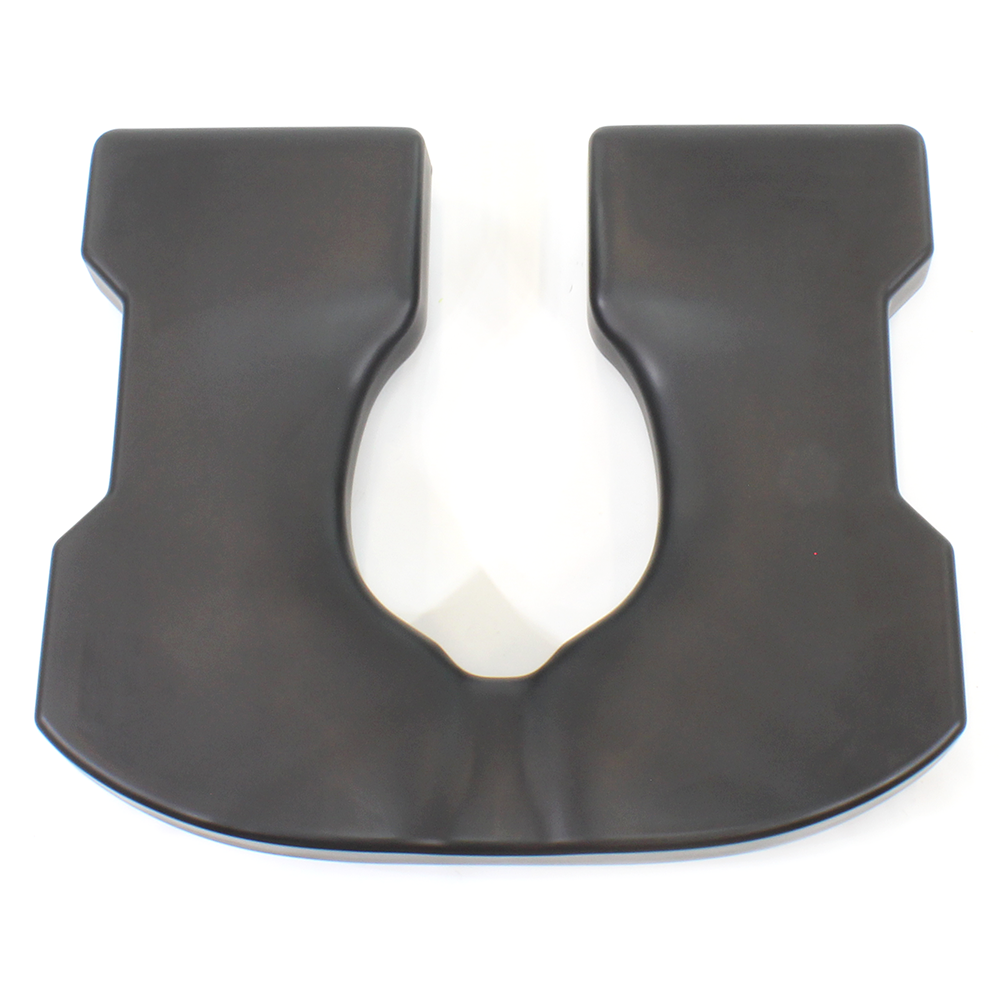

- Moulded seat
- Ischial pelvic alignment system

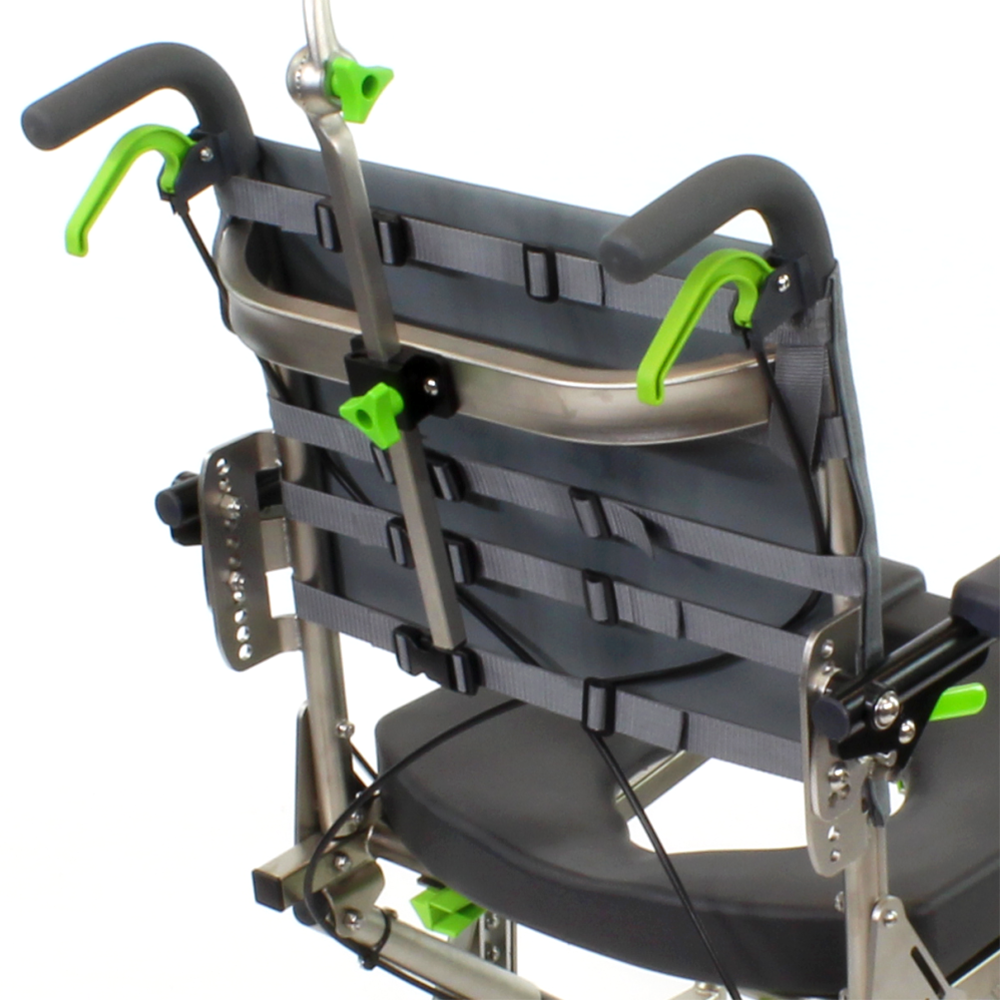

- Tension-adjustable back support upholstery

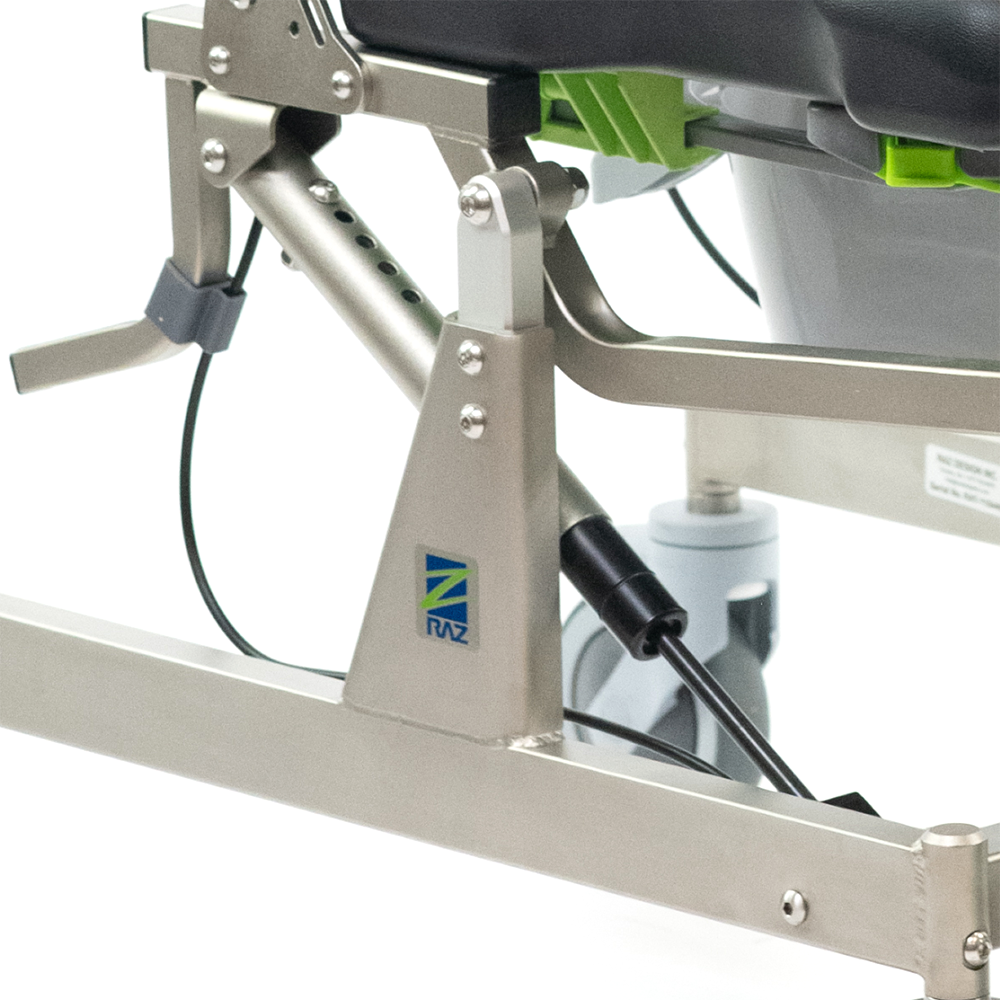

- Adjustable pivot posts
- Four 150mm lockable castors
- 25º tilt range
- Commode pan
Included in Package

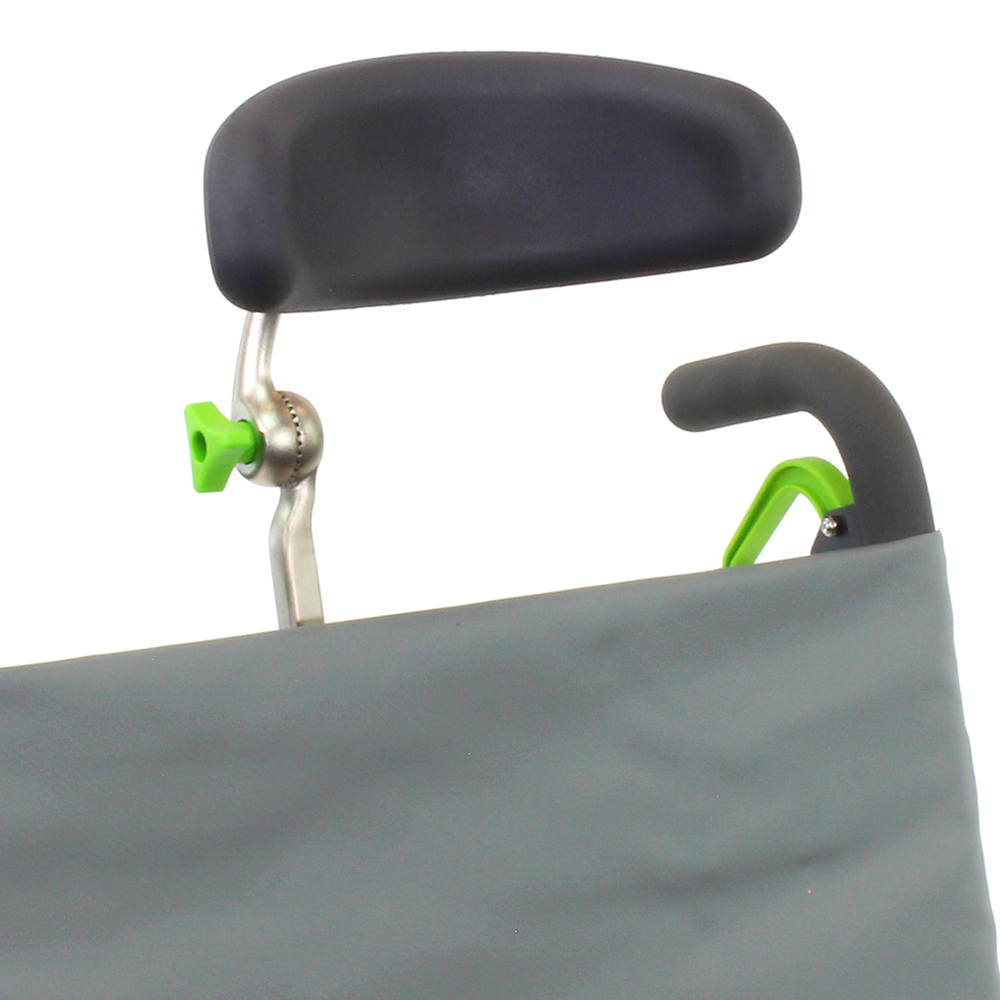

- Large head support
- Adjusta back
- Flip-up arm supports
- Lateral thoracic support
- Infection control pelvic belt
- Leg adductors
- BodyPoint Aeromesh snap-on calf strap
- Adjustable heel loops
- Front access Visco foam interface

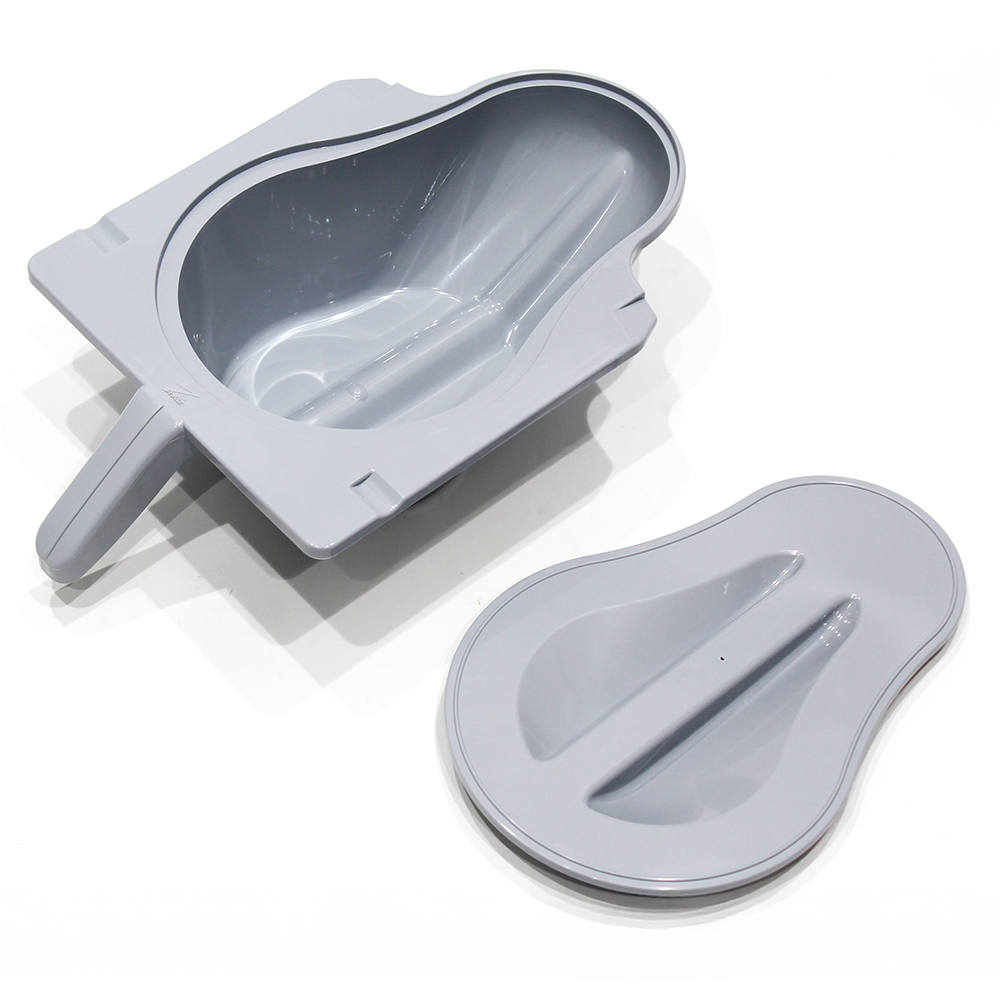

- Pan and lid
- Anti-tippers
Compliance
ARTG 169562
AS/NZS 3973:2009
Specifications
| Total Length with footrests | 960mm – 990mm |
| Total Width with standard arm pad | 670mm |
| Frame Width | seat and back frame | 560mm |
| Seat Width | front access Visco foam interface | 660mm | 760mm |
| Seat Depth | front of back post to front of seat | 460mm |
| Seat to Floor Height | 550mm and 580mm |
| Clearance Height Under Seat | 430mm – 485mm with pan brackets 475mm – 500mm without pan brackets |
| Armrest Height Above Seat | 240mm |
| Head Support | large | 304.8mm x 152.4mm |
| Frame and Hardware Material | Stainless Steel |
| Weight | 38kg |
| SWL | 275kg |
Resources
Product Range Brochure
User Manual
Description
Please complete a Referral Assessment Form and submit with your quote request. A product specialist will contact you.
The Raz-AT600 is a heavy-duty mobile shower commode chair with a stainless steel frame and components. The specially engineered, Weight Assist Spring System (WASS) is available in two weight ranges. It is adjustable to accommodate the user’s weight and Center of Mass (CoM) for tilt operation with minimal effort by the attendant.
Features and Benefits
- Tilt function
- Moulded seat
- Ischial pelvic alignment system
- Tension-adjustable back support upholstery
- Adjustable pivot posts
- Four 150mm lockable castors
- 25º tilt range
- Commode pan
Included in Package
- Large head support
- Adjusta back
- Flip-up arm supports
- Lateral thoracic support
- Infection control pelvic belt
- Leg adductors
- BodyPoint Aeromesh snap-on calf strap
- Adjustable heel loops
- Front access Visco foam interface
- Pan and lid
- Anti-tippers
Compliance
ARTG 169562
AS/NZS 3973:2009
Specifications
| Total Length with footrests | 960mm – 990mm |
| Total Width with standard arm pad | 670mm |
| Frame Width | seat and back frame | 560mm |
| Seat Width | front access Visco foam interface | 660mm | 760mm |
| Seat Depth | front of back post to front of seat | 460mm |
| Seat to Floor Height | 550mm and 580mm |
| Clearance Height Under Seat | 430mm – 485mm with pan brackets 475mm – 500mm without pan brackets |
| Armrest Height Above Seat | 240mm |
| Head Support | large | 304.8mm x 152.4mm |
| Frame and Hardware Material | Stainless Steel |
| Weight | 38kg |
| SWL | 275kg |
Resources
Product Range Brochure
User Manual
Additional information
| Weight | 100 kg |
|---|---|
| Dimensions | 50 × 50 × 80 cm |
| Purchase Type | Hire |
