RAZ-AT600 Bariatric Tilt Shower Chair
SKU: RAZ-AT600Please complete a Referral Assessment Form and submit with your quote request. You will be contacted by a product specialist.

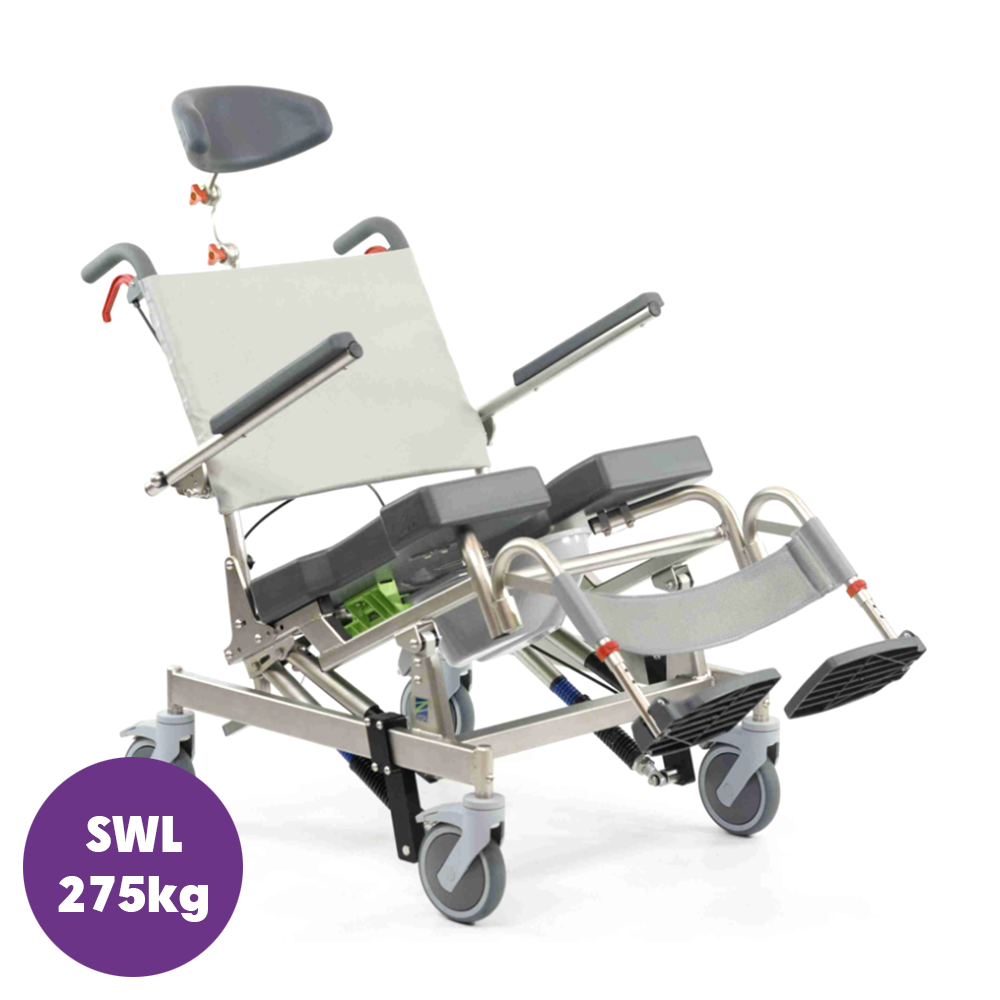

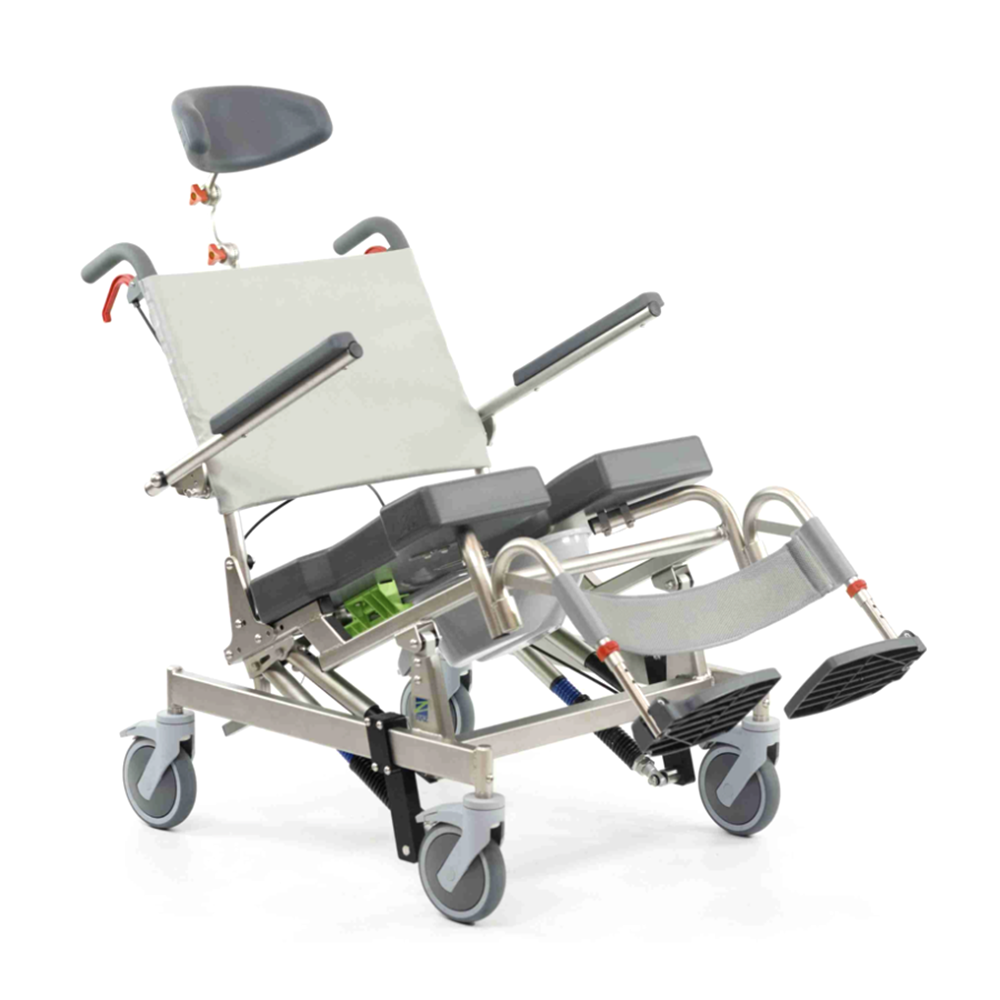

The Raz-AT600 is a heavy-duty mobile shower commode chair with a stainless steel frame and components. The specially engineered, Weight Assist Spring System (WASS) is available in two weight ranges. It is adjustable to accommodate the user’s weight and Center of Mass (CoM) for tilt operation with minimal effort by the attendant.
Features and Benefits
- Tilt function
- Molded seat
- Ischial pelvic alignment system
- Tension-adjustable back support fabric
- Adjustable pivot posts
- Four 150mm lockable castors
- 25º tilt range
- Commode pan
- Extensive range of options available
- Includes: headrest pad (25cm x 10cm) | stainless steel headrest fixture | tilt assist pedal | HD footrests (Z709N)
Compliance
ARTG 169562
AS/NZS 3973:2009
Warranty
Frame: 2 years limited | Components: 12 months limited
Specifications
Total Length (with footrests) | 960mm – 990mm |
Total Width (with standard arm pad) | 670mm |
Frame Width (seat and back frame) | 560mm |
Seat Width (commode seat) | 560 – 760mmmm |
Seat Depth (front of back post to front of seat) | 460mm |
Seat to Floor Height | 550mm and 580mm |
Clearance Height Under Seat
|
430mm – 485mm with pan brackets 475mm – 500mm without pan brackets |
Armrest Height Above Seat | 240mm |
Frame and Hardware Material | Stainless Steel |
Weight | 38kg |
SWL | 275kg |
Resources
Product Range Brochure
