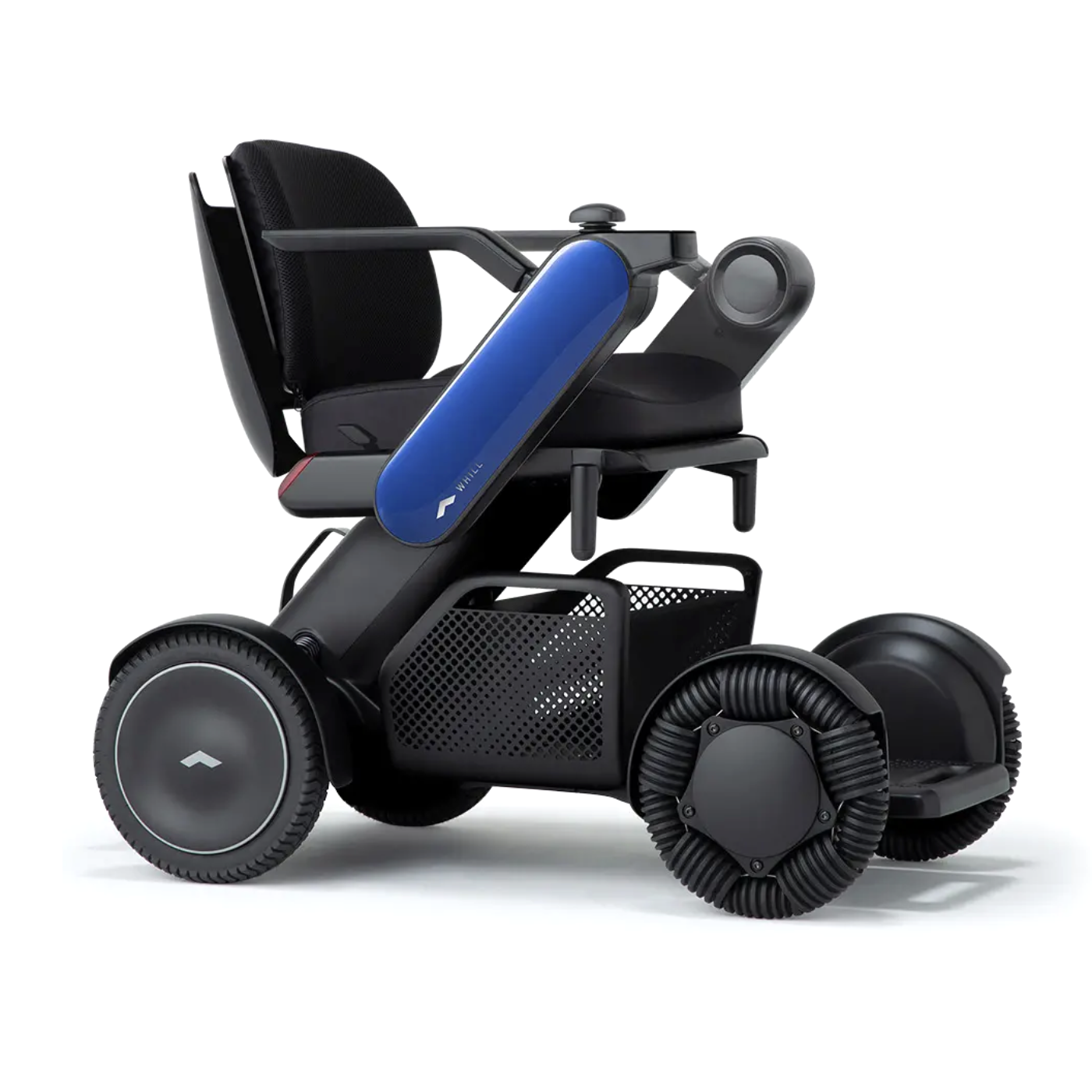

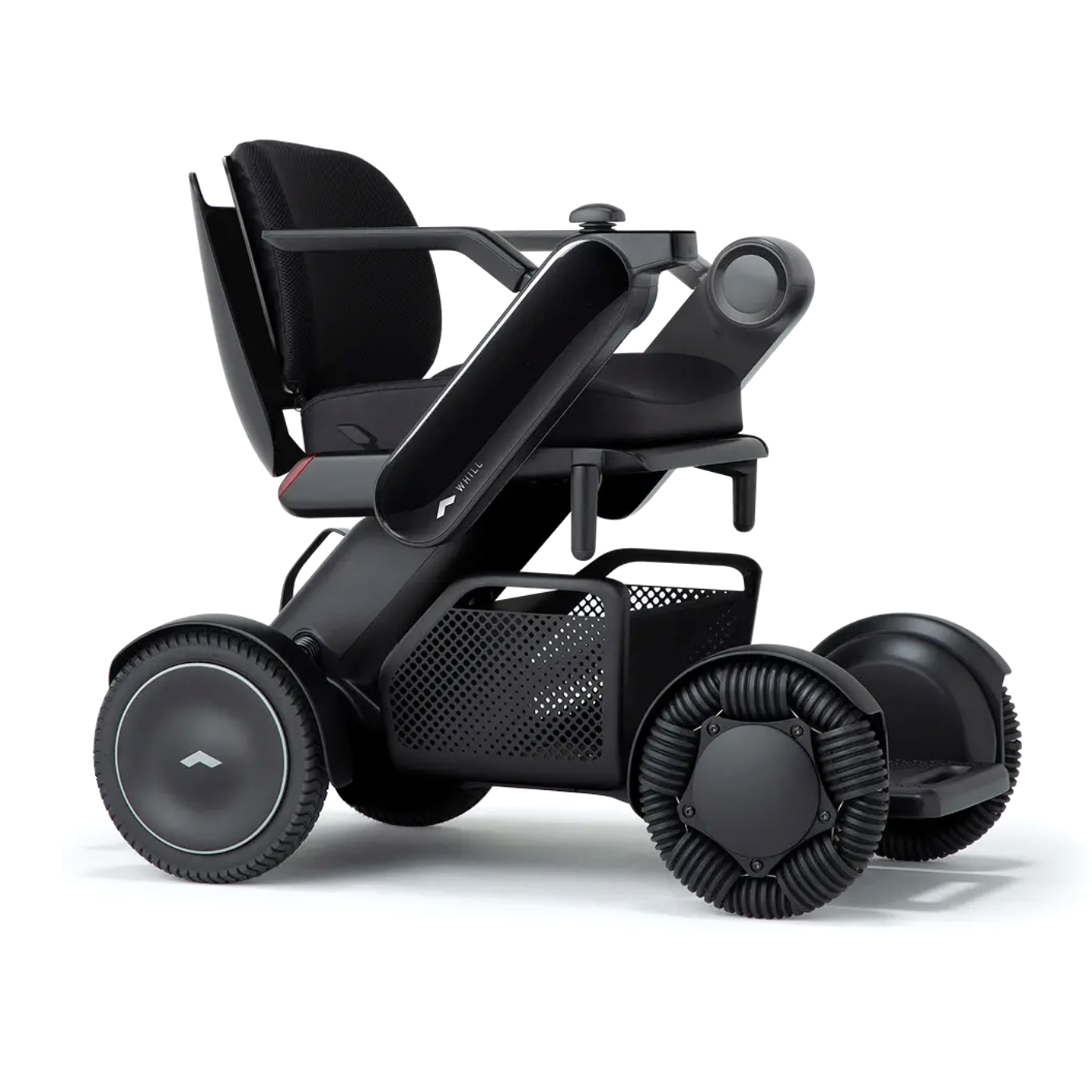

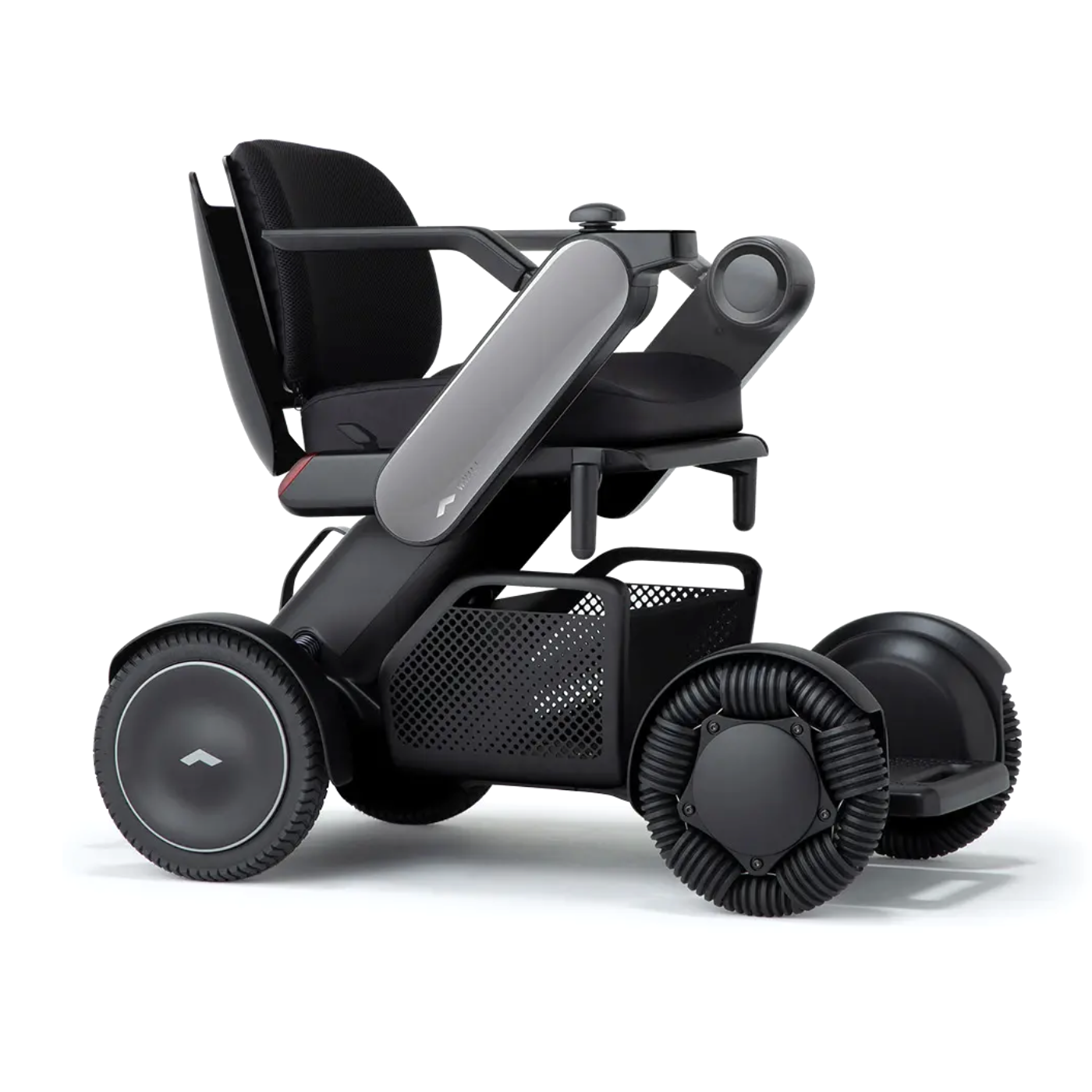

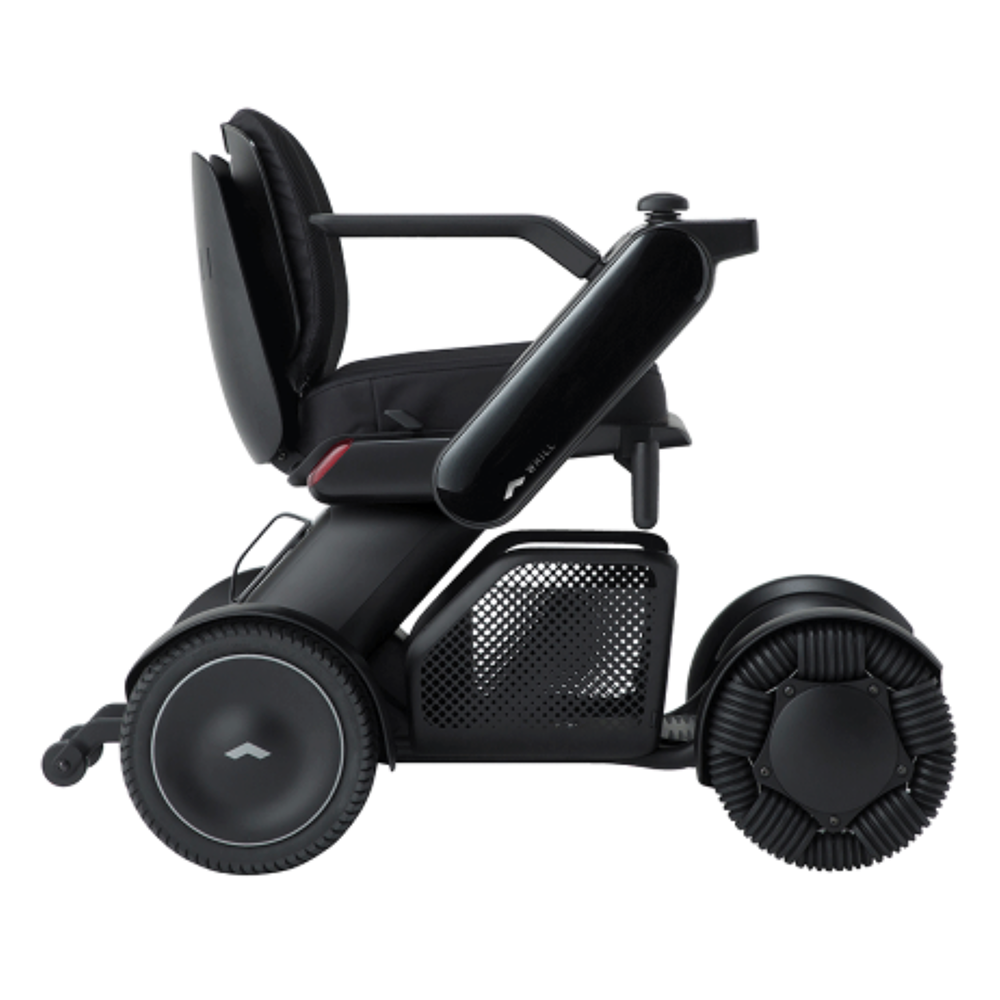

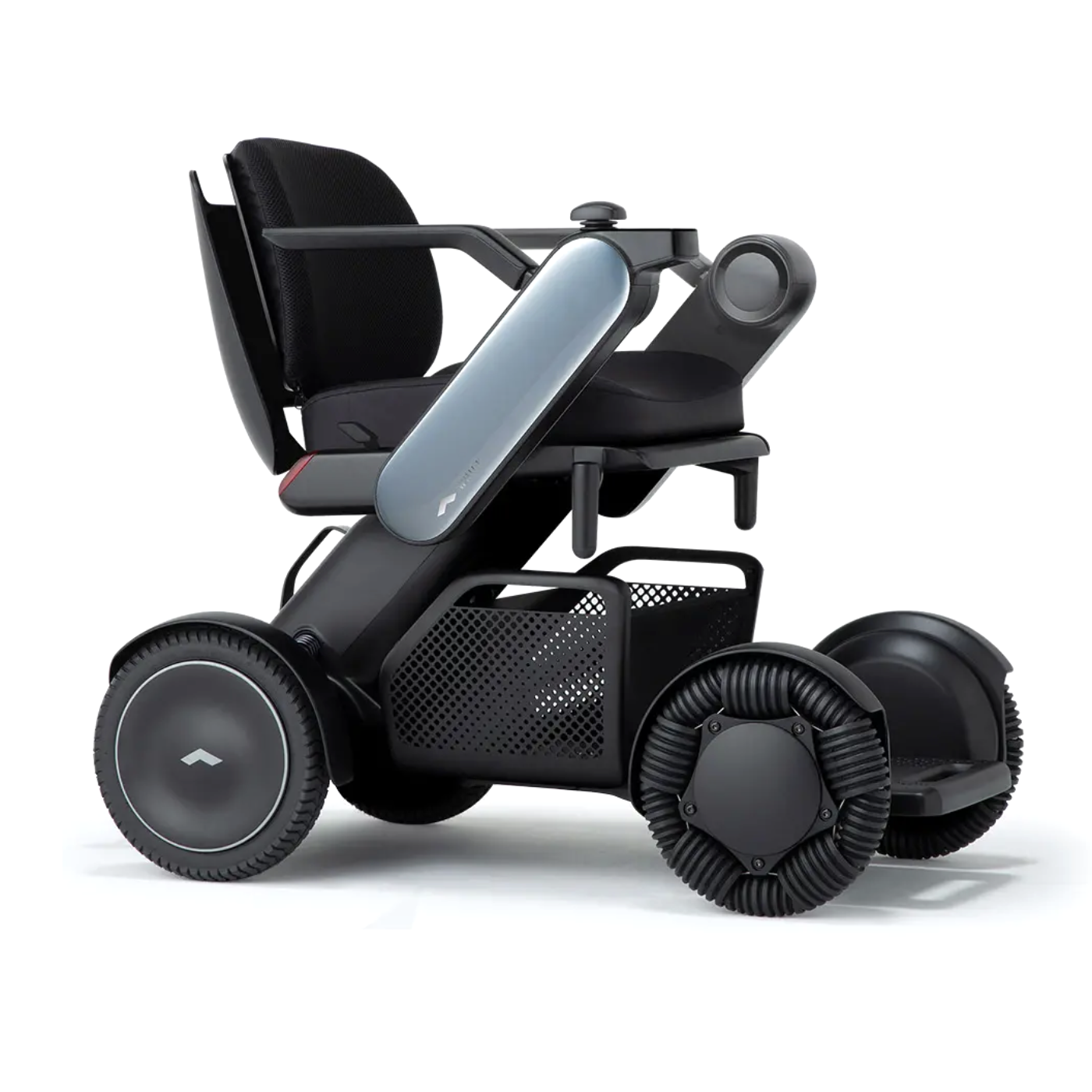

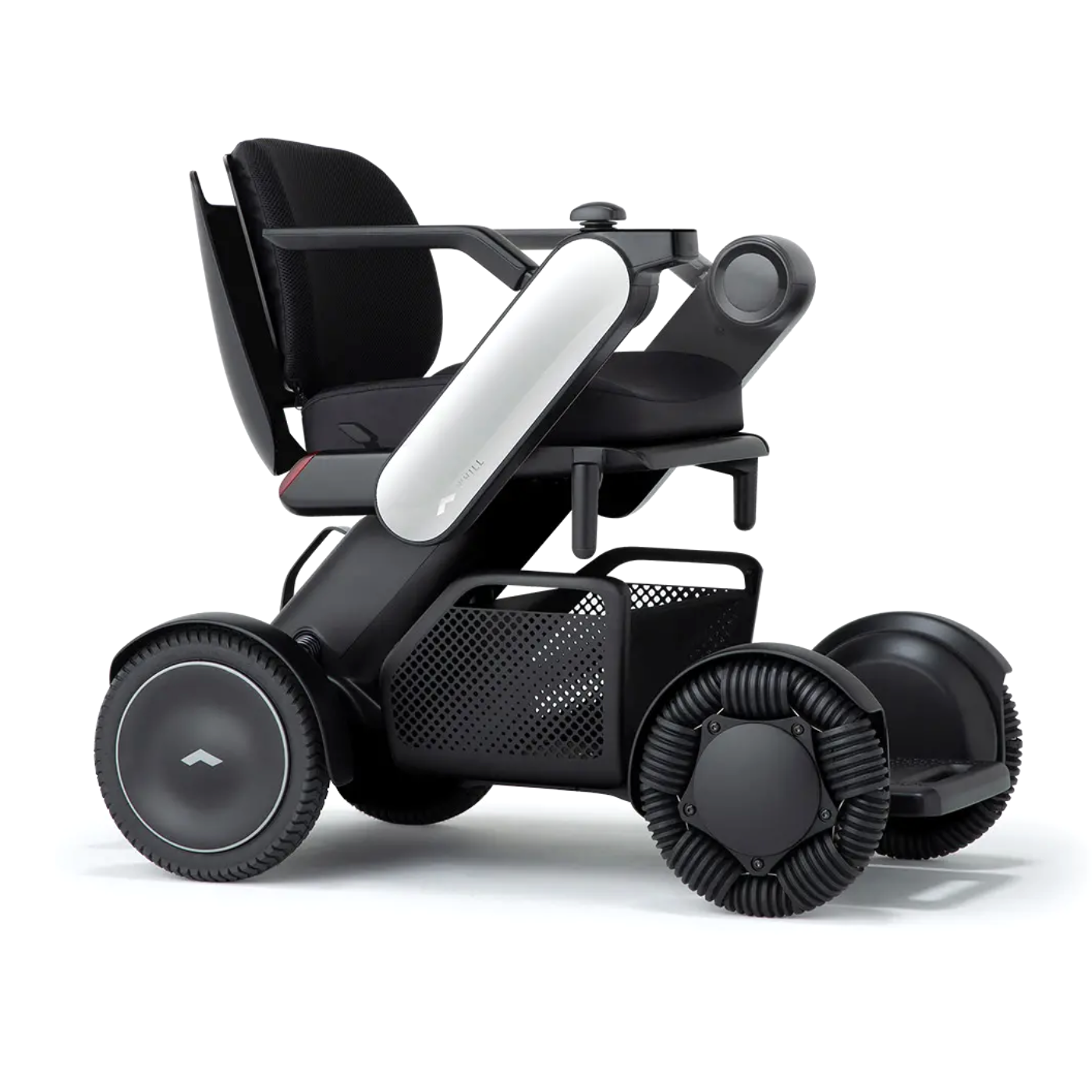

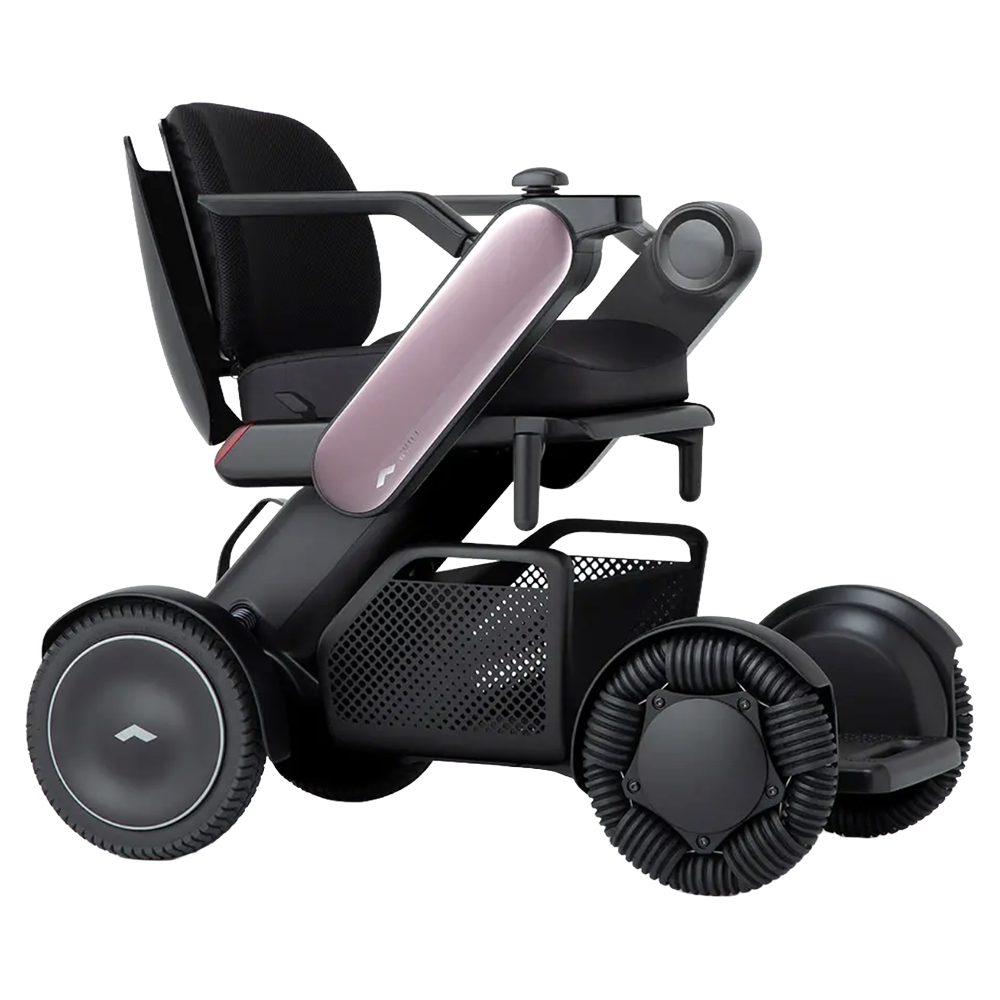

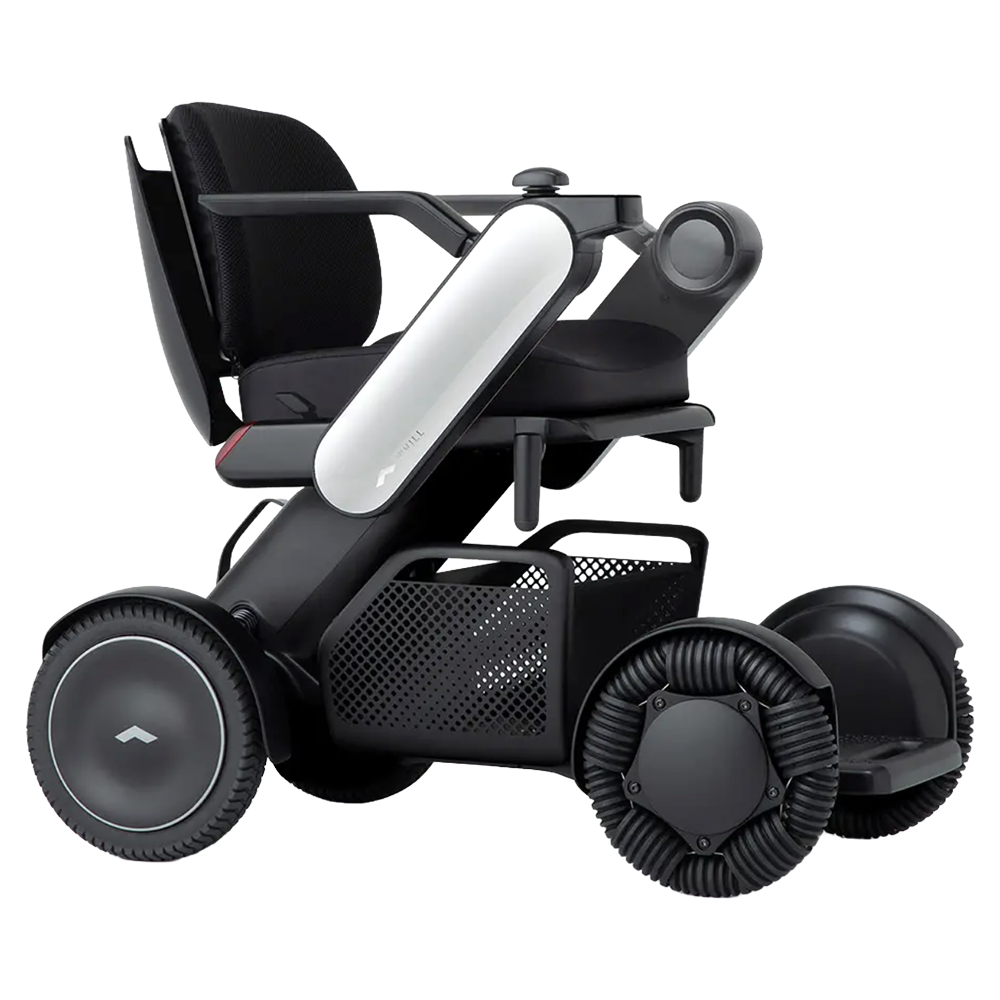

WHILL Model C2
SKU:Transportable power wheelchair.
Designed for the world you live in, the WHILL Model C2 brings you there with the confidence you deserve.

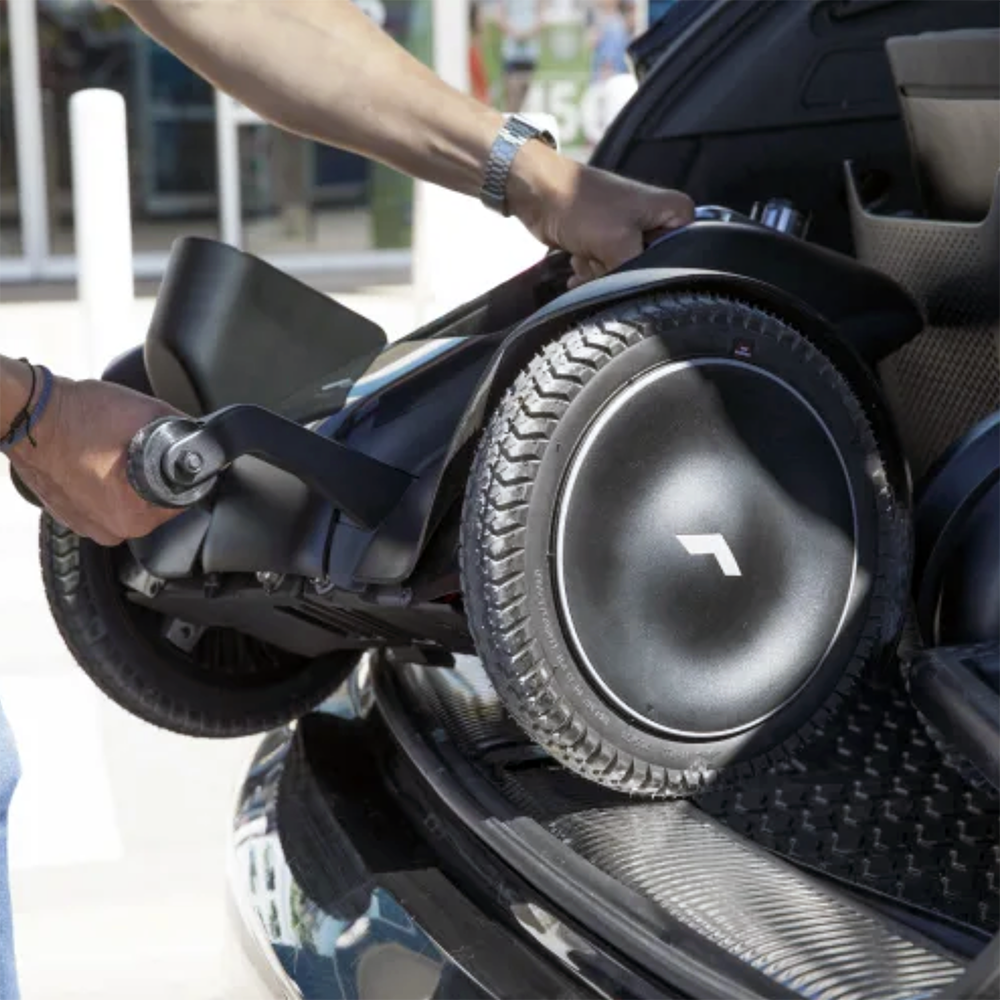

Effortlessly climb over obstacles up to 2 inches height with two powerful motors and large front omni-wheels. Rear wheel suspension absorbs the impact when driving over bumpy roads or obstacles. The Model C2 can be disassembled for easy transportation in the trunk of any car. The small turning radius allows you to make tight turns in narrow shops and elevators. The Model C2 easily manoeuvres to get you wherever you need to go. Whether you’re shopping on the weekend or traveling with your family, the Model C2 allows you to live life to the fullest.
It’s time to challenge the perception of what a mobility device can be.
Features and Benefits

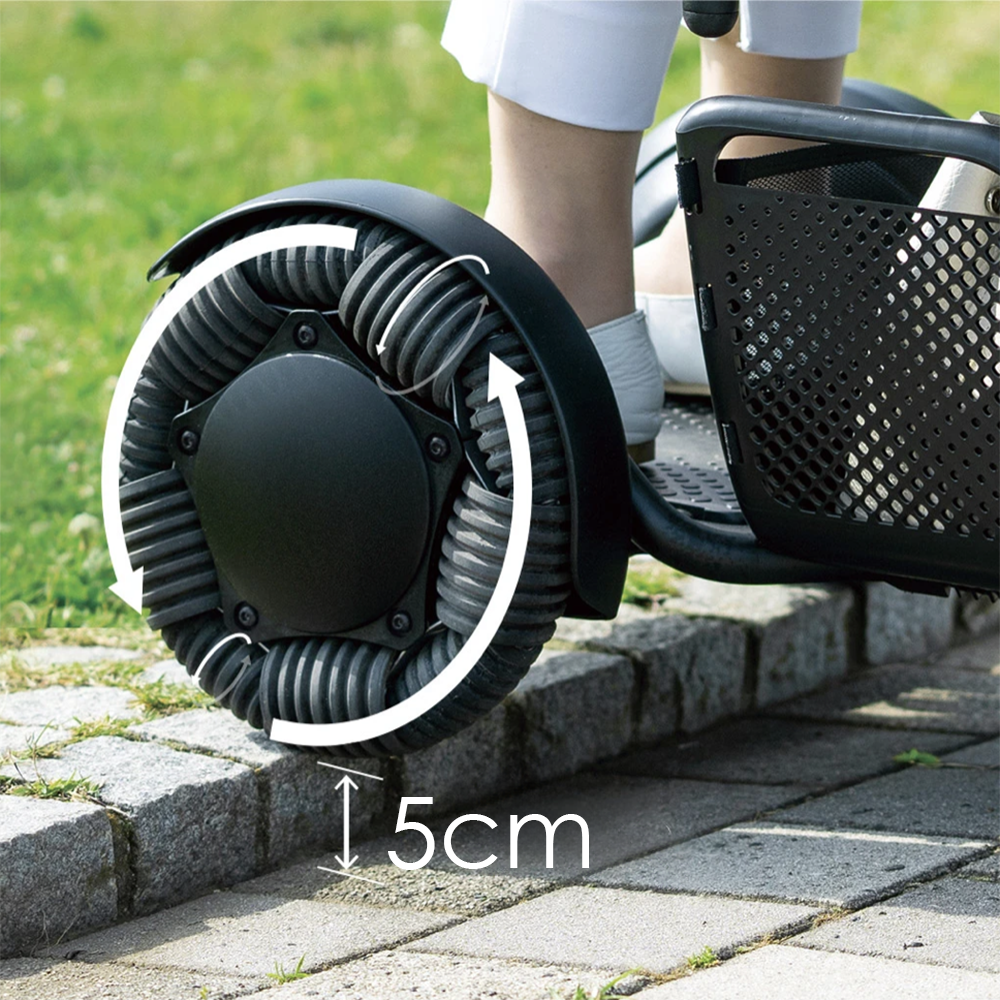

- Effortlessly climb over obstacles up to 50mm high with two powerful motors and the patented front omni-wheels
- Rear wheel suspension absorbs impact when driving over bumpy roads or obstacles
- Anti-sway system keeps you driving straight on side slopes
- Electromagnetic brakes provide safe stopping, even on inclines
- Tail lights are clearly visible even when carrying a bag on the back ensure visibility
- Drive remotely, lock/unlock, and manage speed settings via the WHILL smartphone app

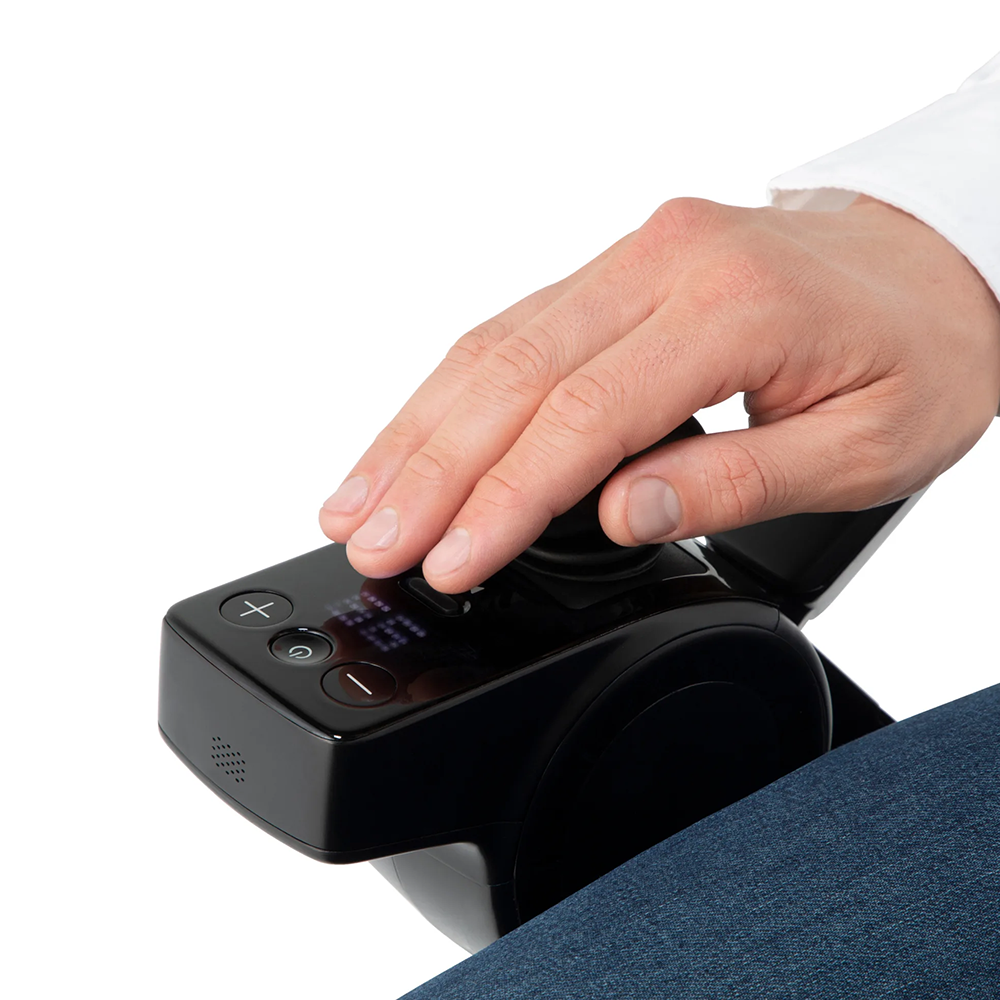

- Controller can be positioned on the left or right side

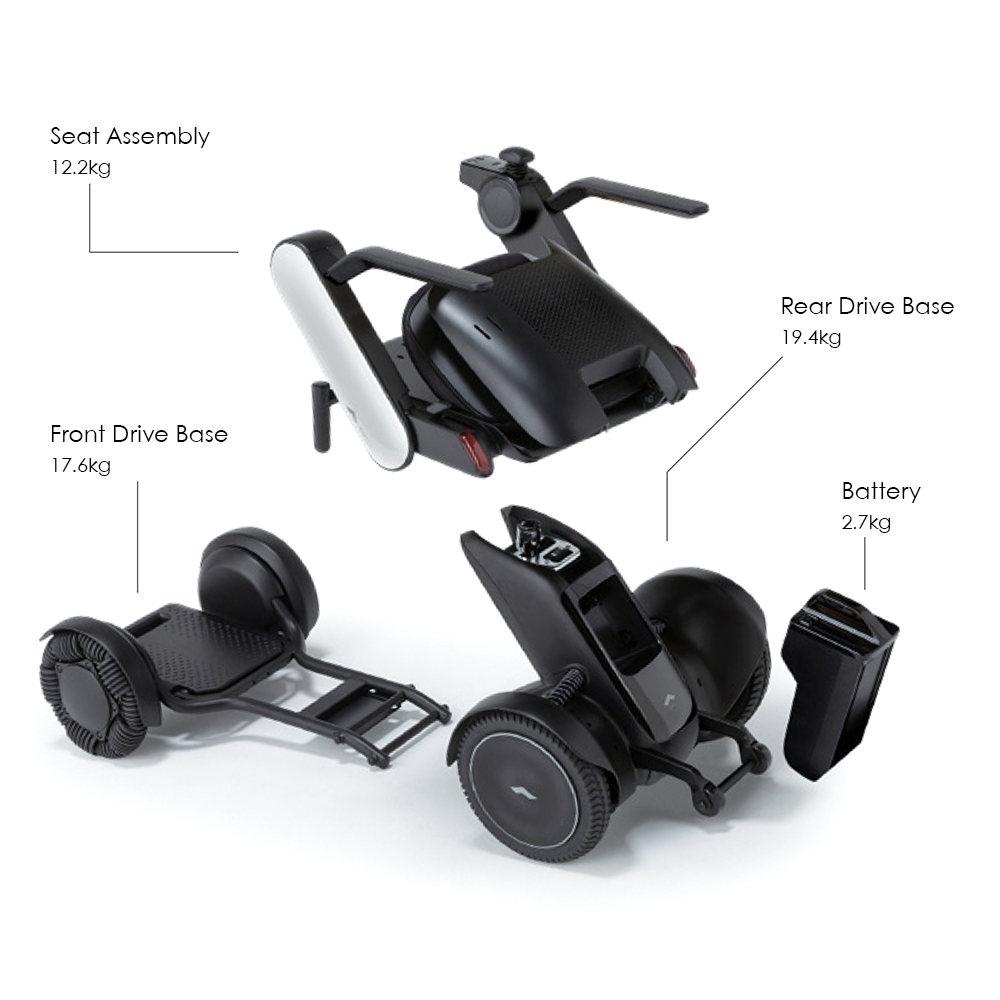

- Disassembles in four easy steps

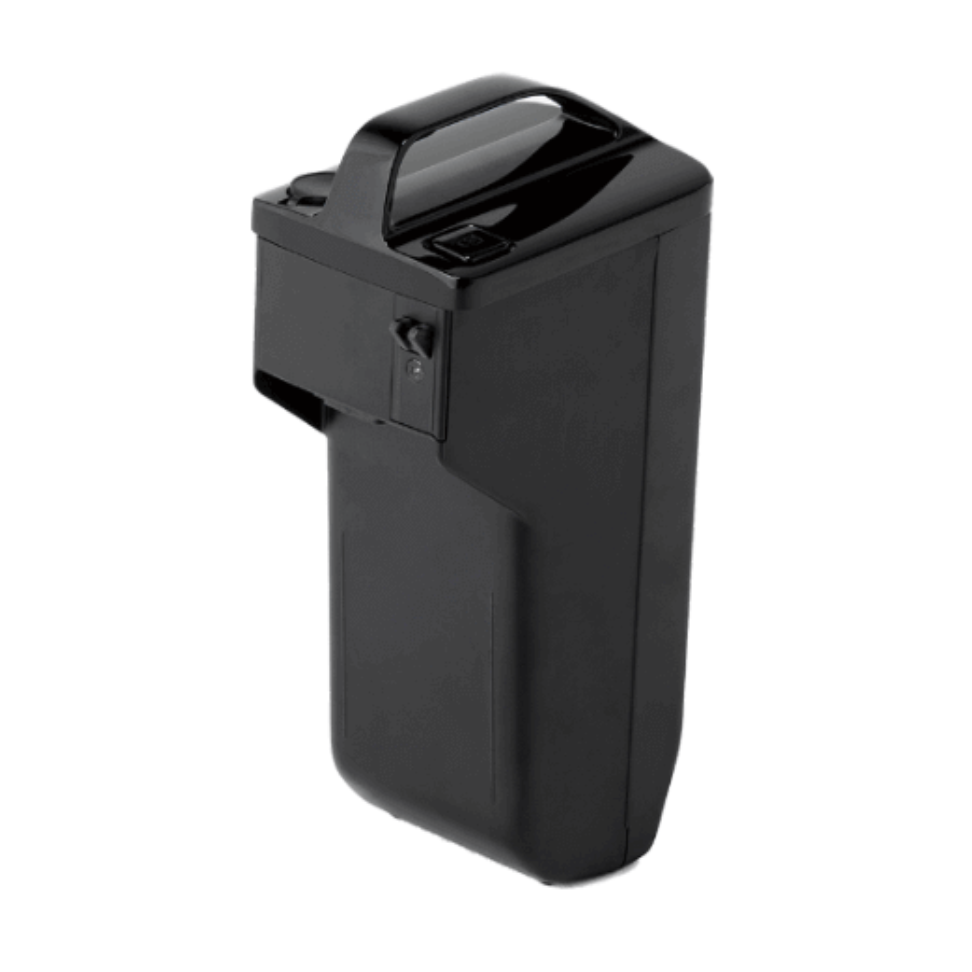

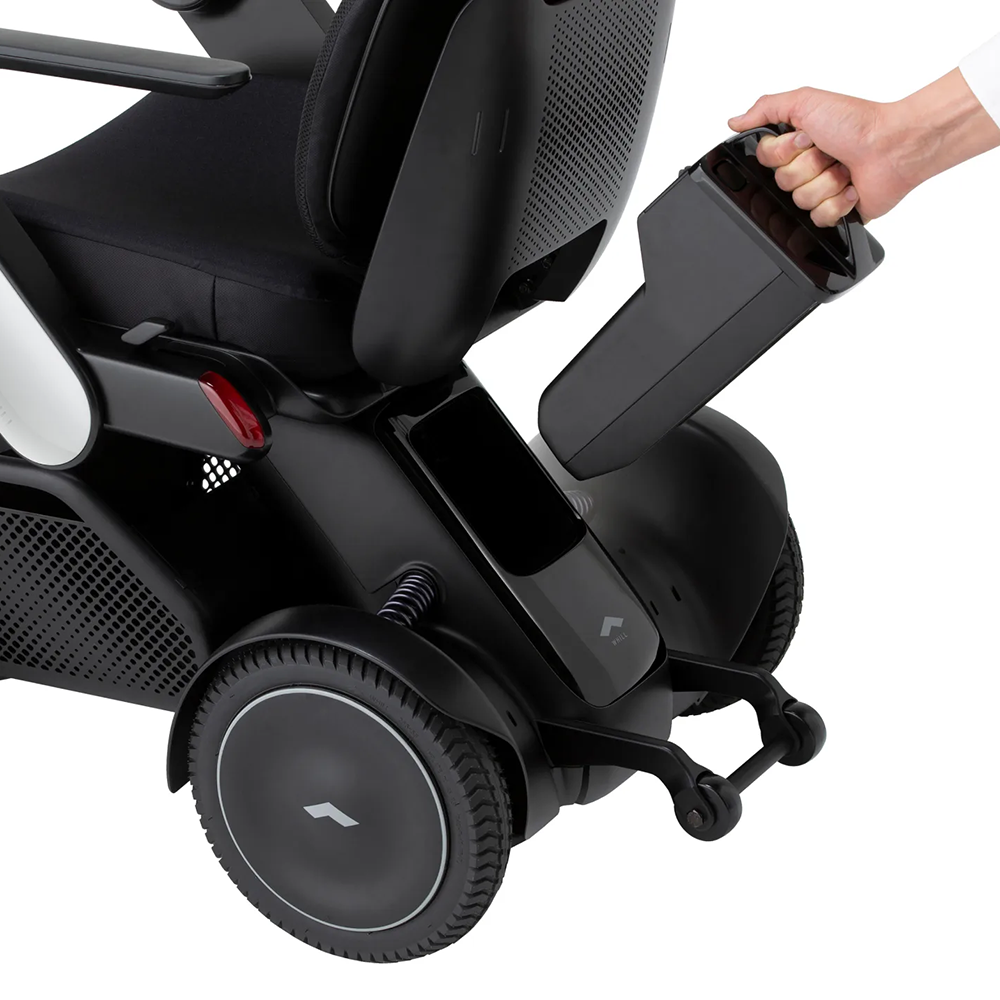

- Battery can be removed and charged in a regular household outlet

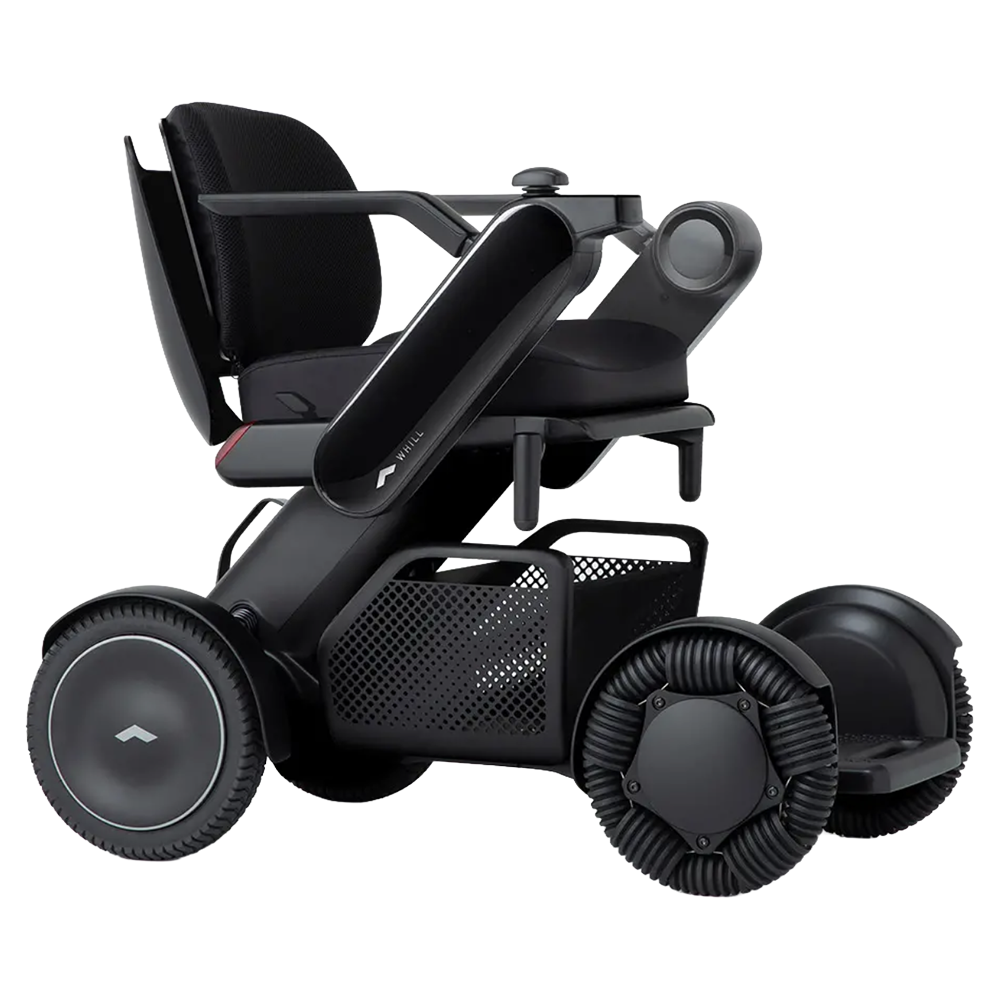

- Colour: black

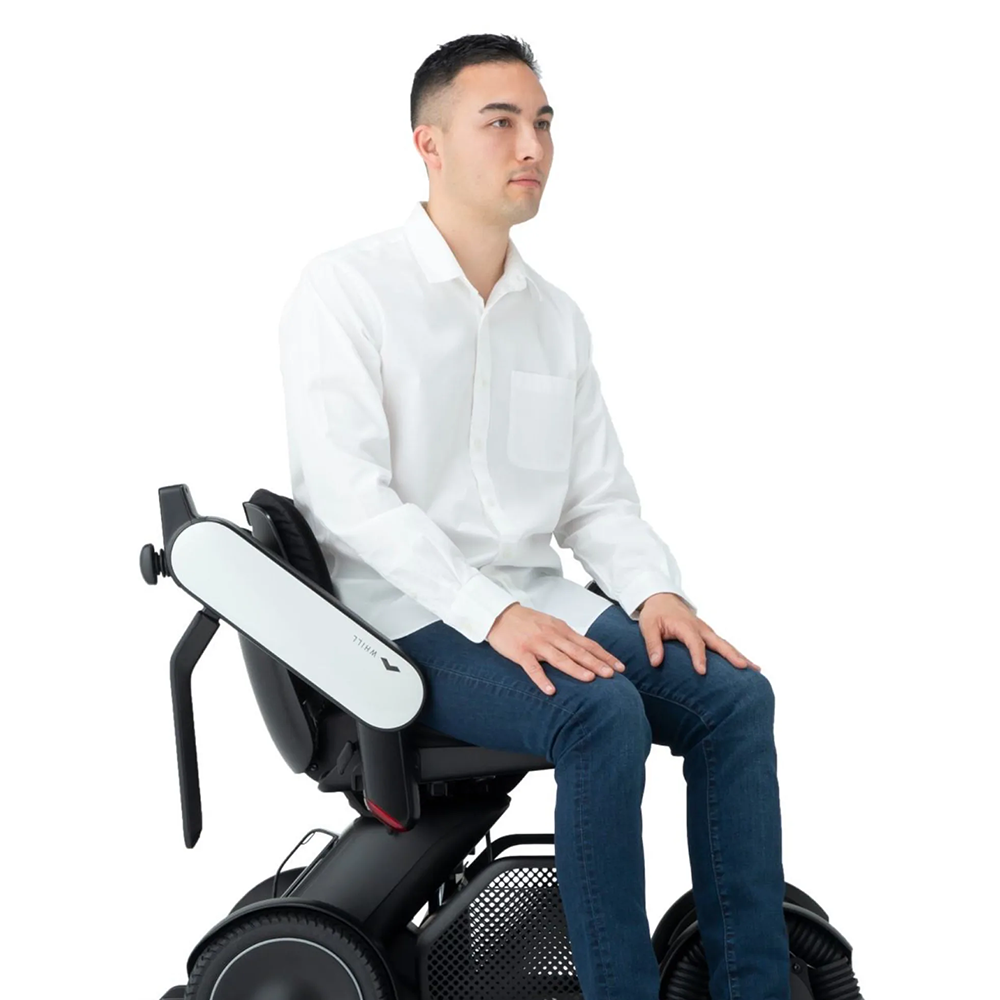

- Standard arm colour: black
- Includes: lap belt | smart key | battery | battery charger
Compliance
AS 3695.2:2019
Warranty
Base and frame: 5 years | Electronics and Components: 2 years | Batteries and wheels: 6 months

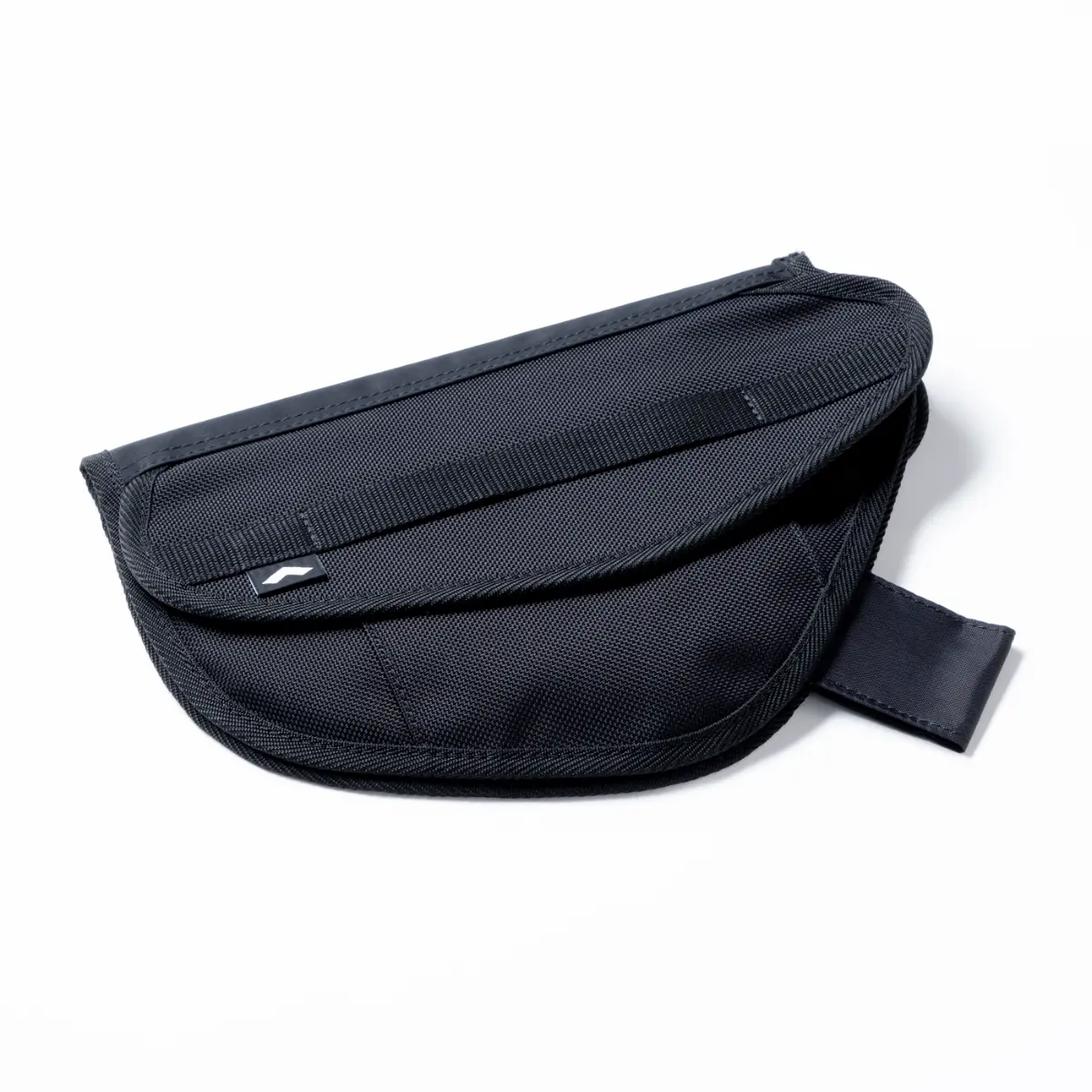

A range of accessories is available for purchase. Please see below.
Specifications
| Total Length | 985mm | 985mm |
| Total Width | 604mm | 654mm |
| Total Height | 745mm – 945mm | 745mm – 945mm |
| Seat Width | 450mm | 500mm |
| Seat Depth | 400mm | 400mm |
| Seat Height | 405mm – 485mm | 405mm – 485mm |
| Seat Angle | 5º | 5º |
| Controller Height | 670mm – 730mm | 670mm – 730mm |
| Back Support Height | 340mm – 460mm | 340mm – 460mm |
| Back Support Angle | 90º – 100º | 90º – 100º |
| Foot Support Height | 127mm | 127mm |
| Foot Support Angle | 2º | 2º |
| Seat Assembly: L | W | H | 570mm | 600mm | 480mm | 570mm | 650mm | 480mm |
| Rear Drive Base: L | W | H | 590mm | 554mm | 300mm | 590mm | 554mm | 300mm |
| Front Drive Base: L | W | H | 720mm | 554mm | 270mm | 720mm | 554mm | 270mm |
| Range | 18km | 18km |
| Maximum Speed | 8km/h | 8km/h |
| Maximum Incline | 10º | 10º |
| Turning Radius | 760mm | 760mm |
| Obstacle Clearance | 50mm | 50mm |
| Ground Clearance | 0º – 30º | 0º – 30º |
| Lower Leg Length | 340mm – 550mm | 340mm – 550mm |
| Seat Assembly Weight | 12.2kg | 12.2kg |
| Rear Drive Base Weight | 19.4kg | 19.4kg |
| Front Drive Base Weight | 17.6kg | 17.6kg |
| Battery Weight | 2.7kg | 2.7kg |
| SWL | 136kg | 125kg |
