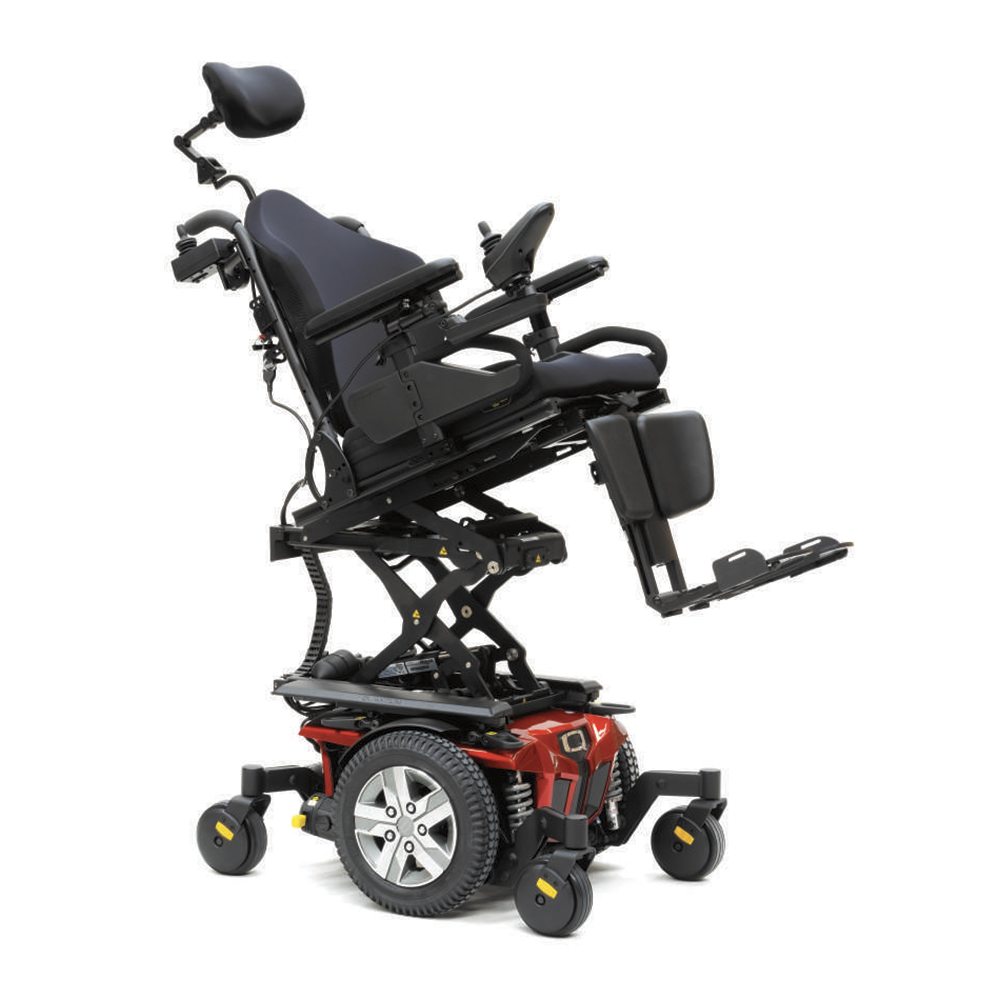

Pride® Mobility Jazzy® 623 2.0

SKU: Jazzy-623-2

Mid wheel drive power wheelchair.

    Request a Quote

    Request product information or a quote by filling out the form below and we will get back to you as soon as possible.

    Please upload your completed Rehab Referral Assessment Form (if applicable) and/or completed NDIS Service Agreement Form (if applicable) by clicking a button below (one file per button).

    Please complete a Referral Assessment Form and submit with your quote request and you will be contacted by a product specialist.

    With features including powerful motors that achieve speeds up to 10km/h and improved responsiveness, the Jazzy® 623 2.0 is engineered to meet the performance needs of the most active user.  The Jazzy® 623 2.0 comes standard with TRU-Balance 3 50º tilt and optional 254mm of lift elevation, while a VR2 controller offers two seating functions, as standard, and delivers smooth, nimble manoeuvrability matched with exceptional outdoor performance.

    Features and Benefits
    • Standard 4-pole motor
    • Mid Wheel 6® Drive Design allows six wheels on the ground for maximum stability
    • Low impact OMNI-Castors on front and rear prevent wheel hang ups
    • ATX Suspension for enhanced performance over more varied terrain
    • Compatible with TRU-Balance® 3 HD Power Positioning Systems
    Compliance

    AS|NZS 3695.2:2013

    Warranty

    Frame: Lifetime limited | Components: 24 months | Motor|gearbox assembly and power seat actuator: 18 months | Accessories: 12 months limited | Bearings and bushes: 6 months limited | Batteries: 12 months

    Specifications
    Total Length 902mm without front riggings
    Base Width 622mm
    Seat Width
    Synergy®|TRU-Balance® 3 Static Seat: 300mm – 560mm
    TRU-Balance® 3 Power Tilt: 305mm – 560mm
    Seat Depth
    Synergy®|TRU-Balance® 3 Static Seat: 300mm – 560mm
    TRU-Balance® 3 Power Tilt: 305mm – 560mm
    Seat to Floor Height Synergy®|TRU-Balance® 3 Static Seat: 420mm – 470mm
    TRU-Balance® 3 Power Tilt: 440mm – 495mm
    TRU-Balance® 3 Lift & Tilt: 440mm – 495mm
    Drive Wheels Standard: 356mm solid
    Optional: 356mm pneumatic
    Castors Front: 152.4mm solid
    Rear: 152mm solid
    Manual Recline Yes
    Ground Clearance 69mm (battery tray)
    Turning Radius 521mm
    Speeds <9.6km/h
    Battery Charger 8A Off-board
    Battery Size NF-22 | 55AH (2)
    Battery Weight 17.24kg each
    Base Weight 63kg
    Standard Colours Blue | Red
    SWL 136kg
    Resources
    Product Brochure
    SKU: Jazzy-623-2 Categories: ,
    Description
    Please complete a Referral Assessment Form and submit with your quote request and you will be contacted by a product specialist.

    With features including powerful motors that achieve speeds up to 10km/h and improved responsiveness, the Jazzy® 623 2.0 is engineered to meet the performance needs of the most active user.  The Jazzy® 623 2.0 comes standard with TRU-Balance 3 50º tilt and optional 254mm of lift elevation, while a VR2 controller offers two seating functions, as standard, and delivers smooth, nimble manoeuvrability matched with exceptional outdoor performance.

    Features and Benefits
    • Standard 4-pole motor
    • Mid Wheel 6® Drive Design allows six wheels on the ground for maximum stability
    • Low impact OMNI-Castors on front and rear prevent wheel hang ups
    • ATX Suspension for enhanced performance over more varied terrain
    • Compatible with TRU-Balance® 3 HD Power Positioning Systems
    Compliance

    AS|NZS 3695.2:2013

    Warranty

    Frame: Lifetime limited | Components: 24 months | Motor|gearbox assembly and power seat actuator: 18 months | Accessories: 12 months limited | Bearings and bushes: 6 months limited | Batteries: 12 months

    Specifications
    Total Length 902mm without front riggings
    Base Width 622mm
    Seat Width
    Synergy®|TRU-Balance® 3 Static Seat: 300mm – 560mm
    TRU-Balance® 3 Power Tilt: 305mm – 560mm
    Seat Depth
    Synergy®|TRU-Balance® 3 Static Seat: 300mm – 560mm
    TRU-Balance® 3 Power Tilt: 305mm – 560mm
    Seat to Floor Height Synergy®|TRU-Balance® 3 Static Seat: 420mm – 470mm
    TRU-Balance® 3 Power Tilt: 440mm – 495mm
    TRU-Balance® 3 Lift & Tilt: 440mm – 495mm
    Drive Wheels Standard: 356mm solid
    Optional: 356mm pneumatic
    Castors Front: 152.4mm solid
    Rear: 152mm solid
    Manual Recline Yes
    Ground Clearance 69mm (battery tray)
    Turning Radius 521mm
    Speeds <9.6km/h
    Battery Charger 8A Off-board
    Battery Size NF-22 | 55AH (2)
    Battery Weight 17.24kg each
    Base Weight 63kg
    Standard Colours Blue | Red
    SWL 136kg
    Resources
    Product Brochure
    Additional information
    Weight 100 kg
    Dimensions 50 × 50 × 80 cm
    Purchase Type

    Buy
