Quantum® Q6 Edge® 2.0
SKU: Q6EDGE-2.0Mid wheel drive power wheelchair.
Please complete a Referral Assessment Form and submit it with your quote request. You will be contacted by a product specialist.
With features like standard 9.6km/h motors, advanced responsiveness, and optional iLevel® power adjustable seat height, the Q6 Edge® 2.0 Power Chair is engineered to meet the performance needs of the most active user. The Q6 Edge® 2.0 Power Wheelchair accepts a complete range of seating and electronics and is iLevel ready.
Features and Benefits
- 9.6km/h high-speed motors standard
- Responsive handling
- Precise control
- Advanced performance
- Bold aesthetics
- Expandable electronics

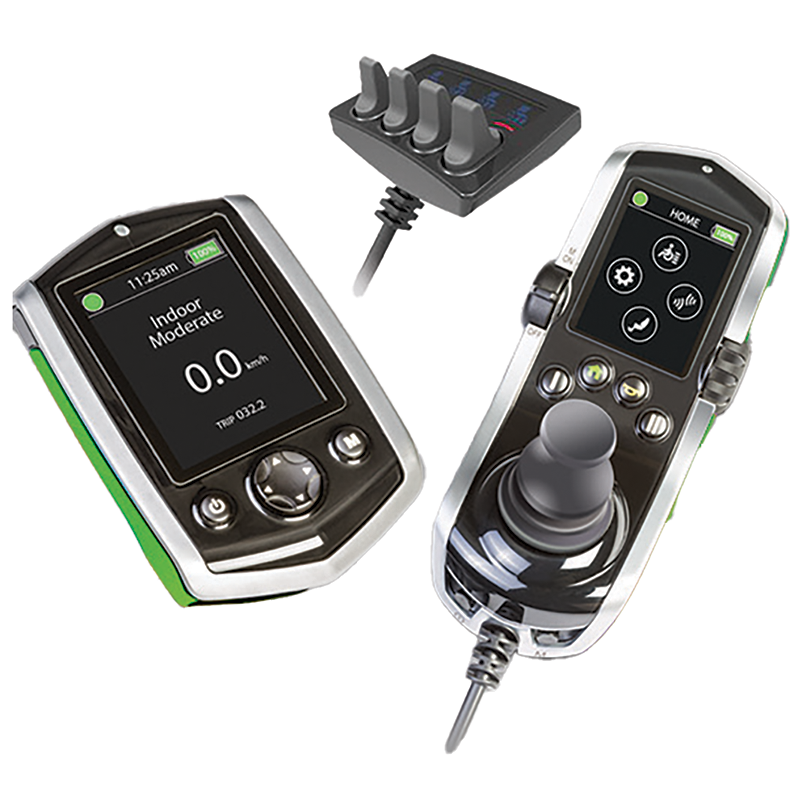

- Q-Logic 3 controller
- Optional iLevel’s patented Extra Stability Technology® enhances safety while performing transfers, reach, and numerous other activities of daily living
- Optional iLevel® enables up to 305mm of seat elevation while at walking speed (up to 5.6km/h)
- iLevel is retrofittable on the Q6 Edge® 2.0
- Available with Accu-Trac Advanced Tracking Technology
- Optional LED fender lights (standard with iLevel)
- Available with WC19 crash-test approved occupied transit kit option on tilt & recline and iLevel
Benefits of iLevel on the Edge 2.0
iLevel improves daily functionality and quality of life by allowing operation of the power chair with the seat fully elevated while at walking speed (at 5.6kph). iLevel’s patented Extra Stability Technology® enhances safety for transfers, reach, and numerous other activities of daily living.
Compliance
ARTG 109840
AS|NZS 3695.2:2019
Warranty
See Warranty Information below for full details.
Specifications
| Total Length (without front rigging) | 818.64mm | 152.4mm castors 1028.19mm | 200mm castors |
| Base Width | 622mm |
| Seat Width | Synergy®/TRU-Balance® 3 Static Seat: 300mm – 560mm TRU-Balance® 3 Power Tilt: 305mm – 560mm TRU-Balance® 3 Tilt & iLevel®: 305mm – 560mm |
| Seat Depth | Synergy®/TRU-Balance® 3 Static Seat: 300mm – 560mm TRU-Balance® 3 Power Tilt: 305mm – 560mm TRU-Balance® 3 Tilt & iLevel®: 305mm – 560mm |
| Seat to Floor Height | Synergy®/TRU-Balance® 3 Static Seat: 420mm – 470mm TRU-Balance® 3 Power Tilt: 440mm – 495mm TRU-Balance® 3 Tilt & iLevel®: 440mm – 495mm |
| Drive Wheels | Standard: 355.6mm solid Optional: 355.6mm pneumatic |
| Castors | Front: 152.4mm solid Rear: 152.4mm solid 200mm available |
| Manual Recline | Yes |
| Ground Clearance | 69mm |
| Turning Radius | 521mm with 152.4mm castors |
| Speeds | <9.6km/h | 5.6km/h with iLevel activated |
| Available Electronics | 120A Q-Logic 3 |
| Motor Packages | 2-Pole Mid-Wheel 6® |
| Battery Charger | 8A Off-board |
| Battery Size | NF-22, 55Ah |
| Battery Weight | 17.24kg each |
| Base Weight | 63kg with 152.4mm castors |
| SWL | 136kg |
Resources
Product Brochure
User Manual
Warranty Information
Description
Please complete a Referral Assessment Form and submit it with your quote request. You will be contacted by a product specialist.
With features like standard 9.6km/h motors, advanced responsiveness, and optional iLevel® power adjustable seat height, the Q6 Edge® 2.0 Power Chair is engineered to meet the performance needs of the most active user. The Q6 Edge® 2.0 Power Wheelchair accepts a complete range of seating and electronics and is iLevel ready.
Features and Benefits
- 9.6km/h high-speed motors standard
- Responsive handling
- Precise control
- Advanced performance
- Bold aesthetics
- Expandable electronics
- Q-Logic 3 controller
- Optional iLevel’s patented Extra Stability Technology® enhances safety while performing transfers, reach, and numerous other activities of daily living
- Optional iLevel® enables up to 305mm of seat elevation while at walking speed (up to 5.6km/h)
- iLevel is retrofittable on the Q6 Edge® 2.0
- Available with Accu-Trac Advanced Tracking Technology
- Optional LED fender lights (standard with iLevel)
- Available with WC19 crash-test approved occupied transit kit option on tilt & recline and iLevel
Benefits of iLevel on the Edge 2.0
iLevel improves daily functionality and quality of life by allowing operation of the power chair with the seat fully elevated while at walking speed (at 5.6kph). iLevel’s patented Extra Stability Technology® enhances safety for transfers, reach, and numerous other activities of daily living.
Compliance
ARTG 109840
AS|NZS 3695.2:2019
Warranty
See Warranty Information below for full details.
Specifications
| Total Length (without front rigging) | 818.64mm | 152.4mm castors 1028.19mm | 200mm castors |
| Base Width | 622mm |
| Seat Width | Synergy®/TRU-Balance® 3 Static Seat: 300mm – 560mm TRU-Balance® 3 Power Tilt: 305mm – 560mm TRU-Balance® 3 Tilt & iLevel®: 305mm – 560mm |
| Seat Depth | Synergy®/TRU-Balance® 3 Static Seat: 300mm – 560mm TRU-Balance® 3 Power Tilt: 305mm – 560mm TRU-Balance® 3 Tilt & iLevel®: 305mm – 560mm |
| Seat to Floor Height | Synergy®/TRU-Balance® 3 Static Seat: 420mm – 470mm TRU-Balance® 3 Power Tilt: 440mm – 495mm TRU-Balance® 3 Tilt & iLevel®: 440mm – 495mm |
| Drive Wheels | Standard: 355.6mm solid Optional: 355.6mm pneumatic |
| Castors | Front: 152.4mm solid Rear: 152.4mm solid 200mm available |
| Manual Recline | Yes |
| Ground Clearance | 69mm |
| Turning Radius | 521mm with 152.4mm castors |
| Speeds | <9.6km/h | 5.6km/h with iLevel activated |
| Available Electronics | 120A Q-Logic 3 |
| Motor Packages | 2-Pole Mid-Wheel 6® |
| Battery Charger | 8A Off-board |
| Battery Size | NF-22, 55Ah |
| Battery Weight | 17.24kg each |
| Base Weight | 63kg with 152.4mm castors |
| SWL | 136kg |
Resources
Product Brochure
User Manual
Warranty Information
