Description

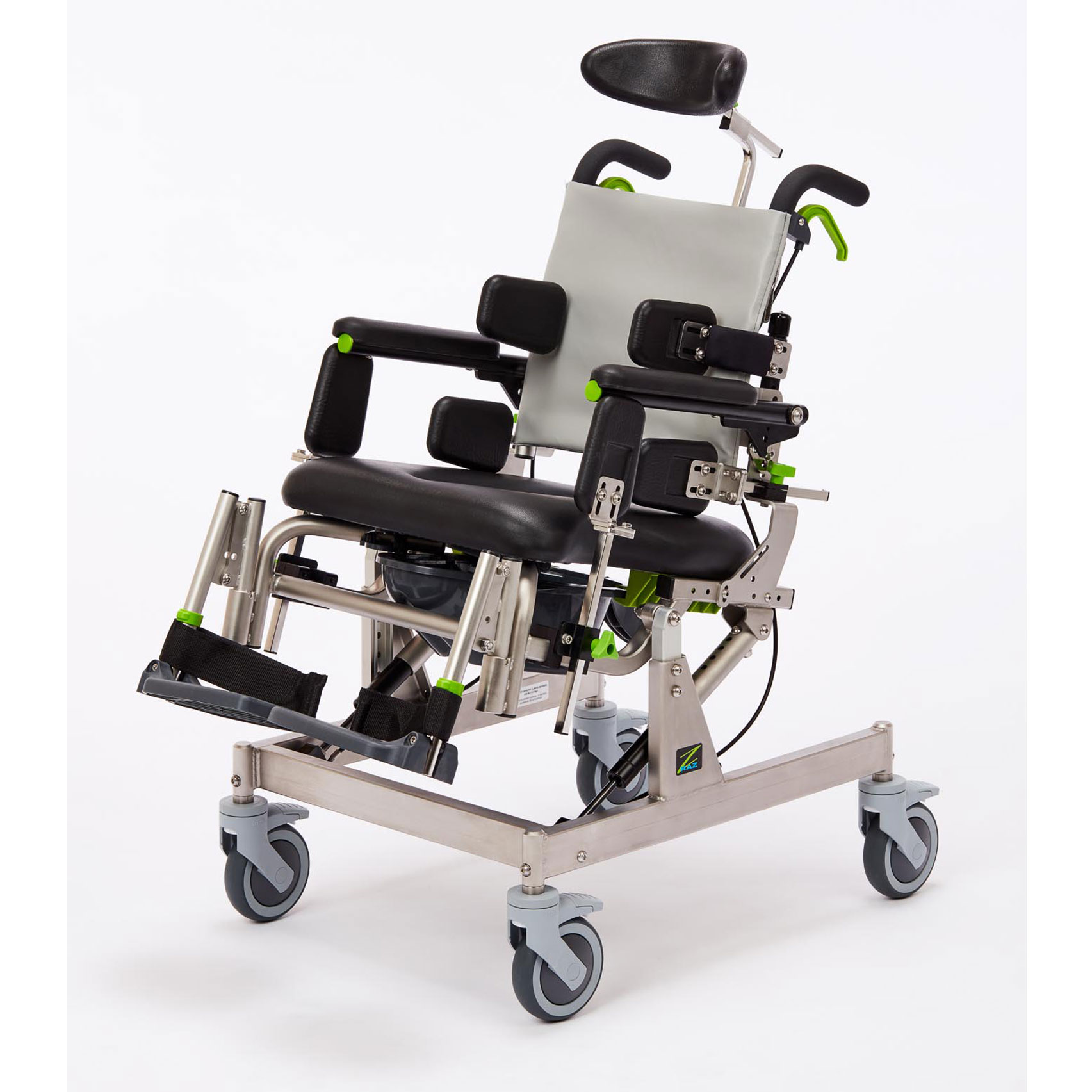

The Raz-CAT has all of the features of our Raz-AT but in a more compact size. For paediatrics, adolescents or smaller adults, the Raz-CAT provides a fit that is better suited to physically smaller clients.

  • The base and seat frames retain the 18” width of the Raz-AT so that the chair can still be positioned over a toilet.
  • The base frame has been shorted by 3”, which makes the chair more maneuverable.
  • The seat frame depth has been reduced and a depth-adjustable back offers depths from 12” to 15” (to front of frame) or up to 17” with the front of the seat overhanging the seat frame.
  • The standard seat has an elongated aperture that works with seat depths from 12” to 15”.
  • Custom seats are available.
  • The depth-adjustable back provides growth capability, an essential component for pediatrics.
  • Back frames can be ordered in widths 14”, 16” and 18”.
  • Available back heights are 15” and 18”.
  • Weight capacity: 115 kg
  • Frame width (seat and back frame): 46 cm/18″
  • Back frame widths: 35cm/14″, 40 cm/16″, 46 cm/18″
  • Overall width (with standard armpad): 55 cm/21.75″, 58 cm/23″, 46 cm/18″
  • Seat width (commode seat): 46 cm/18″
  • Back heights (top of seat to top of upholstery): 38cm/15″ or 46 cm/18″
  • Reclining backs (top of seat to top of upholstery): 38cm/15″ or 46 cm/18″
  • Seat depth (front of back post to front of seat): 28 – 40 cm/11″ or 16″
  • Overall length when upright: 81 cm (32″)
  • Clearance height under seat:
  • – with pan brackets: 16.75″, 17.75″, 18.75″, 19.75″, 20.75″ (42.5, 45, 47.5, 50, 53 cm)
  • – without pan brackets: 17.5″, 18.5″, 19.5″, 20.5″, 21.5″ (44.5, 47, 49.5, 52, 54.5 cm)
  • Armrest height above seat (20″ Adjusta-Back):
  • High Back:5.5″ 5.5″ – 8″ in ½” increments (14 – 20 cm)  15″ (38 cm)
  • High Back:6.5″ – 9″ in ½” increments (16.5 – 23 cm)           18″ (46 cm)
  • Seat-to-floor-height: 21.5″ – 25.5″ in 1″ increments (55 – 65 cm)
  • Product weight (with footrests): 25 kg
  • Frame and hardware material: Stainless steel (lifetime warranty against corrosion)
Additional information
Weight 100 kg
Dimensions 50 × 50 × 80 cm
