Meyra® XXL and XXL HD

SKU: MC2-1

Rear wheel drive bariatric power wheelchair.
Request a Quote

    Request a Quote

    Request product information or a quote by filling out the form below and we will get back to you as soon as possible.

    Please upload your completed Rehab Referral Assessment Form (if applicable) and/or completed NDIS Service Agreement Form (if applicable) by clicking a button below (one file per button).

    Please complete a Referral Assessment Form and submit it with your quote request. You will be contacted by a product specialist.



    The Meyra XXL and XXL HD don’t back down.

    Built to move bariatric users, with a great, stable and sturdy design, the XXL and XXL HD are tough.

    Thanks to the power tilt-in-space and recline function, as well as the choice of powered separate or centre mounted footrests, you can be tough and comfortable.

    Features and Benefits
    • Ideal for those with larger body frames, supporting up to 200kg: XXL | 250kg: XXL HD
    • Equipped with powerful motors for fast and efficient mobility: 2 x 300W or 2 x 350W motor options
    • Power seat tilt and power backrest recline options available for pressure relief and health benefits
    • Rear Wheel Drive for a smooth ride with larger casors and high top speed
    • Built with reinforced components for strength and stability
    • Wide range of standard and power options, including power tilt-in-space and recline function, and powered separate or centre mounted footrests
    • LED lighting system for safe navigation in low light conditions
    • Customisable with five frame and accent colours

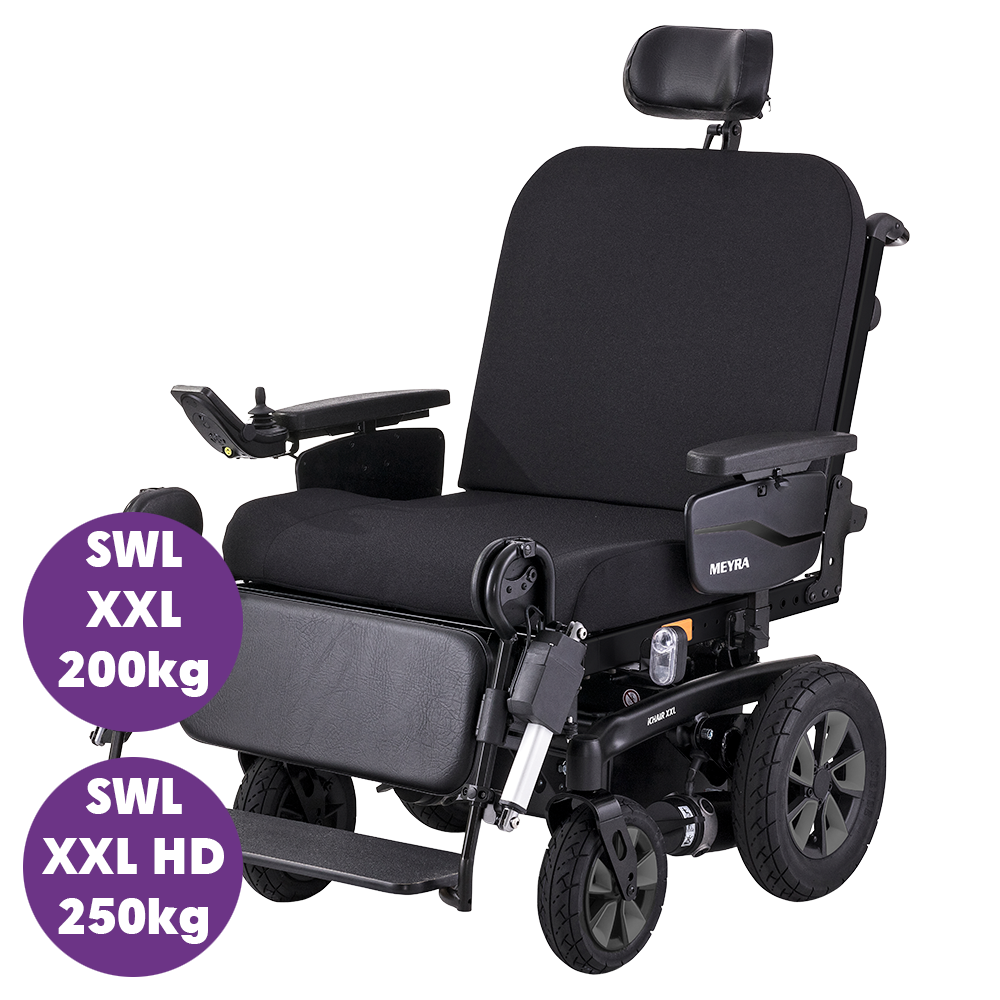

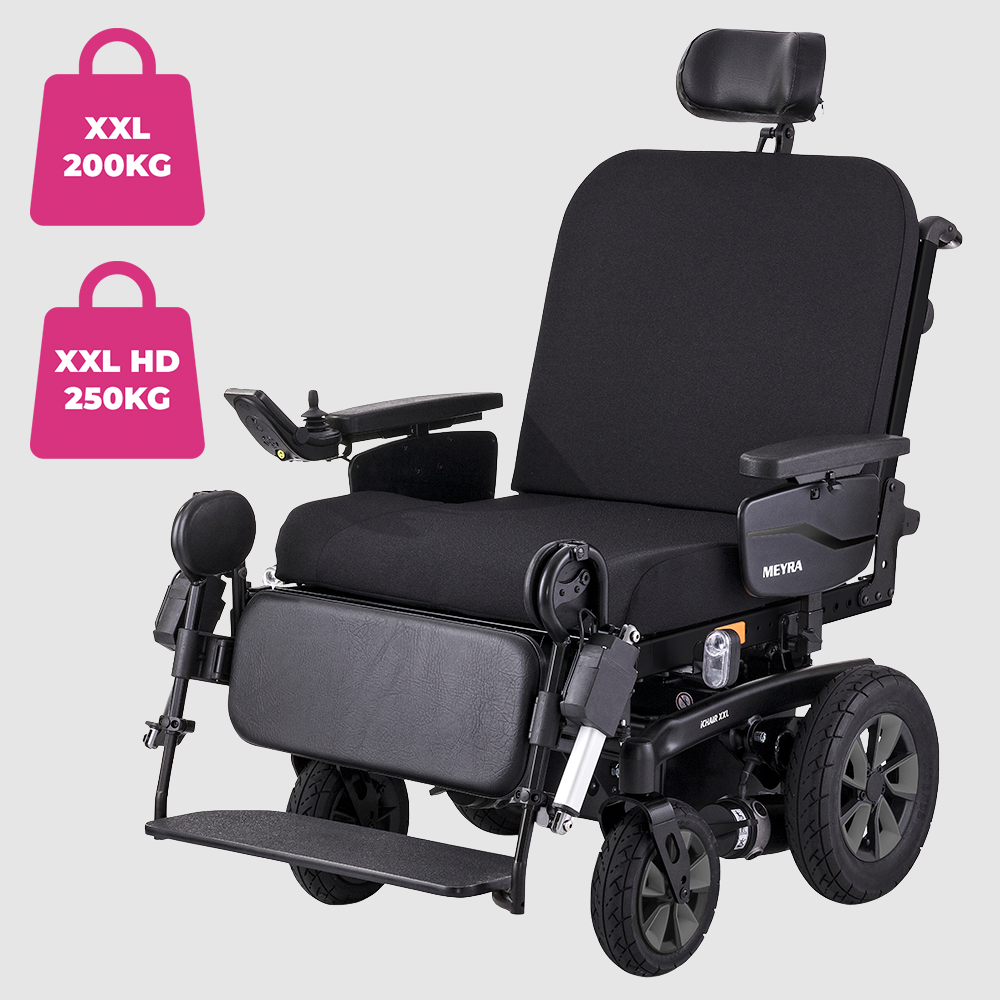

    User Weight up to 250kg

    The XXL and XXL HD are perfect bariatric wheelchairs, supporting up to 200kg for the XXL model and up to 250kg for the XXL HD.

    The XXL and XXL HD’s powerful motors mean you won’t sacrifice speed and mobility. Choose from either 2 x 300W motors or 2 x 350W motors to power you through your day.

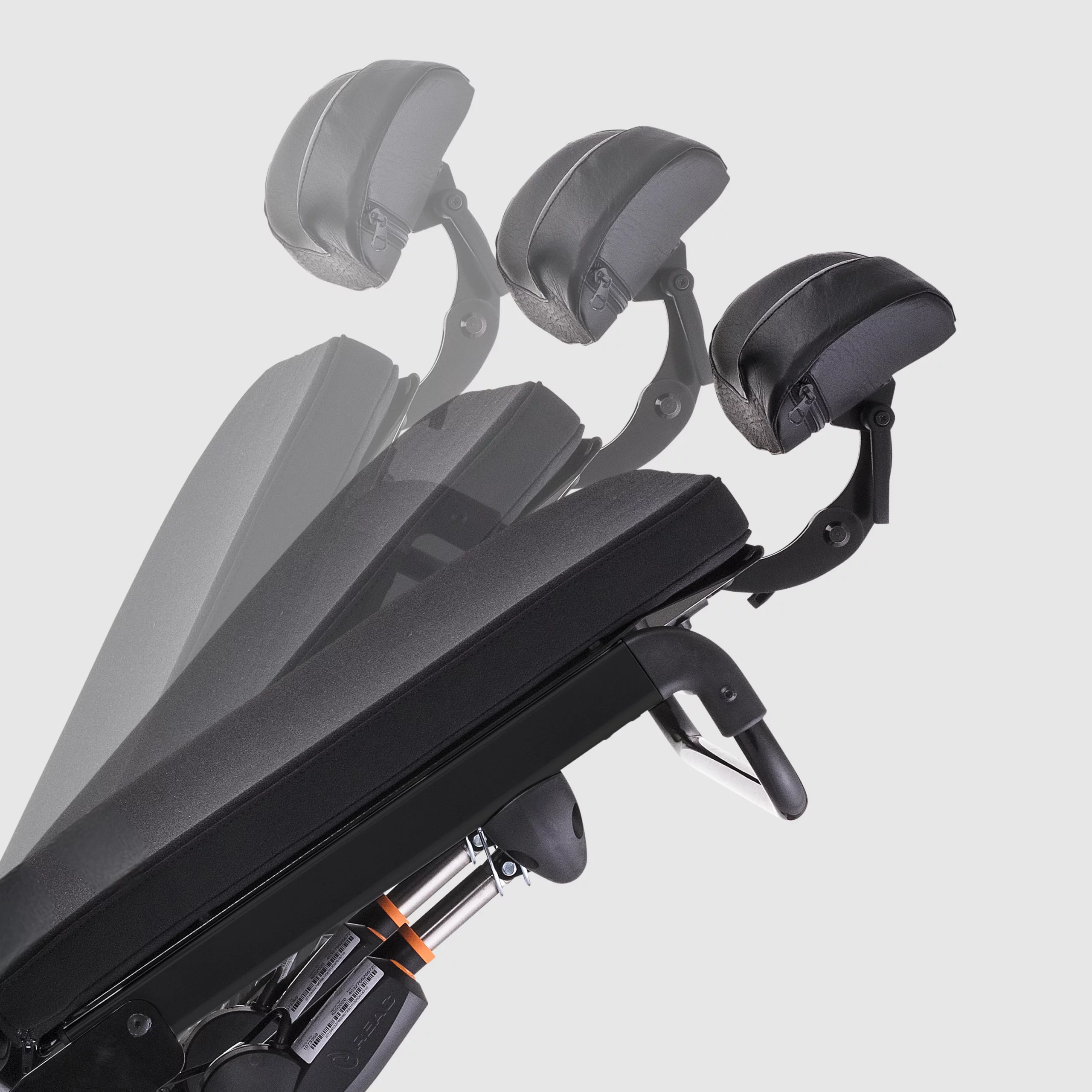

    Power Tilt & Recline

    Get the pressure relief you need with the XXL and XXL HD’s 18° power seat tilt and 50° power backrest recline.

    Tilt and recline systems have numerous health benefits, including reducing the risk of pressure injuries, reducing shear force on the base of the spine, managing oedema, facilitating transfers, and reducing fatigue.

    A tilt-and-recline system makes you more comfortable and reduces back pain, allowing you to be more productive and get more out of your day.

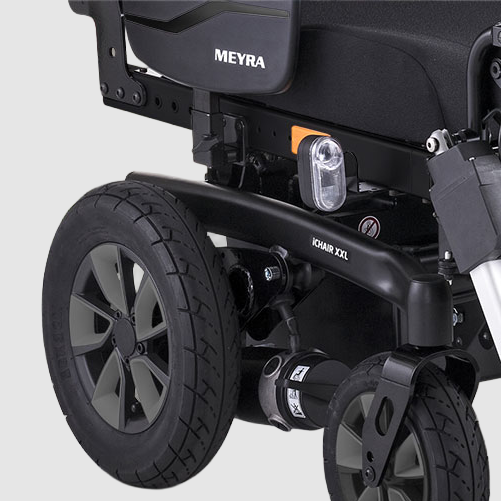

    Rear Wheel Drive

    With the XXL and XXL HD’s rear wheel drive configuration, you don’t need to worry about what’s happening behind you, as most of the chair is directly below or in front.

    Rear-wheel drive chairs have a smooth ride thanks to larger casters.

    Rear-wheel drive chairs have the highest top speed among configurations and are easier to handle at higher speeds.

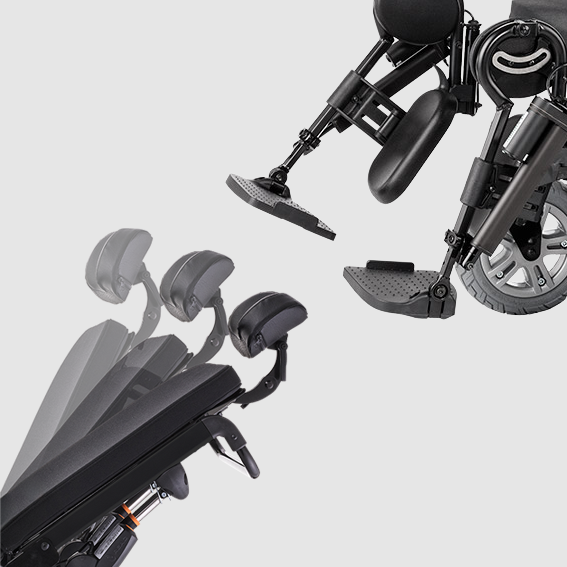

    Tough with options

    The XXL and XXL HD are built with reinforced components for strength and stability, and offer a wide range of standard and power options.

    Meyra offers lots of options, including power tilt-in-space and recline functions, as well as the choice of powered separate or centre-mounted footrests.

    Tough but comfortable.

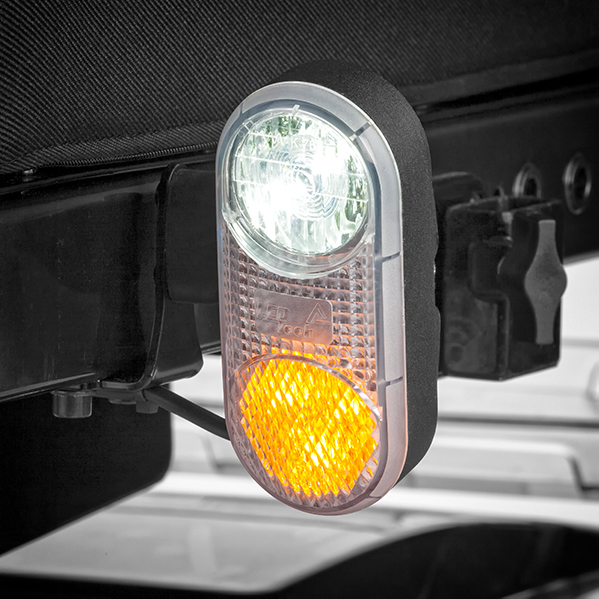

    LED Lighting System

    The XXL and XXL HD’s LED lighting system means you can light your way, night or day.

    LEDs are bright, long lasting, and power efficient, so they won’t drain your battery.

    A power chair lighting system improves visibility for you and others, making your ride safer.

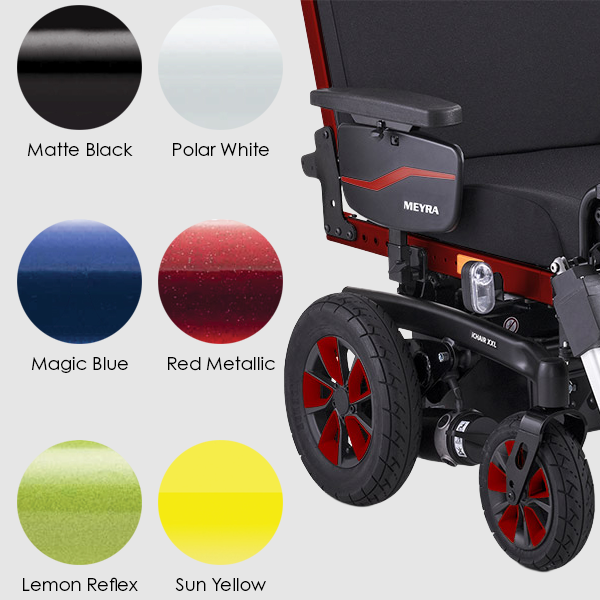

    Frame & Accent Colours

    Make the XXL or XXL HD your own!

    There are five frame and accent colours to choose from: polar white, magic blue, red metallic, lemon reflex and sun yellow.

    The colour accented sections are the seat tubes, back tubes, side panels, two piece legrest and rim inserts.

    Compliance

    AS/NS 3695.2.2013

    Warranty

    Frame: 5 years | Scissor Mechanism: 2 years

    Specifications
    Length 1150mm with legrests
    850mm without legrests
    Width 670mm
    Height without Headrest 1020mm – 1150mm
    Transport Length 850mm
    Transport Height Minimum 650mm
    Seat Width 530mm – 700mm
    Seat Depth 430mm – 600mm
    Seat Height | Front with | without cushion 420mm – 470mm | 460mm – 560mm | 530mm – 630mm
    Armrest Height 170mm – 280mm
    Leg Length Adjustment 370mm – 510mm
    Wheels | Front 260mm x 70mm
    Wheels | Rear 356mm x 75mm
    Mechanical Tilt in Space 0º to 10º
    Electric Tilt in Space 0º to +18º
    Mechanical Backrest Recline -10º to +30º
    Power Backrest Recline -10º to +50º
    Turning Radius 950mm
    Permitted Gradient 13º
    Maximum Obstacle Height 60mm
    Range 30km – 35km 70Ah batteries
    Driving Speeds 6kmph | 10kmph
    Motor Options 2 x 300W | 2 x 350W
    Empty Transport Weight 100kg
    SWL 200kg | 250kg
    Compare
